Logan X90 - Location of Components; Petrol Injection

17B-1
PETROL INJECTION

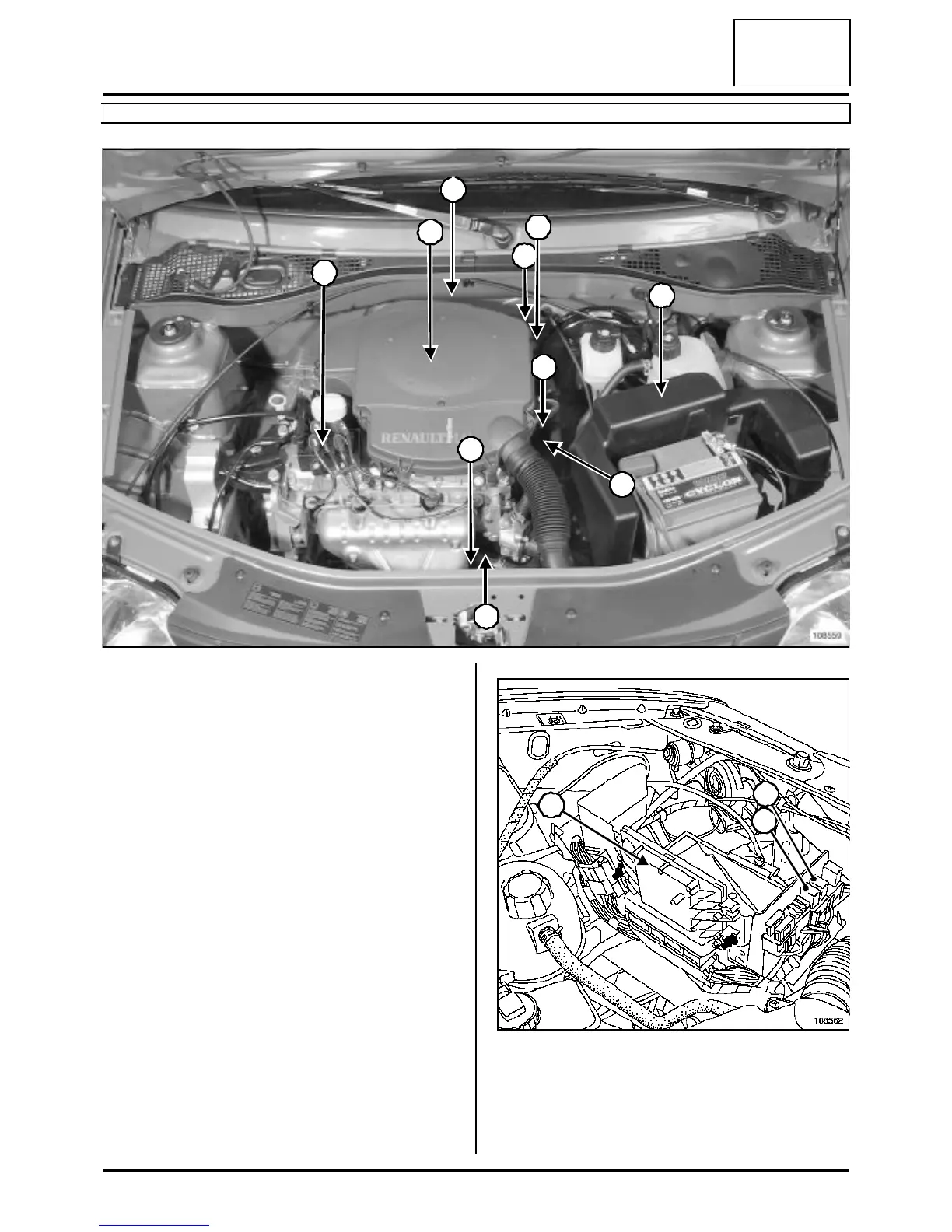

Location of components
K7J, and 710
17B
108559
10
9
8
7
6
5
4
3
2
1
(1) Ignition coil unit
(2) Air filter
(3) Throttle valve
(4) Air temperature sensor
(5) Air pressure sensor
(6) Injection computer
(7) Oil pressure sensor
(8) Upstream oxygen sensor
(9) Coolant temperature sensor
(10) Engine position and speed sen-
sor
108562
(6) Injection computer
11
6
12
