19A-9
COOLING SYSTEM
Cooling radiator
K7J or K7M, and 710, and AIR CONDITIONING
19A
REMOVAL
Mount the vehicle on a two-post lift.
Remove the engine undertray.
Drain the cooling circuit via the lower radiator hose
using tool (Mot. 1202-01) or (Mot. 1448) (see 19A,
Cooling, Draining - Filling the cooling circuit).

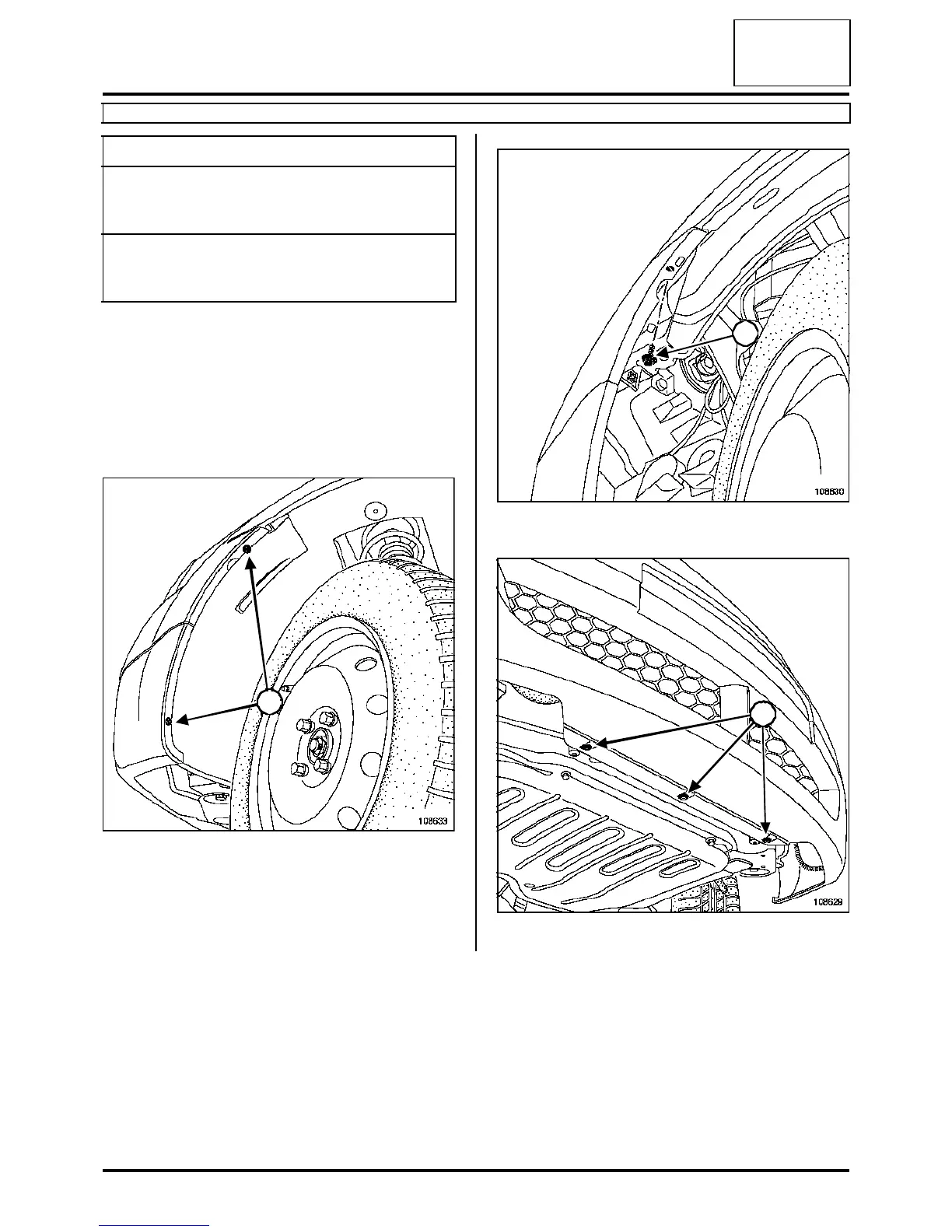

Remove bolts (1).
Partially remove the front wheel arch liners.
Remove bolts (2).
Remove bolts (3).
Essential special tooling
Mot. 1202-01 Clip pliers for cooling
system hose clips
(large model)
Mot. 1448 Remote operation
pliers for cooling sys-
tem hose clips
108633
1
108630
108629
2
33
