Logan X90 - Sump

10A-31
ENGINE AND LOWER ENGINE ASSEMBLY
Sump
L90, and K7J, and 710
10A
REMOVAL
Place the vehicle on a two-post lift.
Remove:
-the engine undertray,
-the bumper mounting bolts under the sub-frame.
Drain the engine oil.
Remove:
- the engine tie-bar,
- the front wheels,
- the lower ball joints,
- the catalytic converter (see 19B, Exhaust, Cataly-
tic converter),
- the two mounting bolts from the steering rack.
Attach the steering rack to the body.

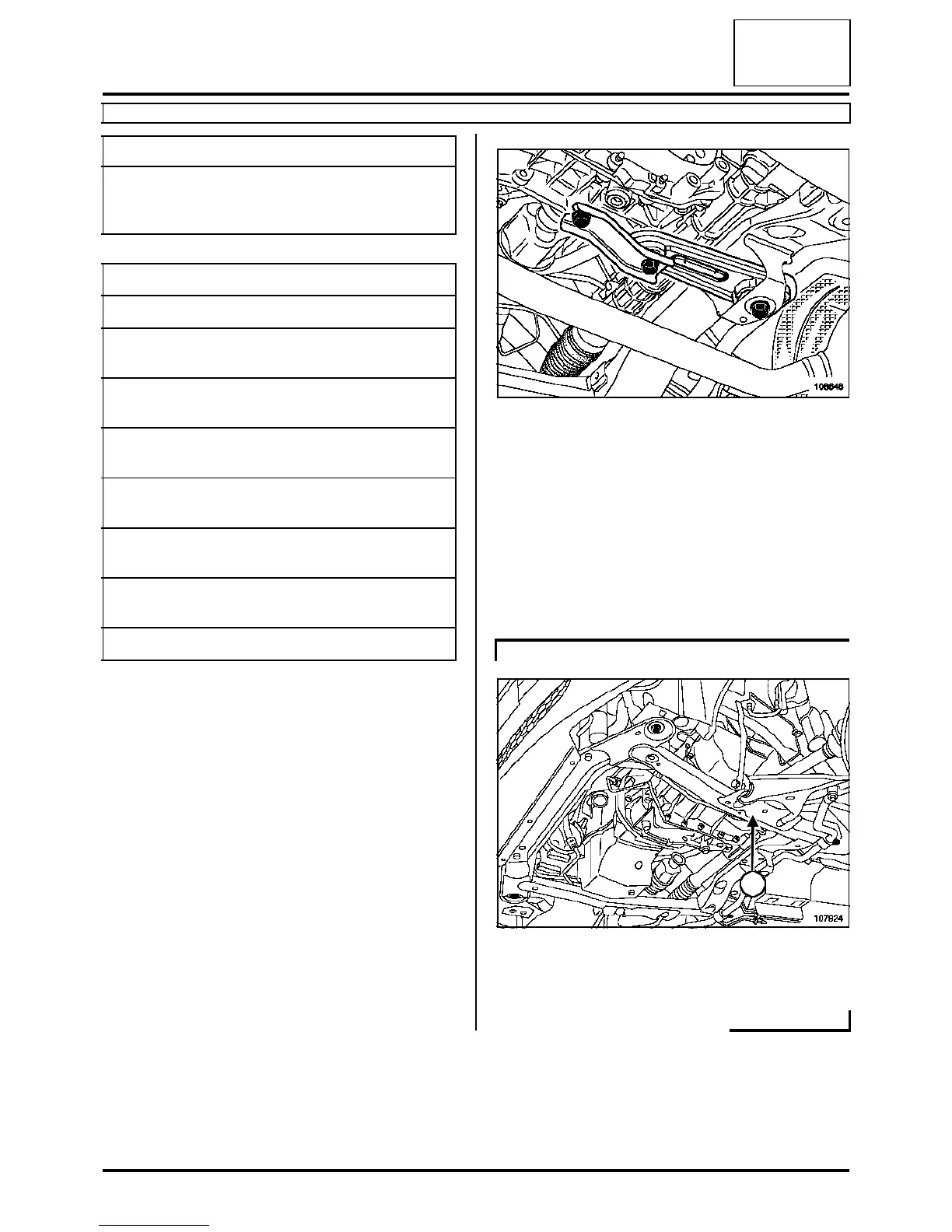

Remove mounting bolt (1) of the power assisted
steering pipe on the top of the sub-frame.
Essential special tooling
Tav. 1747 Threaded rods for
removing the sub-
frame
Tightening torquesm
sump mounting bolts 1.4 daNm
engine to gearbox cou-
pling bolts
4.4 daNm
sub-frame mounting
bolts
(10.5 daNm)
steering rack mounting
bolts
10.5 daNm
sub-frame tie-rod upper
mounting bolts
2.1 daNm
sub-frame tie-rod lower
mounting bolts
6.2 daNm
engine tie-bar mounting
bolts
10.5 daNm
wheel bolts 10.5 daNm
108648
DIRECTION ASSISTEE
107924
1
