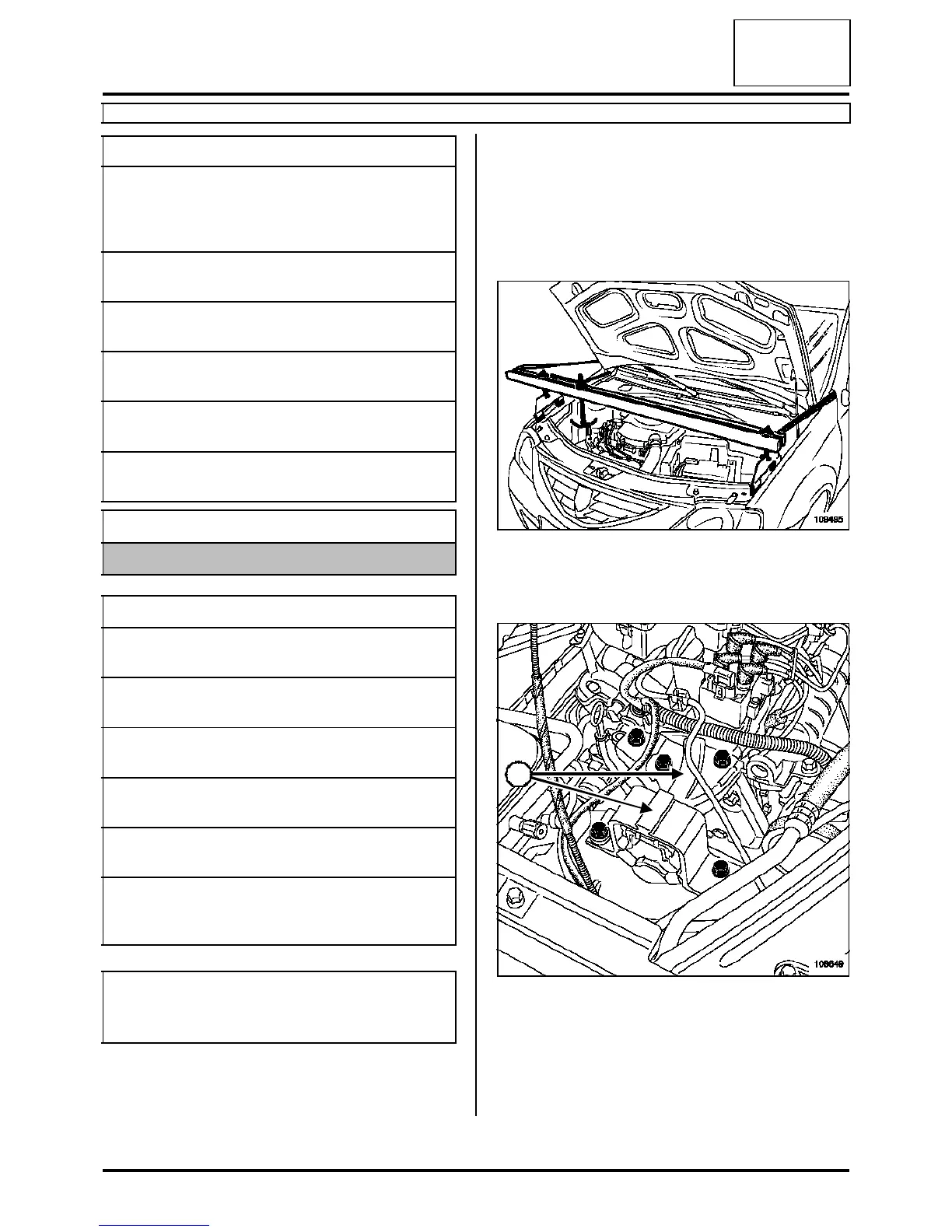

11A-19
TOP AND FRONT OF ENGINE
Timing belt
L90, and K7J, and 710
11A
REMOVAL
Place the vehicle on a two-post lift.
Remove:
- the engine undertray,
- the accessories belt (see 11A, Top and front of
engine, Accessories belt ).
- the crankshaft accessories pulley by locking the
flywheel using a screwdriver.
Fit engine support tool (Mot. 1453) with the retaining
belt, by taking the timing end lifting eye as an ancho-
ring point.
Remove suspended engine mounting (1).
Essential special tooling
Mot. 1453 Multiple-adjusting
engine mounting sup-
port with retaining
straps
Mot. 1489 Top dead centre loca-
ting pin
Mot. 1501 Timing belt prestres-
sing tool
Mot. 1135-01 Timing gear belt ten-
sioner tool
Mot. 1505 Belt tension setting
tool (frequency meter)
Mot. 1715 Belt tension setting
tool (frequency meter)
Essential equipment
low torque wrench
Tightening torquesm
the tension wheel moun-
ting nut
5 daNm
crankshaft pulley moun-
ting bolt
3 daNm + 80˚ ±±
±±
5
M10 mounting bolts of
the upper timing cover
4.4 daNm
M8 mounting bolts of the
upper timing cover
2.2 daNm
lower timing cover
mounting bolts
0.8 daNm
suspended engine
mounting cover moun-
ting bolts
6.2 daNm
WARNING
Never turn the engine against its operating direc-
tion.
109495
108649
1
