Logan X90 - Throttle Body Potentiometer

17B-26
PETROL INJECTION
Throttle body potentiometer
K7J or K7M, and 710
17B
REMOVAL

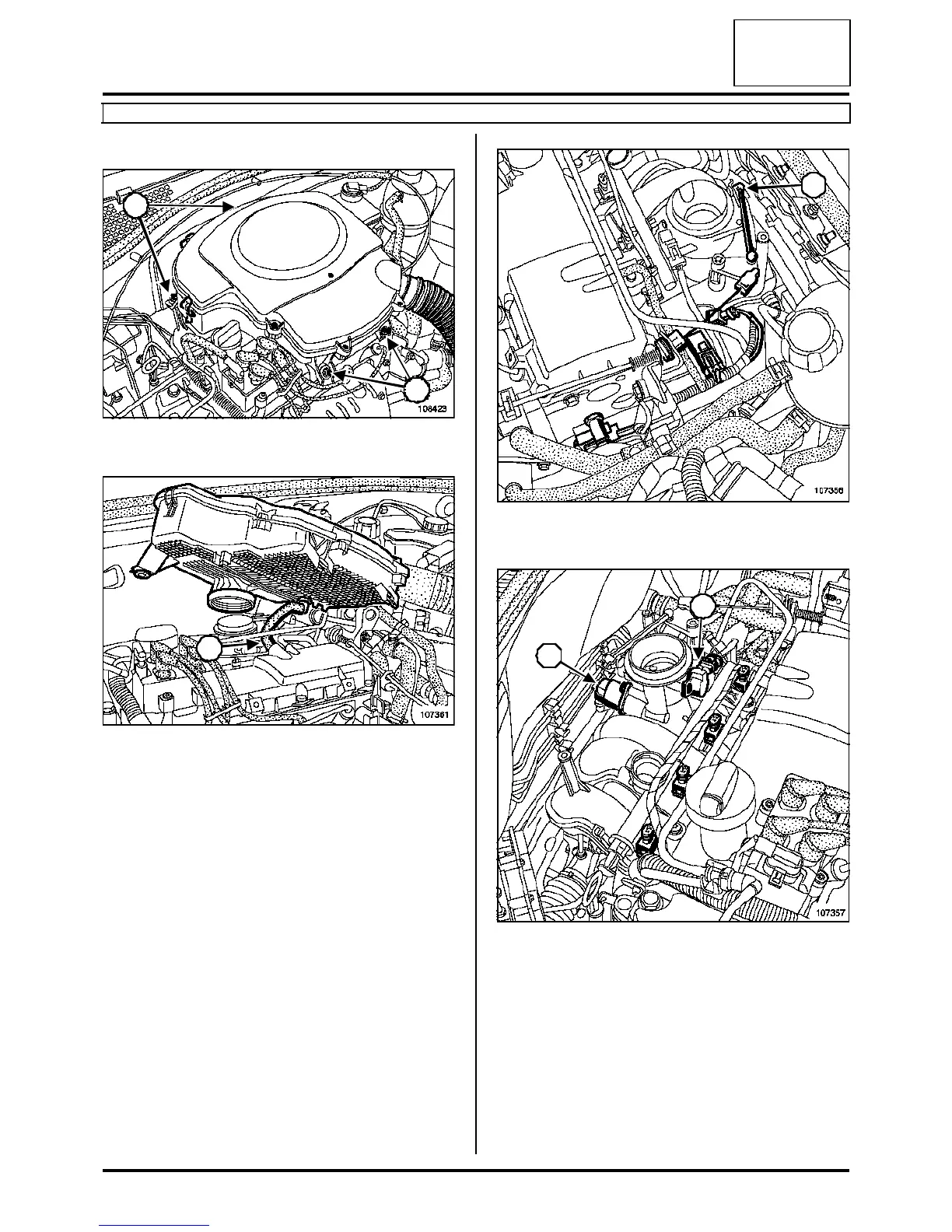

Remove air filter unit mounting bolts (1).
Disconnect:
-the oil vapour rebreather pipe (2),
-the air inlet sleeve.
Remove the air filter unit.
Unclip ball joint (3).
Disconnect:
- potentiometer connector (4),
- the idling speed stepper motor connector (5).
Remove:
- the throttle valve by tilting it,
- potentiometer mounting bolts (4),
- the potentiometer.
108423
107361
1
1
2
107356
107357
3
5
4
