Logan X90 - Alternator

16A-2
STARTING - LOAD
Alternator
K7J, and 710, and DIRECTION MANUELLE
16A
REMOVAL
Remove:
-the accessories belt(s) (see 11A, Top and front of
engine, Accessories belt),
-the engine undertray.
Disconnect the wiring harnesses from the alternator.

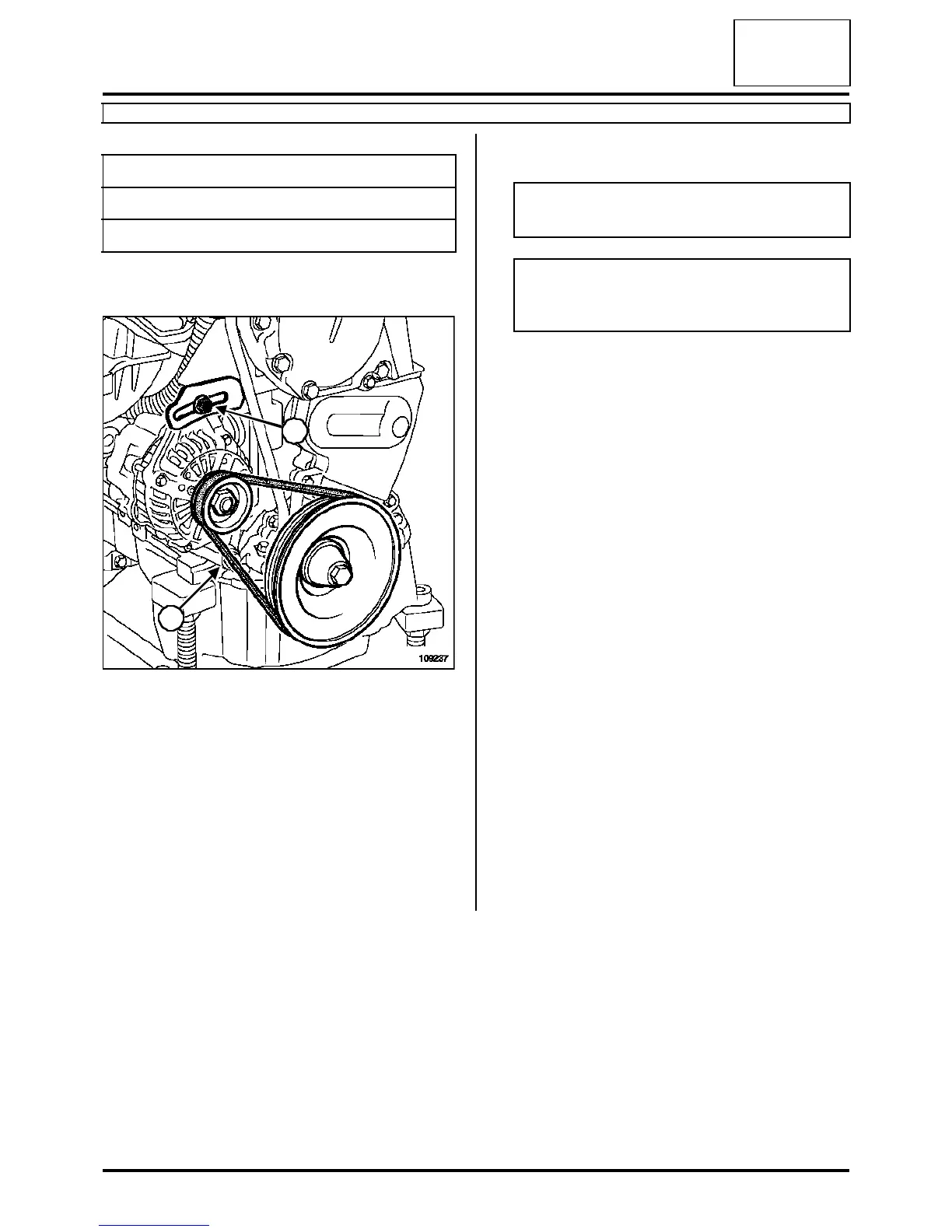

Remove (from below):
-the mounting bolt (1),
-mounting bolt (2),
-the alternator.
REFITTING
Proceed in the reverse order to removal.
Refit the accessories belt(s) (see 11A, Top and
front of engine, Accessories belt),
Torque tighten:
- the alternator mounting bolt (2.1 daNm),
- the alternator mounting bolt (4.4 daNm).
Tightening torquesm
alternator mounting bolt 2.1 daNm
alternator mounting bolt 4.4 daNm
109237
1
2
WARNING
Replace any belt that has been removed.
WARNING
When replacing the belt, be sure to replace the
tension wheels and idler pulleys.
