10A-44
ENGINE AND LOWER ENGINE ASSEMBLY
Multifunction support
L90, and K7J, and 710, and DIRECTION MANUELLE, and AIR CONDITIONING
10A
REMOVAL
Place the vehicle on a two-post lift.
Remove the engine undertray.

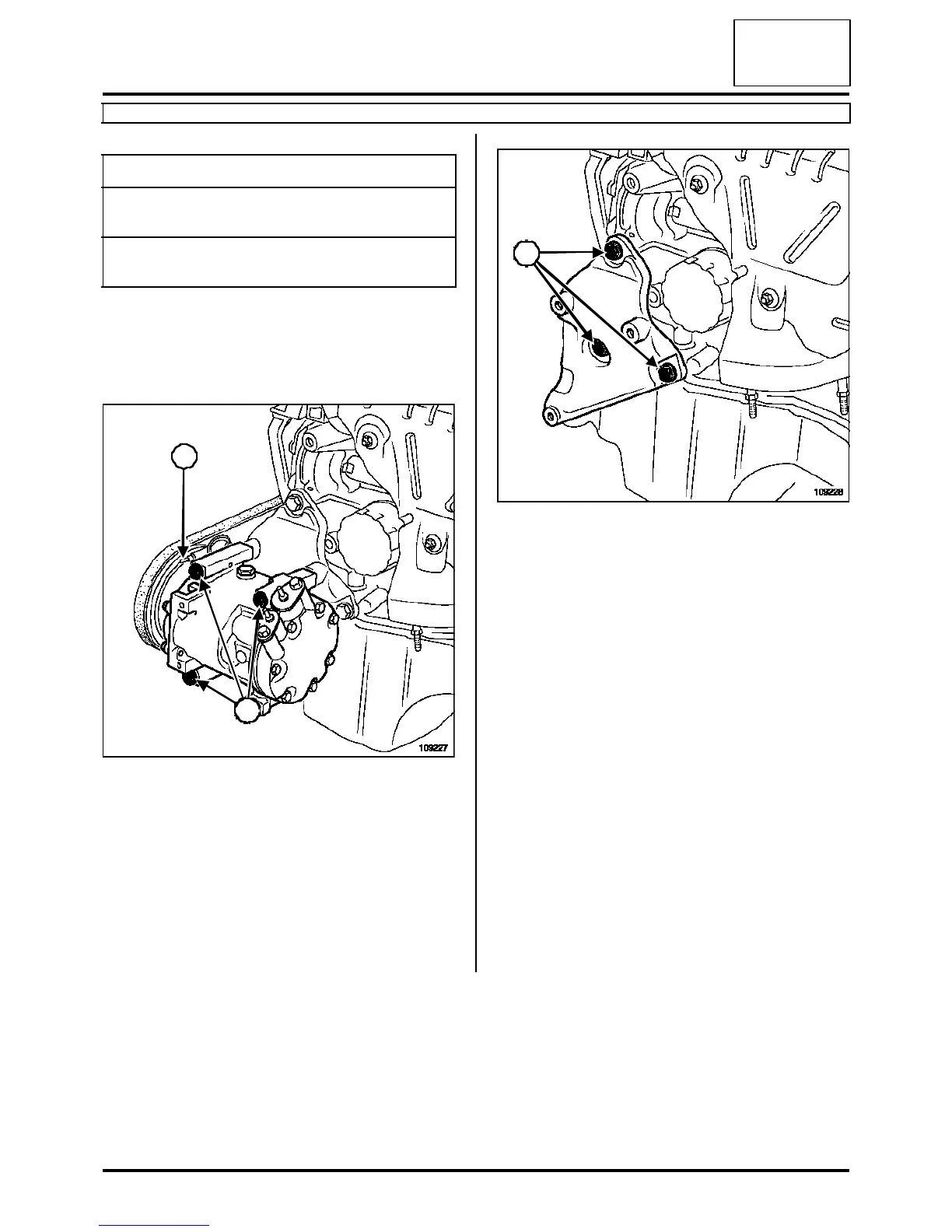

Disconnect the connector (1) of the air conditioning
compressor.
Remove:
-the air conditioning compressor belt (see 11A, Top
and front of engine, Accessories belt),
-the three mounting (2) bolts of the air conditioning
compressor.
Attach the air conditioning compressor to the sub-
frame.
Remove:
- the mounting (3) bolts of the multifunction support,
- the multifunction support.
REFITTING
Position the multifunction support.
Torque tighten:
- the multifunction support mounting bolts (4.4
daNm),
- the air conditioning compressor mounting bolts
(2.1 daNm).
Refit the air conditioning compressor belt (see 11A,
Top and front of engine, Accessories belt).
Proceed in the reverse order to removal.
Tightening torquesm
multifunction support
mounting bolts
4.4 daNm
air conditioning com-
pressor mounting bolts
2.1 daNm
109227
22
1
109228
33
