10A-45
ENGINE AND LOWER ENGINE ASSEMBLY
Multifunction support
L90, and K7J, and 710, and DIRECTION ASSISTEE, and AIR CONDITIONING
10A
REMOVAL
Place the vehicle on a two-post lift.
Remove:
- the engine undertray,
-the alternator (see 16A, Starting - Charge, Alter-
nator).
Remove:

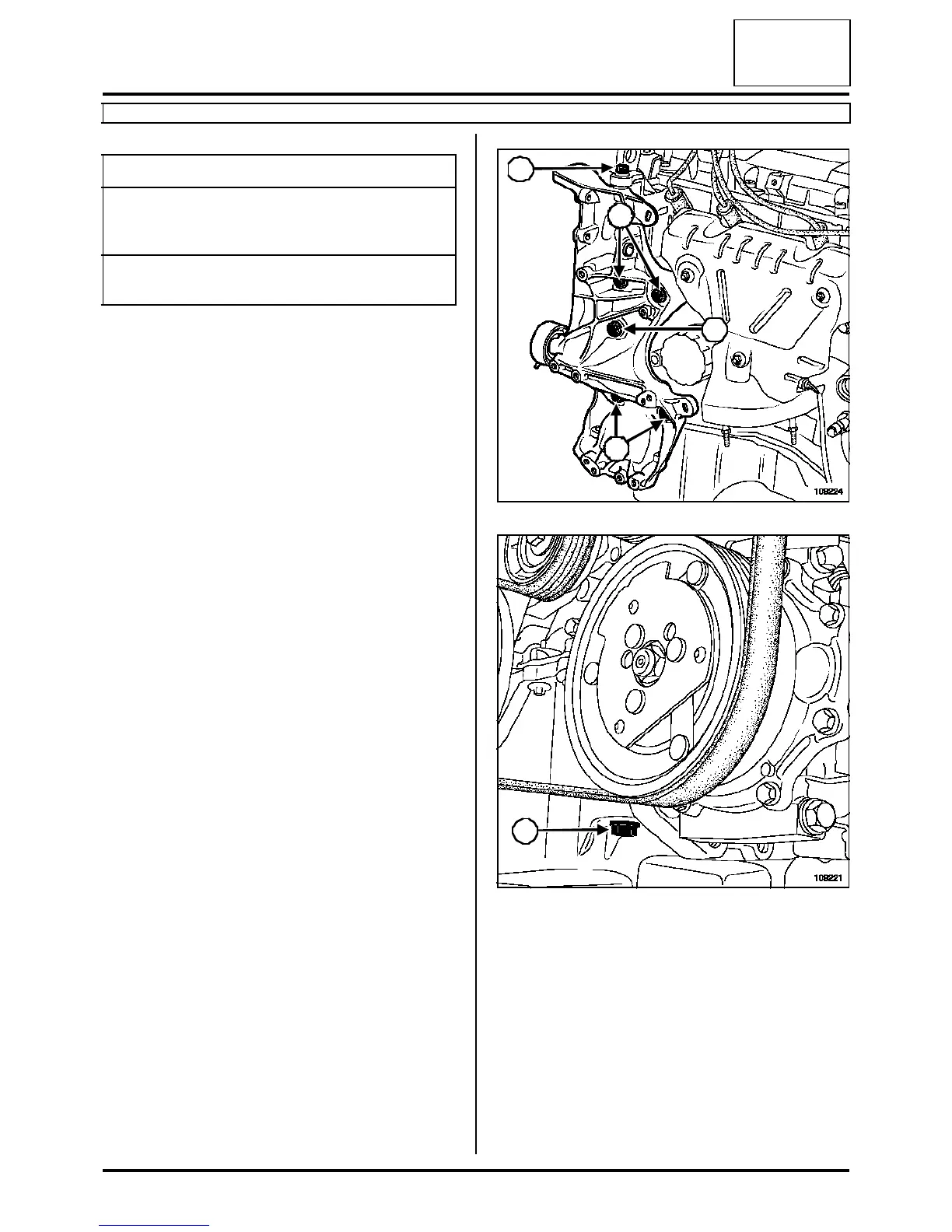

- the mounting bolts (1) and (2) of the multifunction
support,
- the multifunction support.
REFITTING
Position the multifunction support.
Torque tighten:
- the M10 mounting bolts of the multifunction
support (4.4 daNm)(1),
Tightening torquesm
M10 mounting bolts of
the multifunction sup-
port
4.4 daNm
M8 mounting bolts of the
multifunction support
2.1 daNm
109224
109221
2
1
1
1
2
