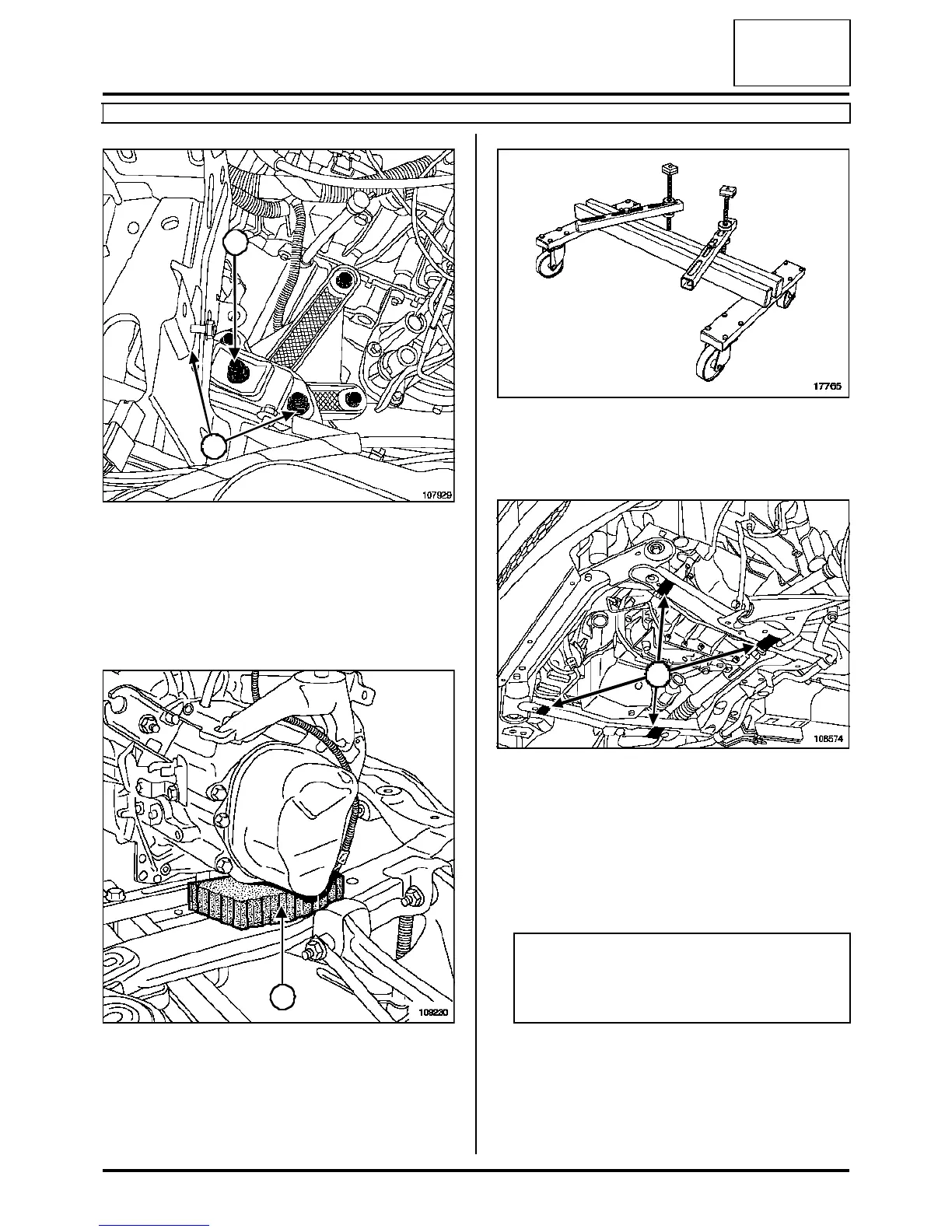

Logan X90 - Page 19

10A-15
ENGINE AND LOWER ENGINE ASSEMBLY
Engine/gearbox assembly
L90, and K7J, and 710
10A
Remove mounting nut (36) of the gearbox cover on
the gearbox rubber mounting.
Strike the gearbox mounting stud with a copper ham-
mer to uncouple « engine and gearbox » assembly
from the body.
Remove gearbox rubber mounting (37).
Put a shim under the gearbox on the left-hand side
of the sub-frame:
-put a rubber shim under gearbox (38),
-lower the gearbox to fix it in place on the left-hand
side of the sub-frame.
Place tool (Mot. 1390) under the sub-frame.
Lower the vehicle down onto the four pads of tool
(Mot. 1390).
Adjust the pad position to ensure the sub-frame is
stable on tool (Mot. 1390).
Bring the pads into contact with the underside of the
sub-frame in (39).
Lift the vehicle to separate « engine and gearbox/dri-
veshafts/half-axle/sub-frame » assembly from the
body.
107929
109230
36
37
38
17765
108574
WARNING
Ensure that no component obstructs the move-
ment of the body around the « engine and
gearbox » assembly.
3939
