19A-11
COOLING SYSTEM
Cooling radiator
K7J or K7M, and 710, and AIR CONDITIONING
19A

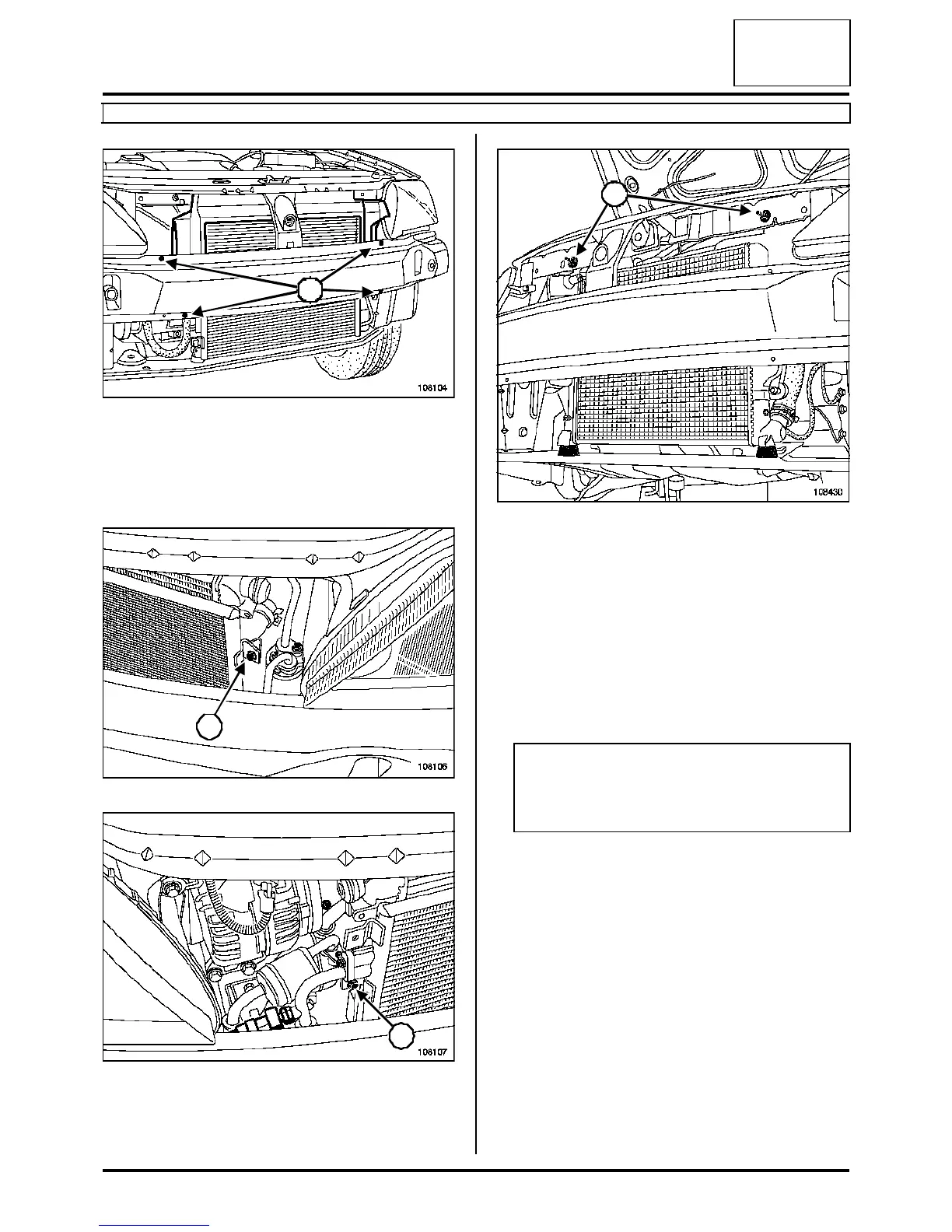

Remove:
-mounting pins (8) from the air deflector,
-the air deflector.
Remove condenser mounting bolts (9) from the ra-
diator.
Attach the condenser to the upper cross member.
Remove radiator mounting nuts (10).
Remove:
- the upper radiator mounting brackets,
- the fan assembly,
- the radiator.
REFITTING
Proceed in the reverse order to removal.
Fill and bleed the cooling circuit (see 19A, Cooling,
Draining - Filling the cooling circuit).
108104
108106
108107
88
9
9
108430
WARNING
Ensure that the fins of the cooling radiator and
the condenser are not damaged as they are
removed.
