19C-4
RESERVOIR
Fuel tank
K7J or K7M, and 710
19C

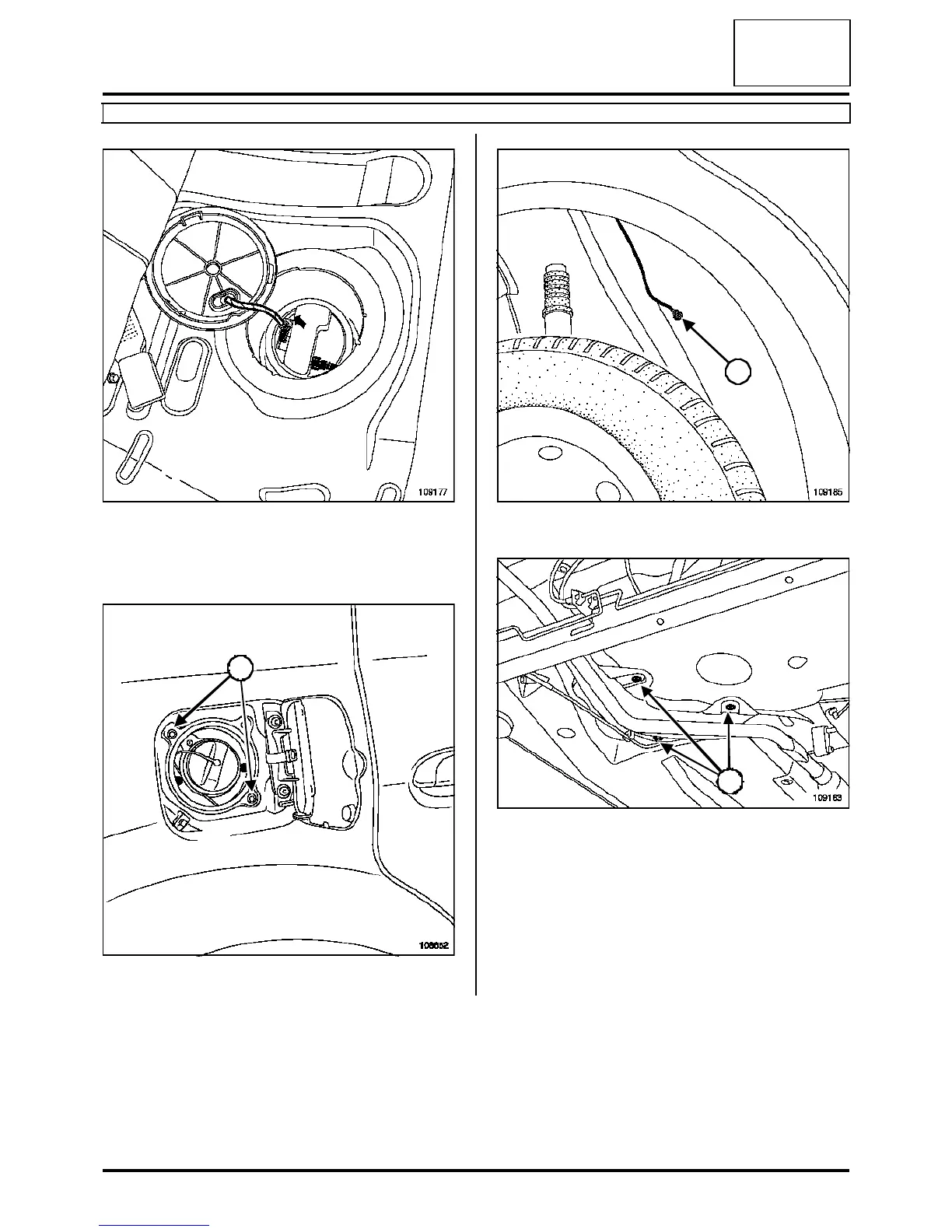

Remove the flap in the floor panel providing access
to the pump/gauge/filter assembly.
Disconnect the fuel pump connector.
Remove the filler neck mounting bolts (1).
Remove body earth cable (2).
Remove:
- heat shield attachment pins,
- the heat shield.
Remove the engine undertray.
109177
108652
1
109185
109183
2
33
