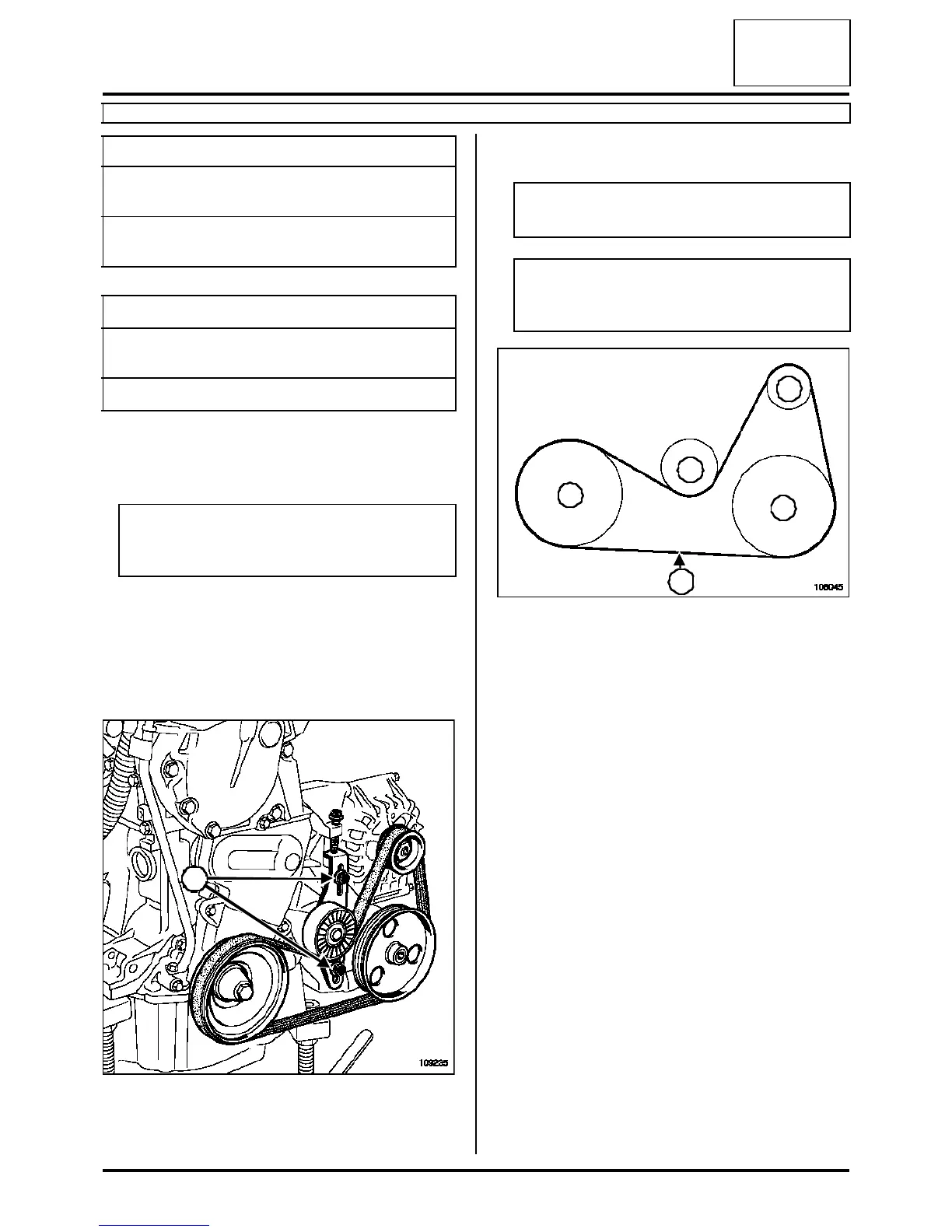

11A-13
TOP AND FRONT OF ENGINE
Accessories belt
L90, and K7J, and 710, and DIRECTION ASSISTEE, and BASIC HEATING
11A
REMOVAL
Mount the vehicle on a two-post lift.
Disconnect the battery, starting with the negative ter-
minal.
Remove the front right-hand wheel.
Slacken the tension wheel mounting bolts (1).
Remove the accessories belt.
REFITTING
Essential special tooling
Mot. 1505 Belt tension setting
tool (frequency meter)
Mot. 1715 Belt tension setting
tool (frequency meter)
Tightening torquesm
tension wheel mounting
bolts
2.1 daNm
wheel bolts 10.5 daNm
WARNING
Never run the engine against its operating direc-
tion.
109235
1
WARNING
Replace any belt that has been removed.
WARNING
The tension wheel must be replaced when the
belt is replaced.
106045
(2)Crankshaft
(3) Alternator
(4)Power assisted steering pump
(5) Tension wheel
(6) Measuring point
5
4
3
2
6
