TOP AND FRONT OF ENGINE
Cylinder head gasket
L90, and K7M, and 710
11A

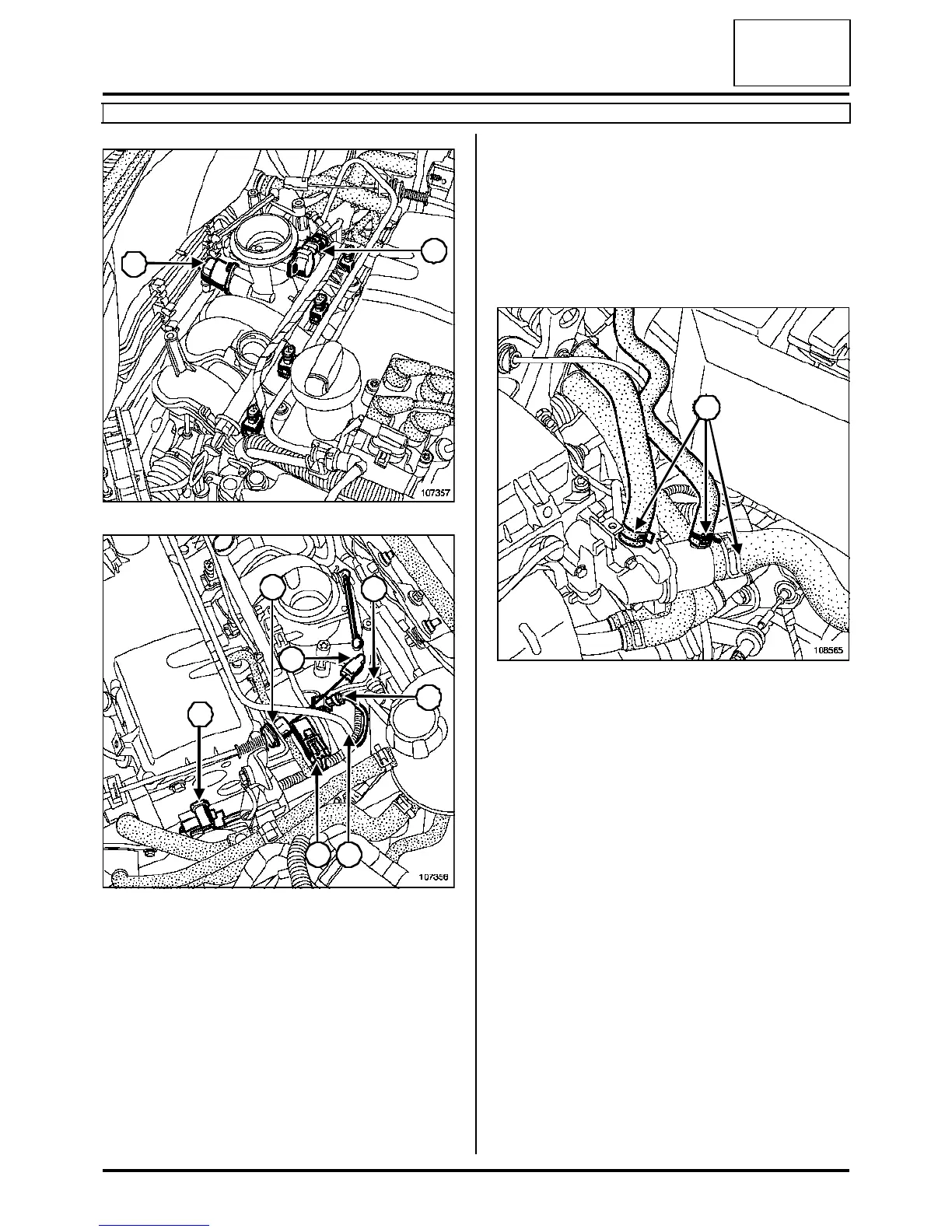

Disconnect:
-the injector connectors,
-connector (7) from the idle speed control motor,
-connector (8) from the throttle valve position sen-
sor,
-connector (9) from the inlet air temperature sensor,
-connector (10) from the supply air depression sen-
sor,
-connector (11) from the coolant temperature sen-
sor,
- pipe (12) from the brake servo on the inlet manifold,
- petrol vapour rebreather pipe (13) from the inlet
manifold.
Disconnect:
- ball joint (14) from the throttle valve control cable,
- cable sleeve stop (15) from the throttle valve control
cable.
Disconnect the three cooling hoses (16) with tool
(Mot. 1202-01), tool (Mot. 1202-02) or tool (Mot.
1448).
