Connecting a PTZ Camera
21
You can connect RS-485 PTZ cameras (not included) to the RS485 ports on the rear
panel.

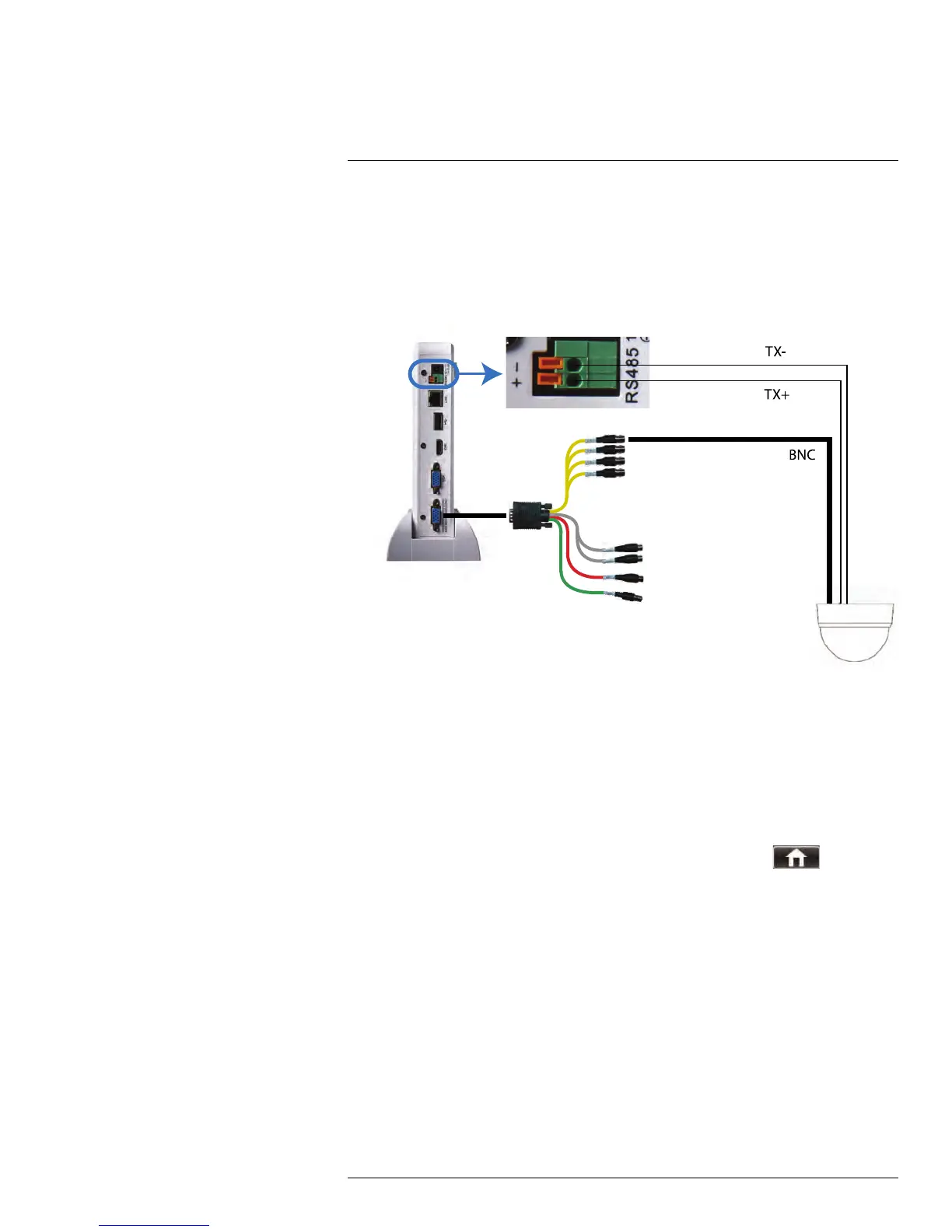

To connect a PTZ camera to the system:
1. Connect the Transmit+ (TX+) Cable to the + side of the RS485 port on the rear panel.
2. Connect the Transmit- (TX-) Cable to the - side of the RS485 port on the rear panel.
3. Connect the video cable to a V-IN port on the Octopus cable.
0
TX+
TX-
BNC
21.1 Configuring PTZ Settings
Before you can use the PTZ controls, you must enter your camera’s PTZ protocol details
into the DVR.
Prerequisite:
• Obtain the PTZ protocol details for your camera. Check your camera’s instruction man-
ual for details.
To enter PTZ camera settings in the DVR:
1. Right-click to open the Menu Bar and click the Main Menu button (
). Enter the
system password (default: 000000).
2. Click Device and select the PTZ tab.
#LX400015; r. 1.0/13705/13705; en-US
132
