Lorex LH040400 User Manual

Basic Setup (LH040 Series)
6

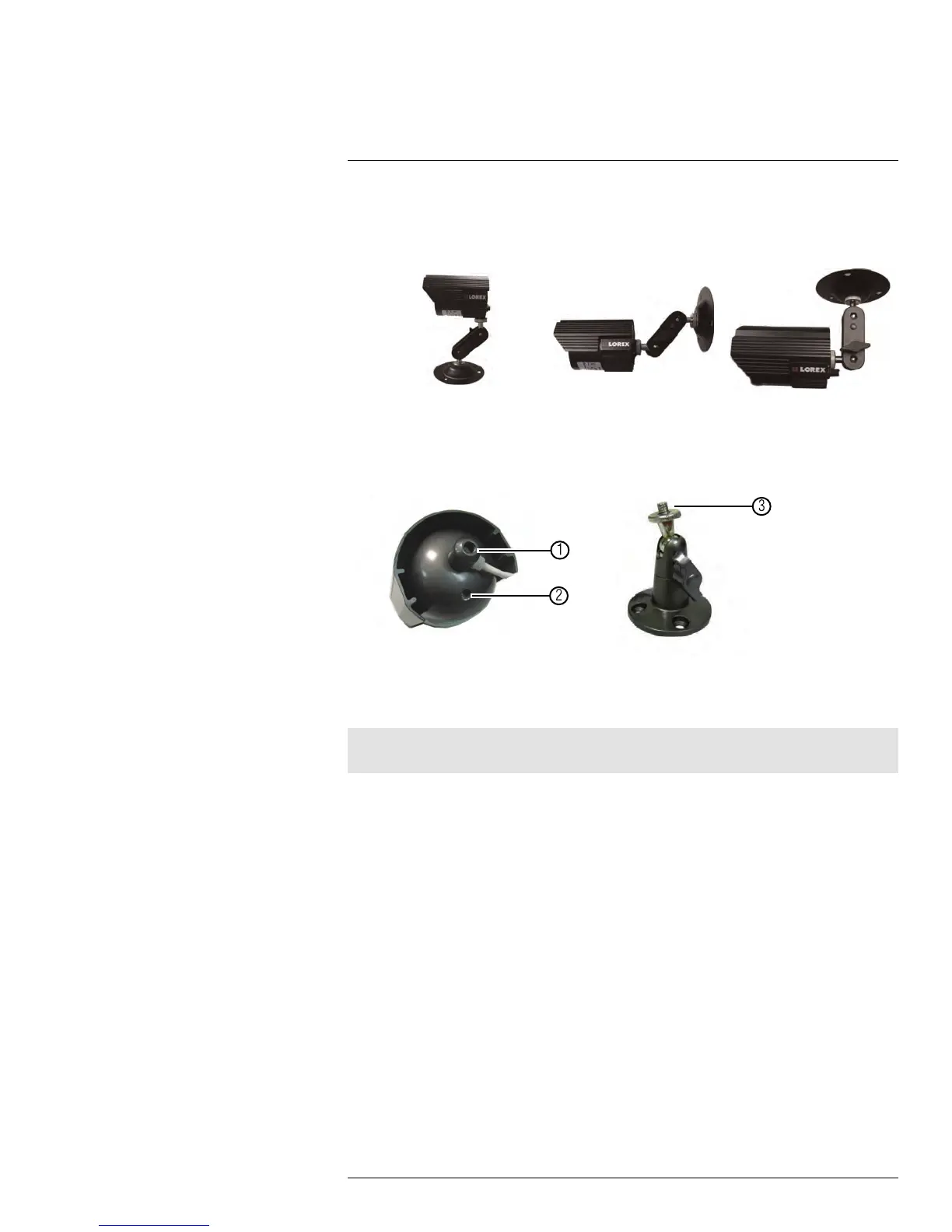

2. Adjust the camera stand to ensure that the camera has a satisfactory view of the area
you would like to monitor. Stand configuration depends on the mounting surface you
have chosen (see below for suggested stand configurations).
Table Mount Wall Mount
Ceiling Mount
There are two connection points for certain cameras. Secure the stand to the top thread
for wall mounts or ceiling mounts. Secure the stand to the bottom thread for table mounts
or wall mounts.
00
0
1
0
2
0
3
1. Top Thread (Ceiling Mount, Wall Mount).
2. Bottom Thread (Table Mount).
3. Secure to camera thread.
Note
Camera model may not be exactly as shown.
6.12.2 Connecting BNC Cameras to your DVR
1. Connect the male power connector on the BNC extension cable to the female power
connector on the camera.
• Connect the BNC connector to the camera.
2. Connect the female power connector on the BNC extension cable to the power
adapter.
3. Connect the BNC connector to one of the Video Input ports on the rear panel of the
DVR.
4. Plug the camera power adapter to a power outlet.
#LX400015; r. 1.0/13705/13705; en-US
13

Lorex LH040400 Specifications

General

Brand	Lorex
Model	LH040400
Category	DVR
Language	English
