Chapter 9 Remote Connection Service
9-3
9.2.1 Remote stage 1 connection (If RS-232C cable used)
For remote stage 1 connection, XG5000 shall be in off-line state.

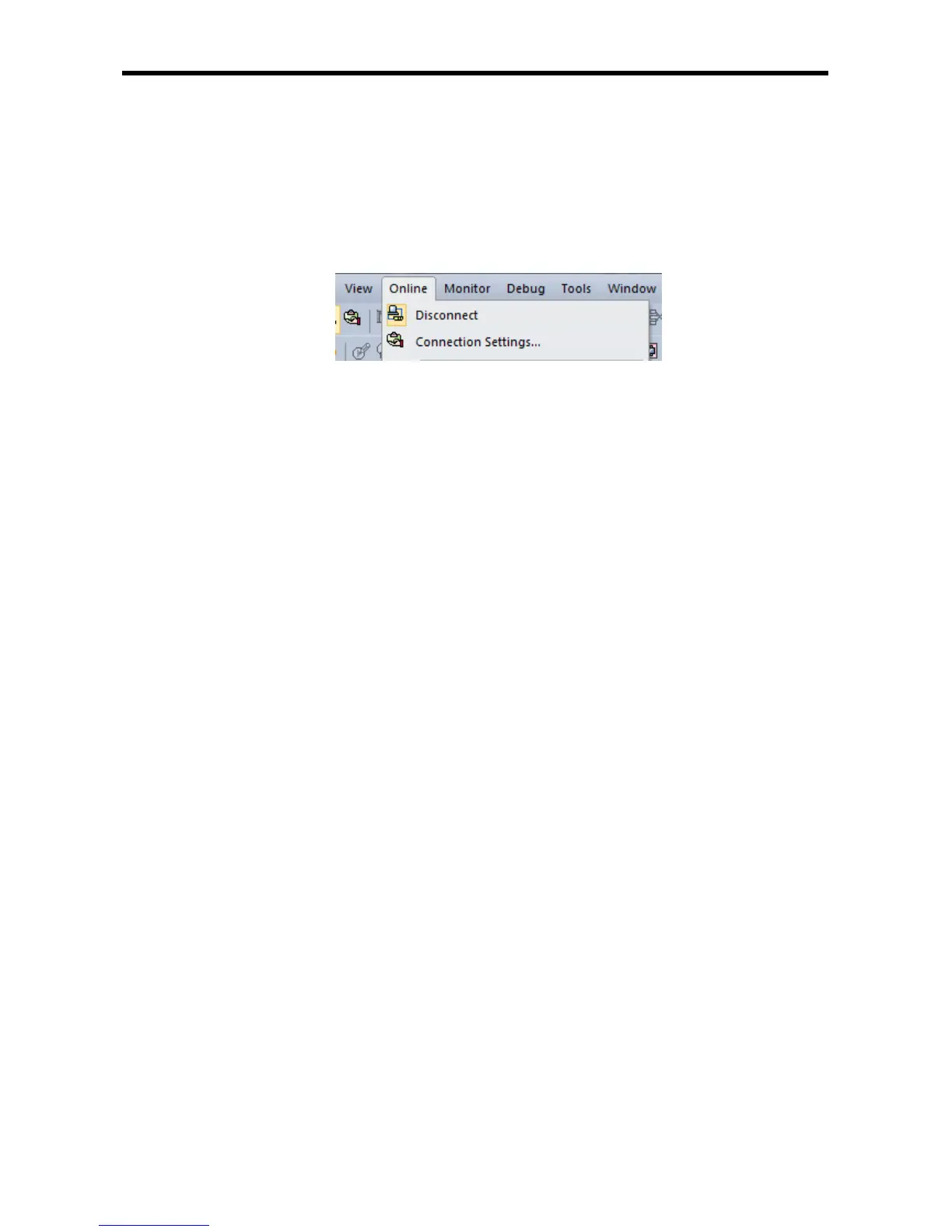

Click [Online] -> [Connection settings]
[Fig. 9.2.2] XG5000 remote connection option to select
(1) Connection type
It designates the connecting method for local connection. Local connection is applied with
RS-232C used as in [Fig. 9.2.3]. Select the port used in PC for a communication port. The
case that Ethernet is used for local connection will be described in the next section. Refer to
user’s manual of each communication module for the case with other connection types.
(2) Connection depth
Decide a PLC
connection stage of local, remote stage 1 or 2. Select remote stage 1 here.
