Chapter 9 Remote Connection Service
9-4

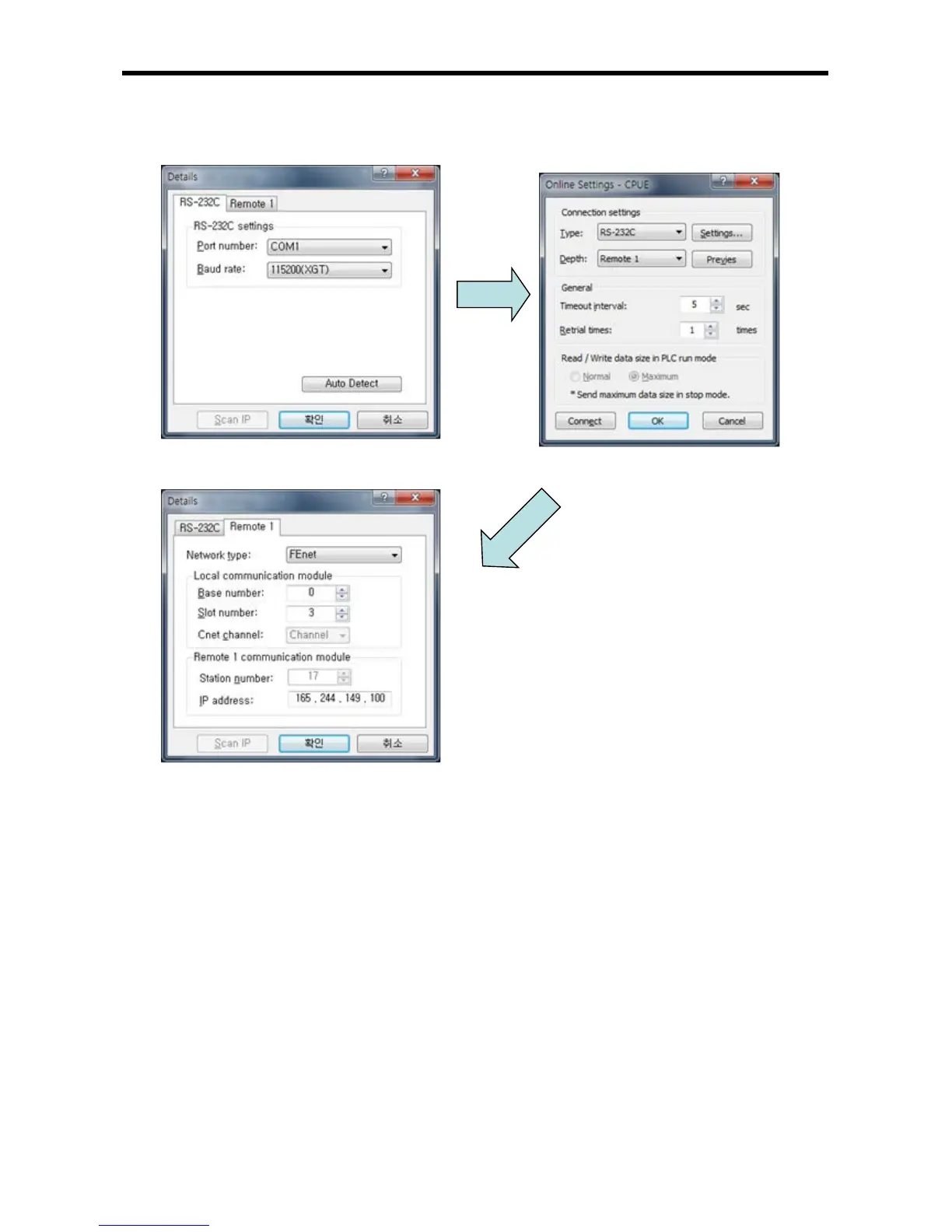

[Fig. 9.2.3] XG5000 remote stage 1 connection
(3) Network type
Select a network type for stage 1 connection among Rnet, Fdnet, Cnet, FEnet and FDEnet.
XGL-FEnet is to be selected because stage 1 connection is applied through FEnet in [Fig.
9.2.3].
(4) Base No.
Specify the base No. where FEnet I/F module of PLC #1 for remote connection is installed.
