3 Installation – Panel Mount
The panel-mounting version is designed to be flush mounted and sealed in a
square cut-out in a panel, and is held in place with the two screw clamps provided.

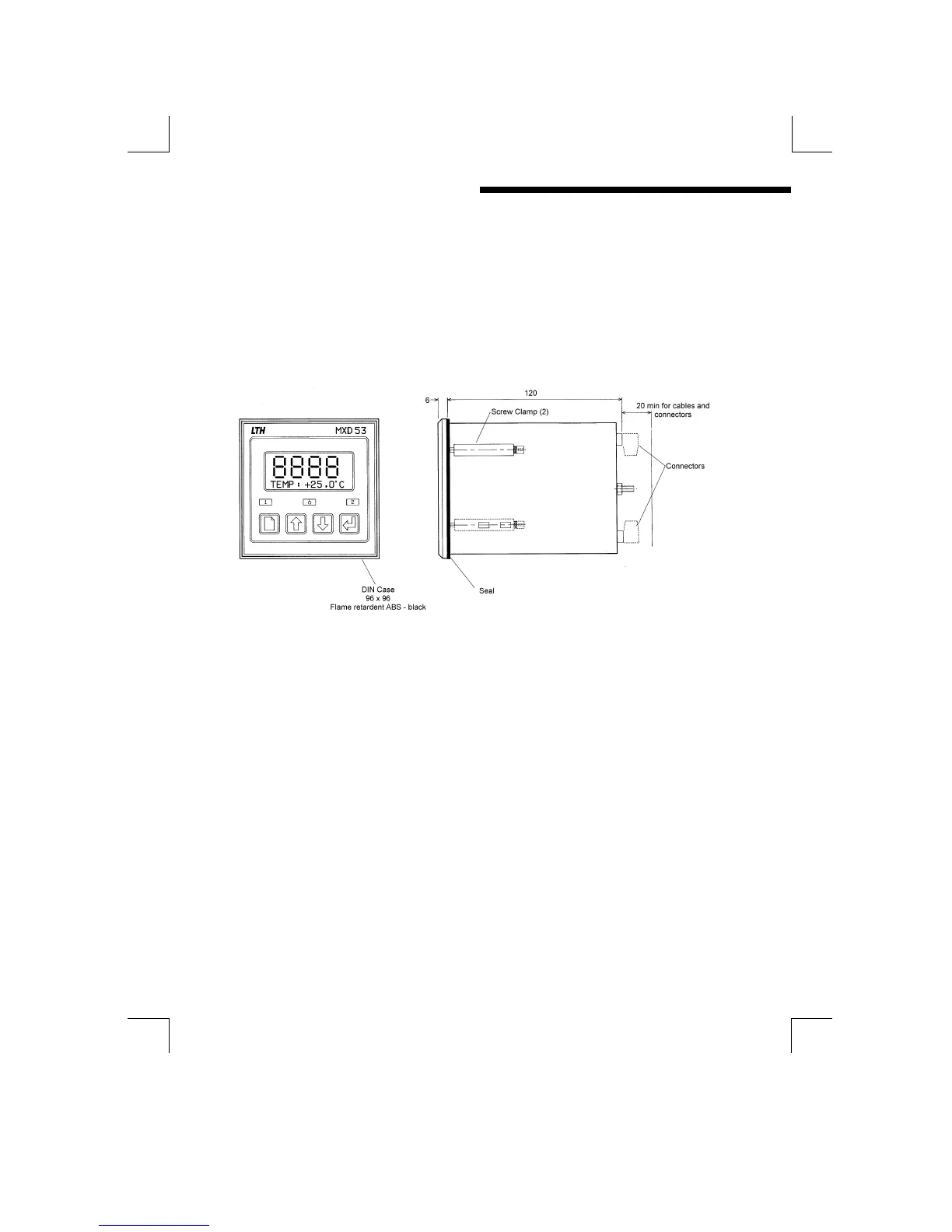

Figure 1 : Overall dimensions panel-mounting MOD53
• The panel cut-out for mounting the unit should be 92 mm x 92 mm (+1.0 – 0.0).
• A sealing gasket is supplied with the MOD53 to be fitted around the edge of the
cut-out.
• Two screw clamps are supplied and are fitted from the back of the instrument.
• Take care to ensure the gasket is correctly positioned before tightening the
clamps.
• A badly fitted gasket will not give a good seal to the specified IP rating.
