16 OE15 Membrane Replacement
79
16 OE15 Membrane Replacement
The electrode membrane is very delicate and may be damaged by careless use.
Inspect the electrode periodically for signs of membrane damage and replace it if
necessary.

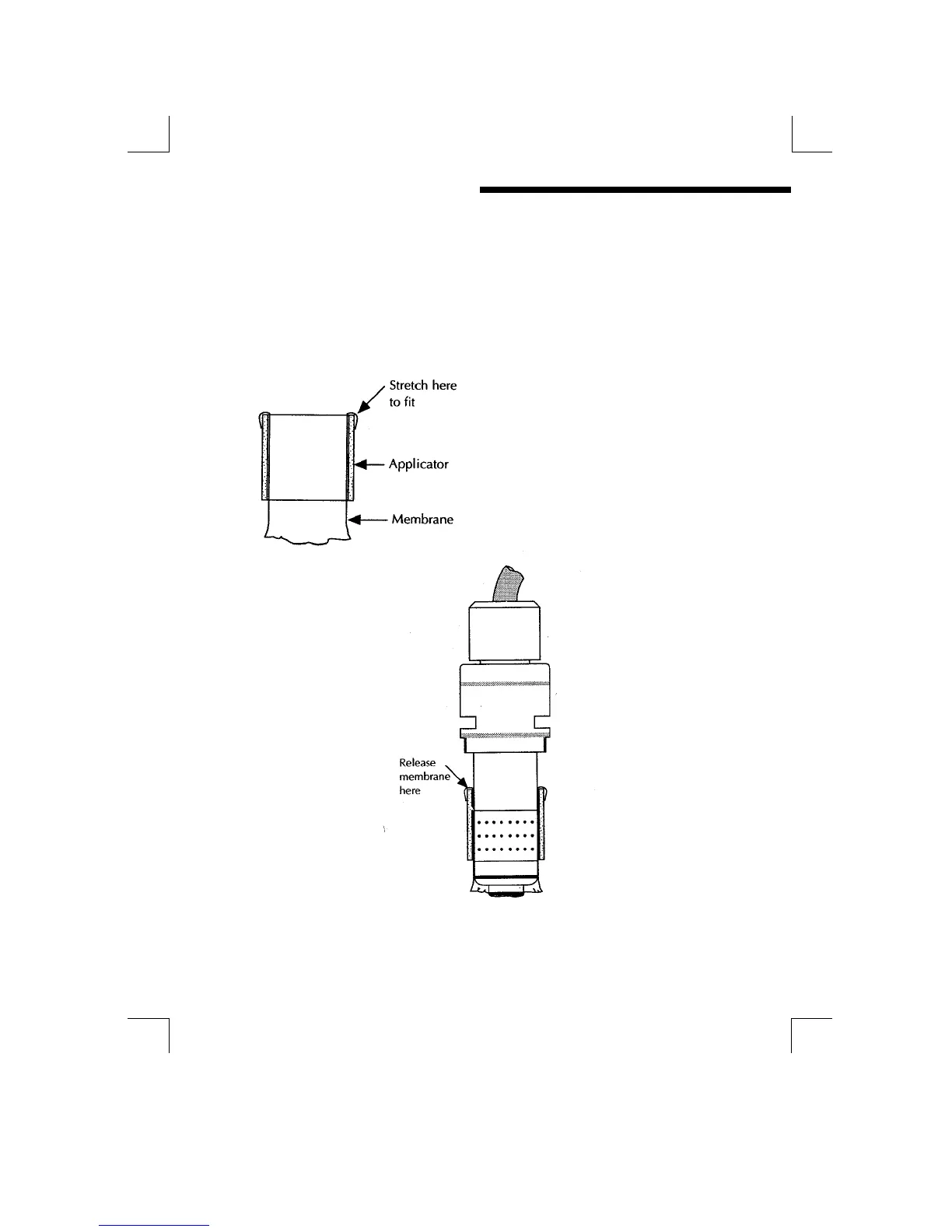

Remove the damaged membrane and
the two ’O’ rings retaining it and set
these aside. Cut a 120mm length of
membrane and fit to the applicator as
shown by passing it through the middle
and evenly stretching the front edge
back over the outside. Slide the
applicator carefully over the electrode
taking care not to stretch the
membrane. Release the membrane at
the top and withdraw the applicator.
