3 Installation – Panel Mount
15
SENSOR TYPES
The following figures give the connection details of the most commonly used LTH
cable types. Do not use any other type of cable than those recommended by LTH
or the sensor manufacturer to extend the sensor / instrument distance.

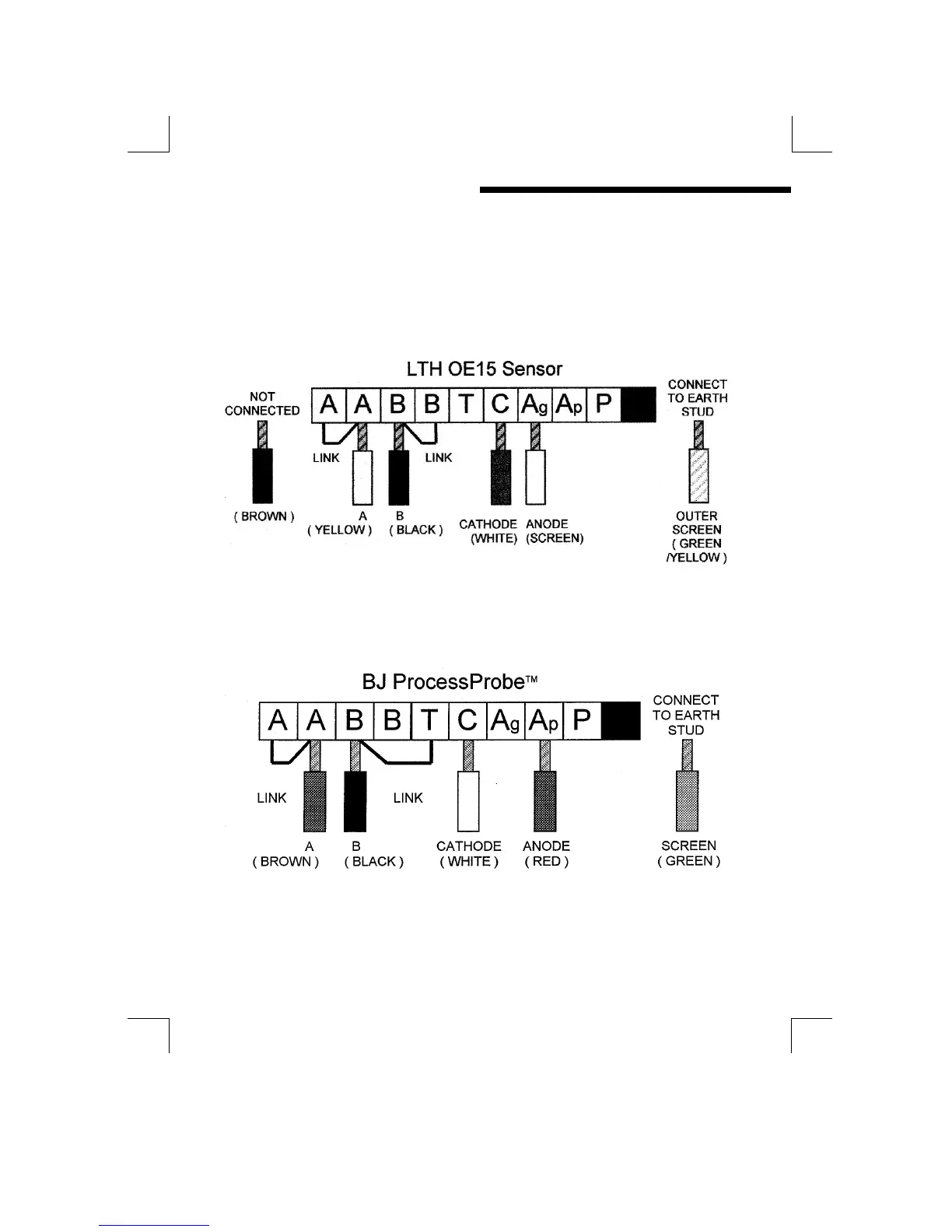

Figure 10 : OE15 Cable
The outer screen/shield should be connected to the centre Earth Stud.
Figure 11 : ProcessProbe
TM
Cable
