4 Installation – Surface Mount
20
PIPE MOUNTING
The handrail & pipe mounting version is designed for fixing to a vertical or
horizontal handrail or pipe, of 25 - 60 mm outside diameter. The mounting kit
comprises one plate, two channels, two clamps, four studs, 3 x M5 nuts, 3 x M5
plain washers, 3 x M5 shake proof washers, 12 x M4 nuts and 12 x M4 shake proof
washers, as shown in the exploded view below.

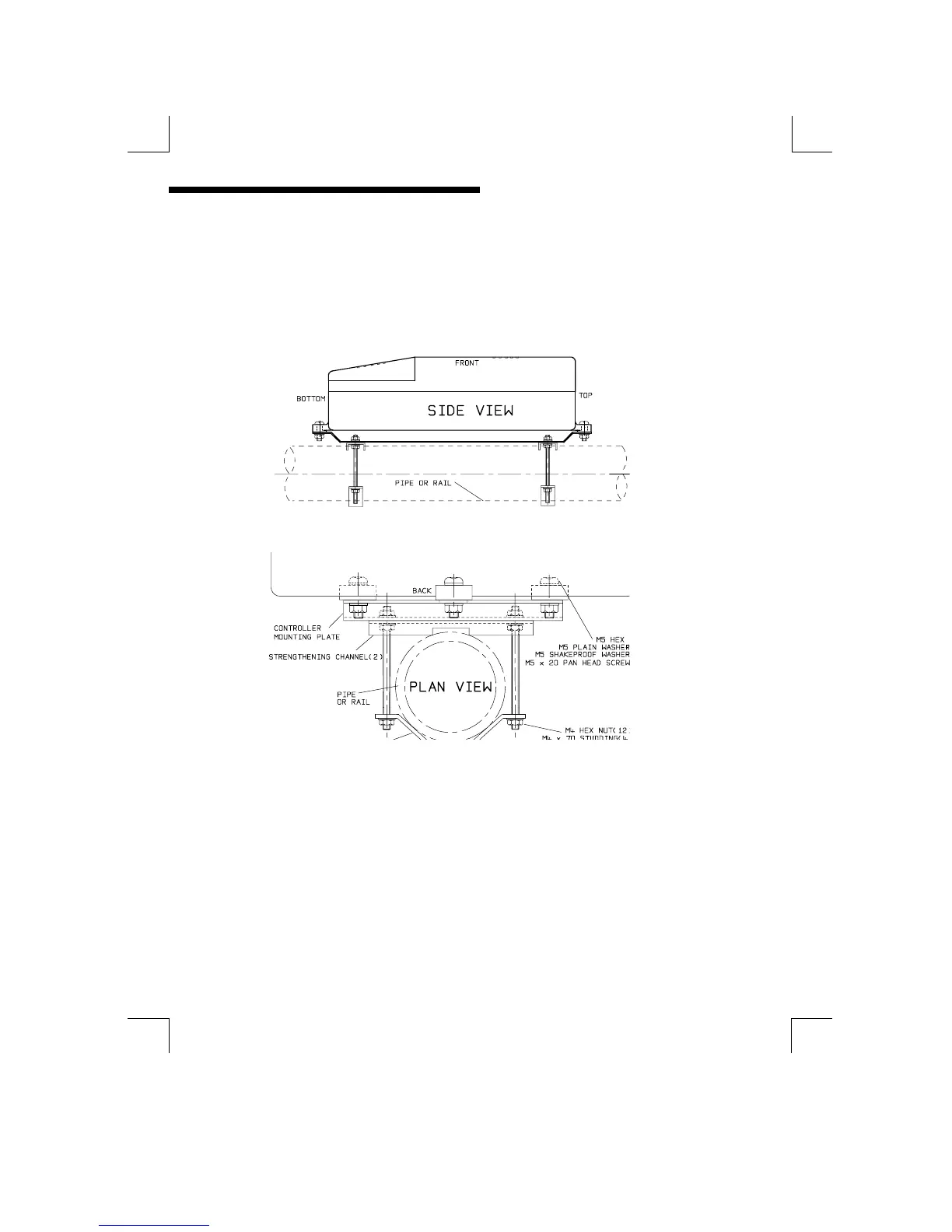

Figure 17 : MOD53 handrail & pipe mounting brackets
• The brackets can be fitted either vertically or horizontally.
• Position the channels to the rear of the mounting plate and secure with 8 x M4
nuts and 8 x M4 shake proof washers as shown.
• Position the mounting plate assembly onto the pipe/handrail ensuring that the
single fixing hole for the controller is at the top.
• Secure the two pipe clamps with the 4 x M4 nuts and 4 x M4 shake proof
washers.
• Attach the controller to the mounting plate with the 3 sets of M5 fixings supplied.
