4 Installation – Surface Mount
19
4 Installation – Surface Mount
The surface mounting version is designed for fixing to a wall or other flat surface.
Three 6.5 mm diameter holes are provided for this purpose. Note that fasteners
are not provided.

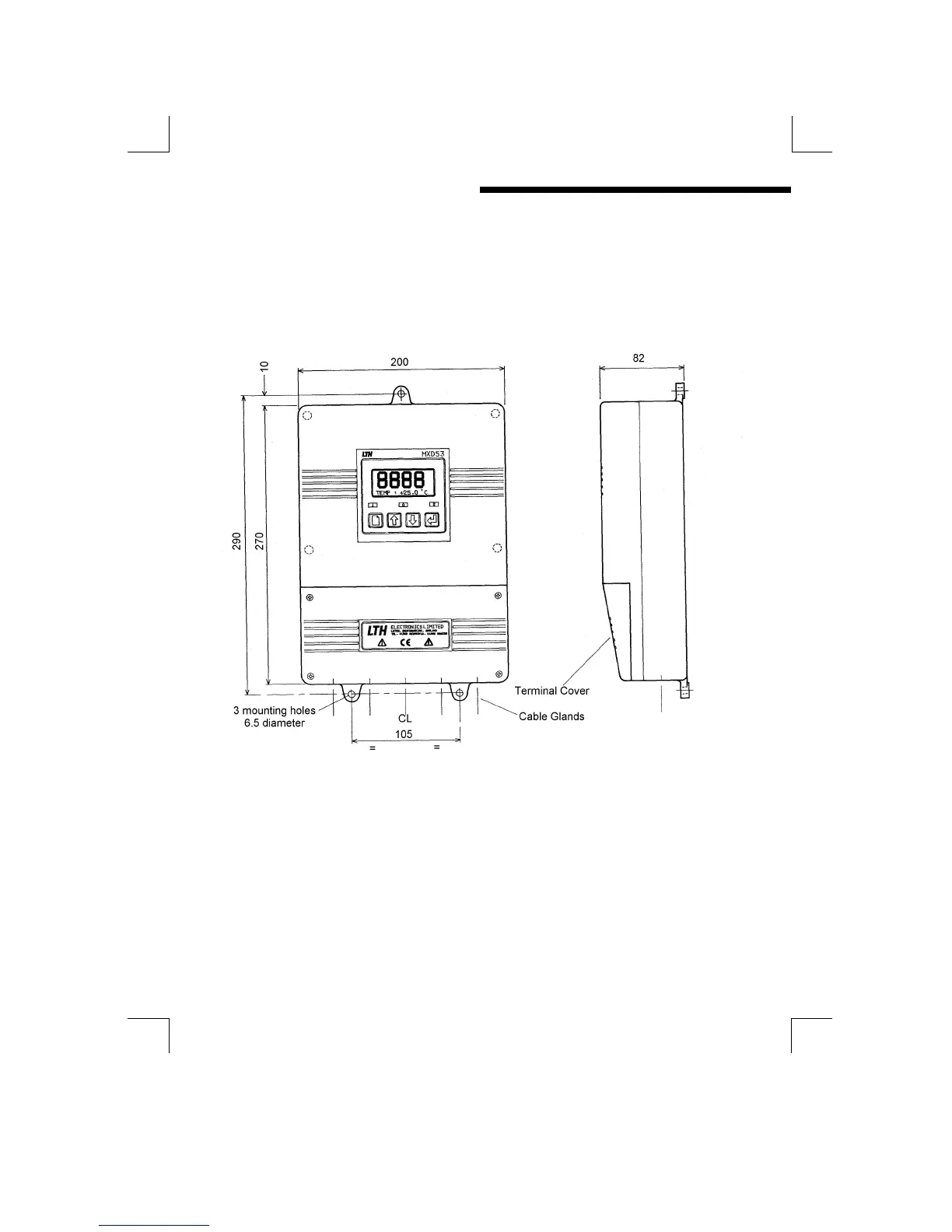

Figure 16 : Overall dimensions surface mounting MOD53
♦ LTH recommend using No. 10 x 1¼ inch round head screws or similar for
mounting.
♦ Care must be taken when fitting the unit to uneven walls or surfaces. Do not
over stress the three mounting lugs.
♦ Over tightening the mounting screws could also break the lugs.
