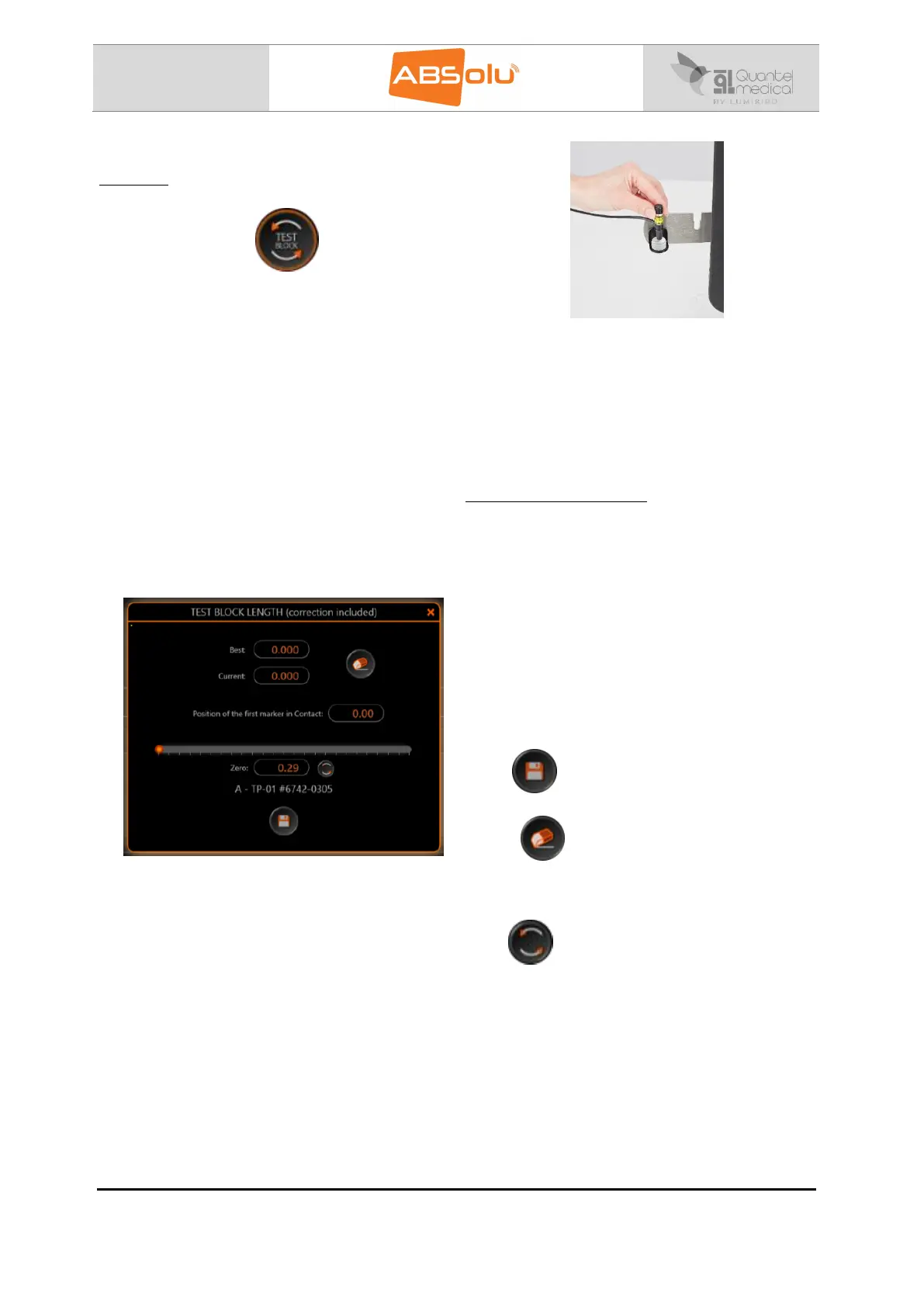

Put a drop of water on the Test-Block and position the probe on the test block to be as much
perpendicular and well centered as possible.
A tracking starts: the purpose is to record the measurement with the highest posterior face
echo. This measurement will correspond to the best probe position, well perpendicular to
the posterior face.
By using QM.Absolu.Presentation.Main.Setup, this screen appears:
Two values are displayed:
“Best =” is the measurement
corresponding to the best image.
“Current =” is the measurement
corresponding to the current position of
the probe.
For a good calibration, the probe should
measure a thickness situated in between
10.00 and 10.11mm. If the measurement is
not within these range (best and current,
especially best), the “position of Marker #1 in
contact” cursor should be adjusted.
Select to save the calibration.
Select to erase the “Best” and
“Current” fields and start a new
measurement.
Select to reset the Zero value.
