WINDROWER TRACTOR OPERATION
Form 169017 69 Issue – June 2008

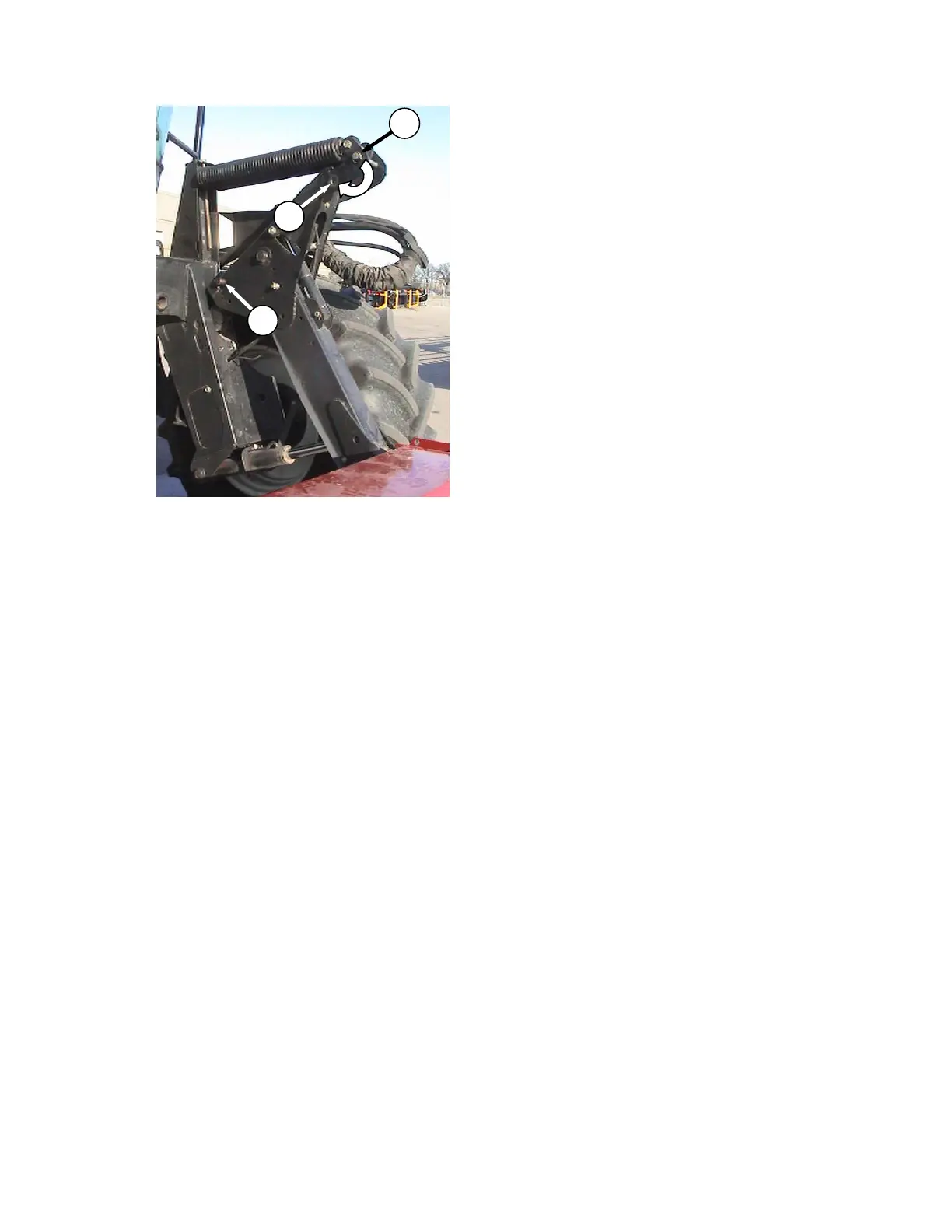

o. Move float pins (B) at front of lift arms to position
(F).
p. Activate HEADER DOWN switch in cab to lower
lift arms until the lift arm “floats” up away from
the linkage at the rear of the lift arm.
q. Remove the temporary lift pins (A) (should be
loose in lift arm) and place into storage holes on
weight box.
B
F
A
