WINDROWER TRACTOR OPERATION
Form # 169017 70 Issue – June 2008
6.3.8.2.2 From Transport Mode To Field
Operation

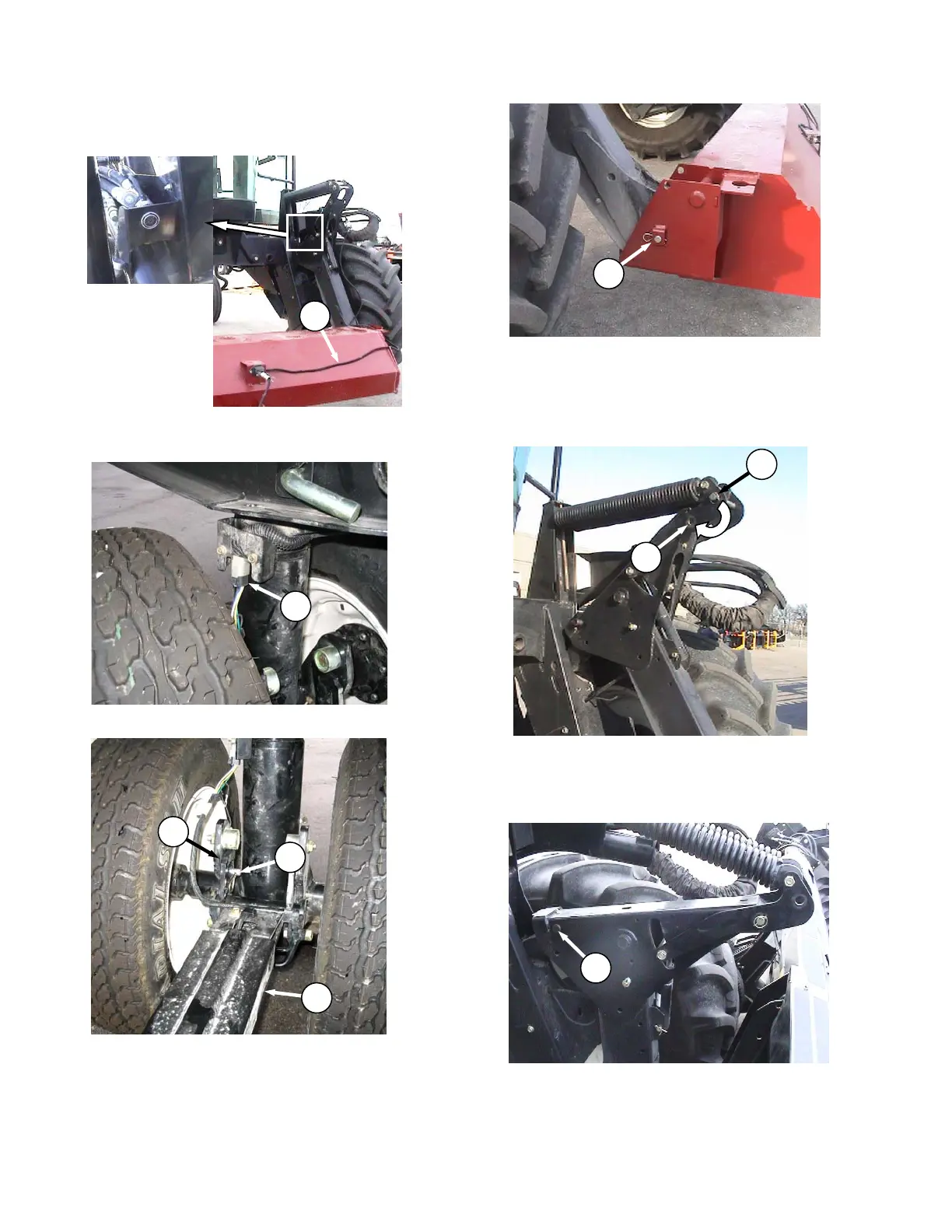

a. Disconnect electrical harness from tractor and
store harness (A) on weight box.
b. Disconnect wiring connector (B) at front wheel.
c. Remove clevis pin (C).
d. Push latch (D) and lift tow-bar (E) from hook.
Release latch and replace clevis pin.
e. Remove locking pins (F) securing lift legs to
weight box, and retain pins for attaching header
to tractor.
f. Lower weight box onto blocks and back away.
g. Raise lift arms to full height.
h. Move float pins (G) from forward hole into
location (H).
i. Lower lift arms until rear of lift arms floats up and
away from the lift arm mechanism.
j. Remove temporary lift pins (J) from weight box
and install pins into holes at in rear of lift arms.
(continued next page)
F
J
G
H
A
E
D
C
B
