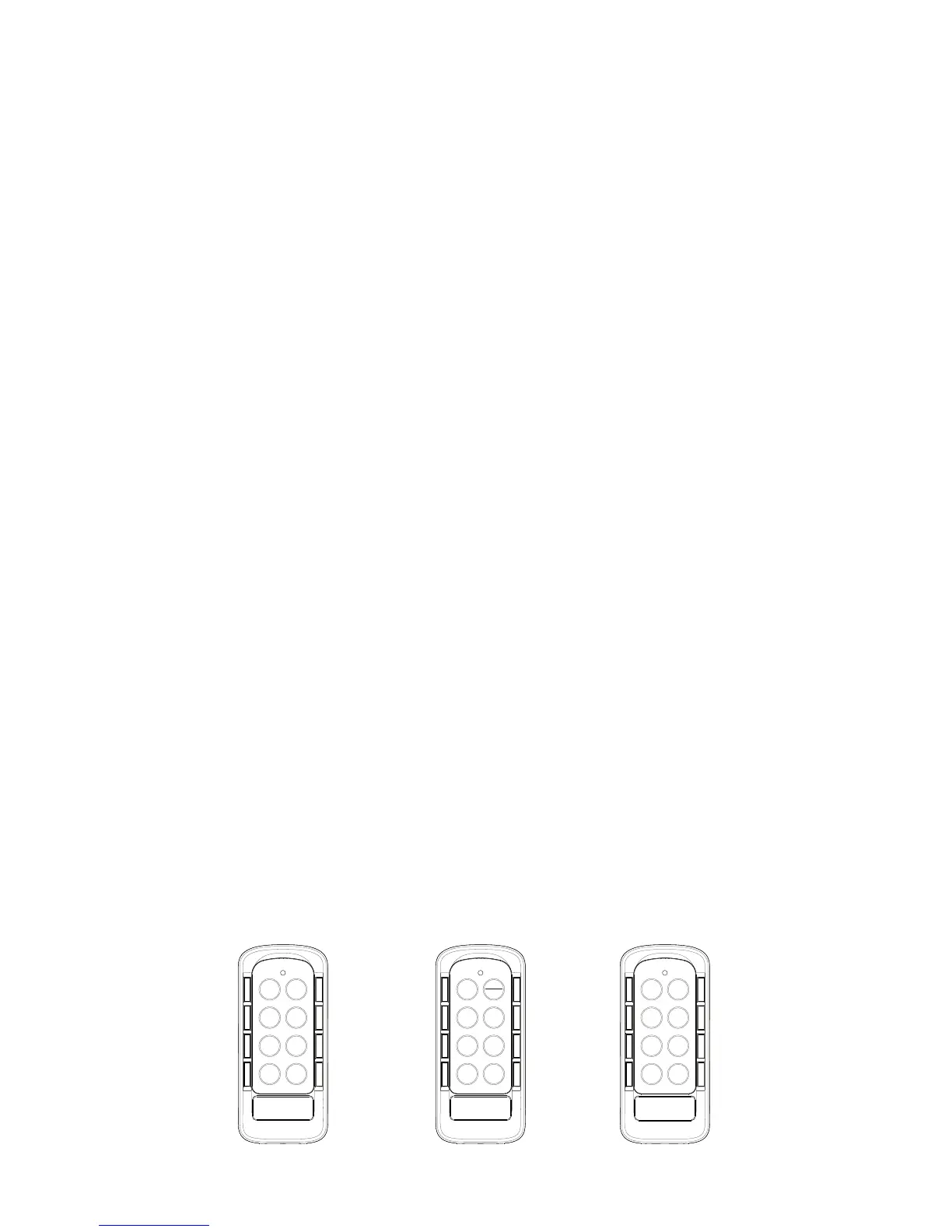

PB3PB4
PB5PB6
PB8 PB7
PB2
Type 1
PB1
PB3PB4
PB5PB6
PB8 PB7
PB2
ON
OFF
Type 2
PB3PB4
PB5PB6
PB8 PB7
START
Type 3
STOP
7. Flex Mini Models
7.1 Program Direct
1) Make sure the programming cable is connected to the system.
2) Press “→” button to enter Direct setting.
3) Press READ button to store transmitter or receiver information into the
programmer. If the screen shows “READ OK” the transfer is completed.
4) Press WRITE button to transfer the stored transmitter or receiver information
into a new transmitter or receiver. If the screen shows “WRITE OK” the
transfer is completed.
5) Exit Program Direct by pressing the “BACK” button until the cursor is
shown next to “Program”.
6) Press “↑” and “↓” button to scroll through other Flex Mini settings.
7.2 Program Serial Number (TX & RX)
1) Make sure the programming cable is connected to the system.
2) Press “→” button to enter Serial Number setting.
3) Press “↑” and “↓” button to change serial number as a whole or…
4) Press “→” button to go to the 1
st
digit on the far left of the serial number.
5) Press “↑” and “↓” button to change numeric value.
6) Press “→” button to go to the next digit to the right and repeat step 5.
7) Press BACK button to go back to step 3 or 4.
8) Exit Program Serial Number by pressing the “BACK” button until the cursor
is shown next to “S/N:”.
9) Press “↑” and “↓” button to scroll through other Flex Mini settings.
7.3 Program Keypad Type (TX & RX)
1) Make sure the programming cable is connected to the system.
2) Press “→” button to enter Keypad Type setting.
3) Press “↑” and “↓” button to change system type as a whole or…
4) Press “→” button to go to the digit on the left.
5) Press “↑” and “↓” button to change numeric value.
6) Press “→” button to go to the next digit to the right and repeat step 5.
7) Press BACK button to go back to step 3 or 4.
8) Exit Program Keypad Type by pressing the “BACK” button until the cursor
is shown next to “KEYPAD:”.
9) Press “↑” and “↓” button to scroll through other Flex Mini settings.
