8. Flex BASE Models
8.1 Program IR

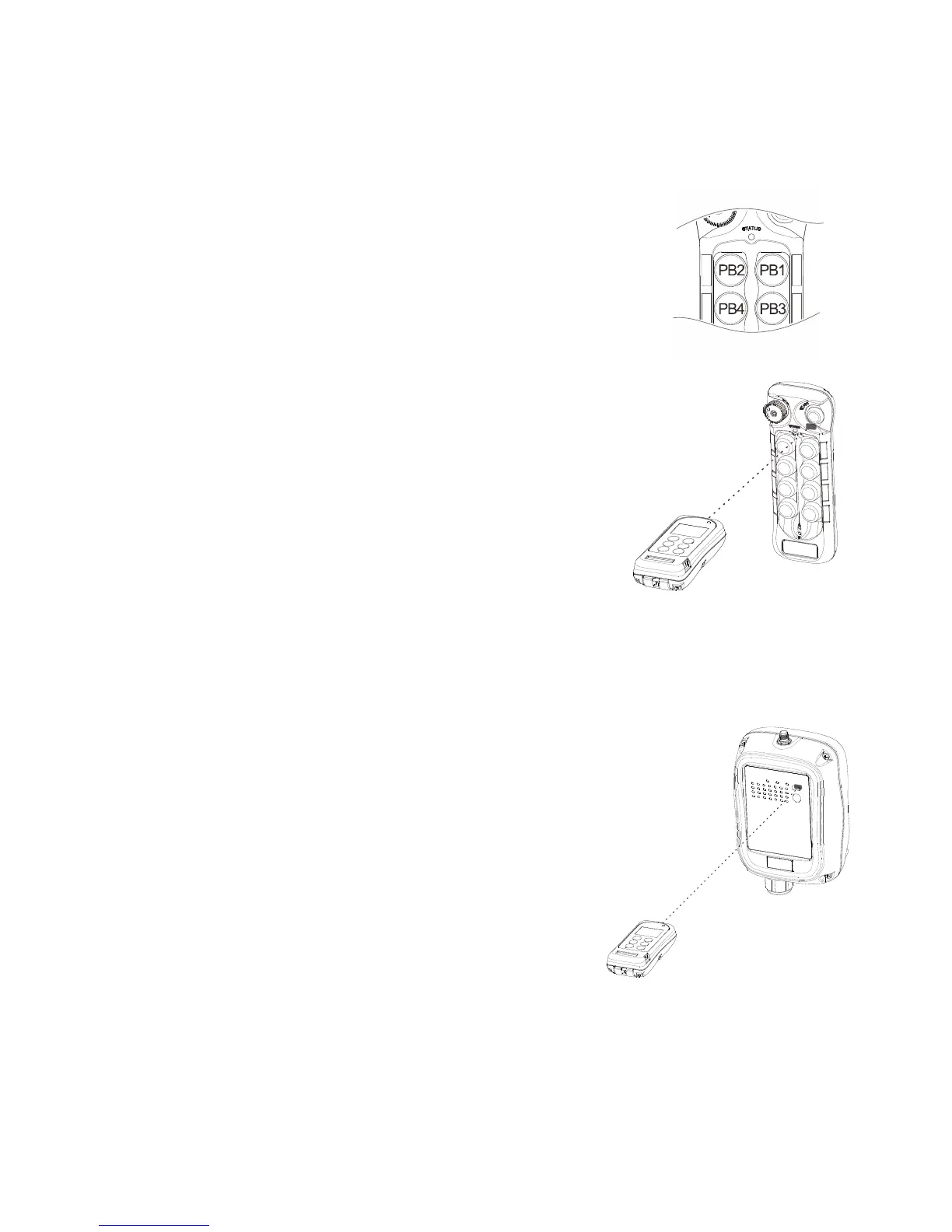

8.1.1 Transmitter
1) Pressed down the STOP button (transmitter power off).
2) Press and hold PB1 and PB3 at the same time.
3) Reset the STOP button by rotating it clockwise or
counter-clockwise, it will pop up.
4) Release PB1 and PB3 at the same time. The
transmitter Status LED displays firmware version with
red, green and orange blinks.
5) Press READ button to transfer transmitter info into the
IR programmer. If the screen shows “READ OK”
the transfer is completed.
6) Browse through list of settings by pressing “↑” and
“↓” buttons (see section 8.2 and on).
7) Press WRITE button to transfer the new settings
into the transmitter (transmitter Status LED
constant orange). If the screen shows “WRITE
OK” the transfer is completed (transmitter Status
LED constant green for up to 2 seconds).
8) Exit Program IR by pressing the “BACK” button
until the cursor is shown next to “Program”.
9) Press “↑” and “↓” button to scroll through other
Flex BASE settings.
8.1.2 Receiver
1) Power on the receiver with MAIN relays
deactivated (standby mode).
2) Press READ button to transfer receiver info
into the IR programmer. If the screen shows
“READ OK” the transfer is completed.
3) Browse through list of settings by pressing “↑”
and “↓” buttons (see section 8.2 and on).
4) Press WRITE button to transfer the new
settings into the receiver (receiver Status LED
constant orange). If the screen shows “WRITE
OK” the transfer is completed (receiver Status
LED blinks green – standby mode).
5) Exit Program IR by pressing the “BACK” button
until the cursor is shown next to “Program”.
6) Press “↑” and “↓” button to scroll through other
Flex BASE settings.
Note: When performing infrared programming make sure the distance between the IR programmer and the
transmitter or receiver is within 10cm.
