5.2 Dimensions
Dimensions in mm [Inch]

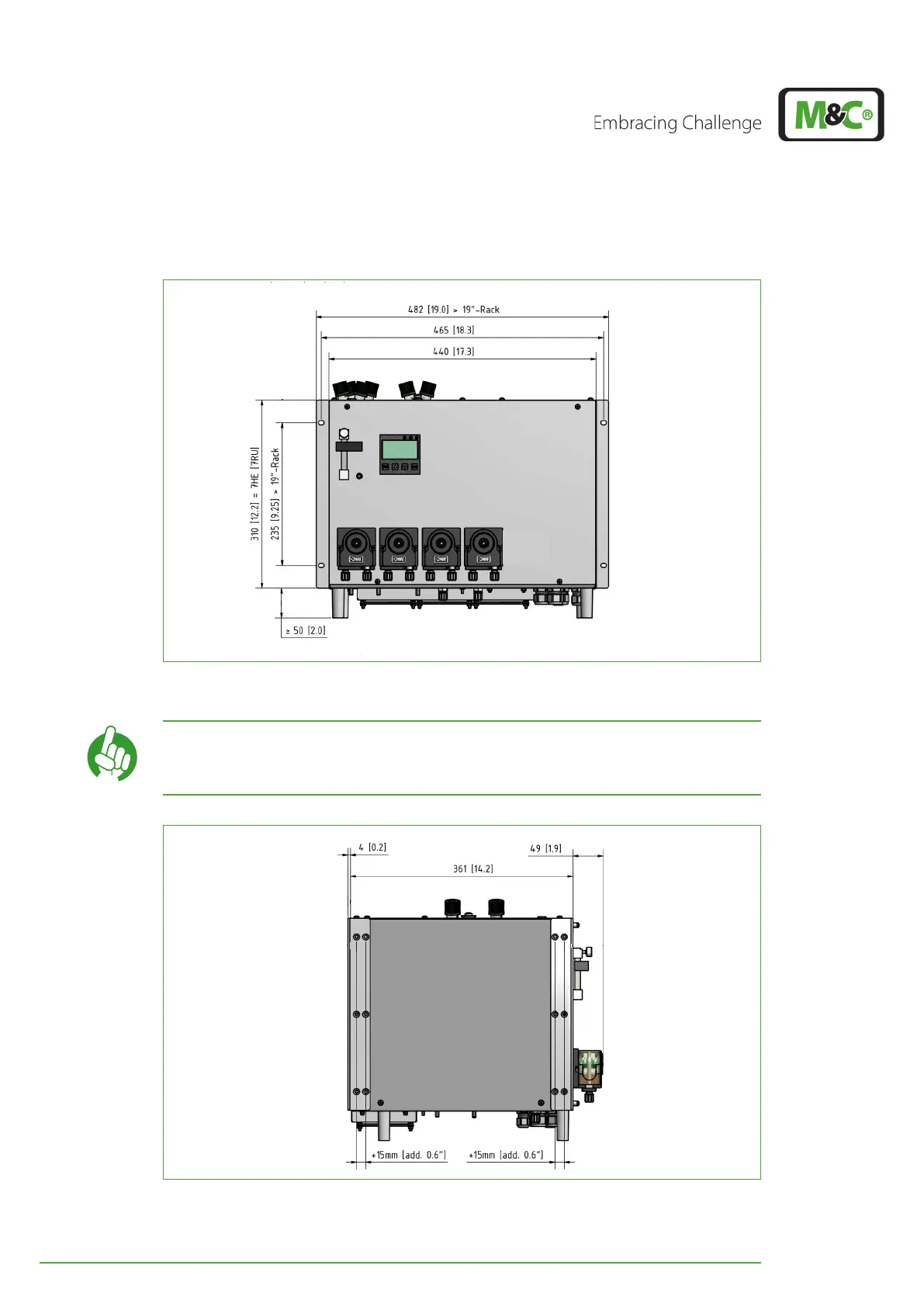

Fig. 3: Front view: dimensions including optional peristaltic pumps
Note
You will find mounting directions on page 40 chapter ‘8 Installa-
tion instructions and mounting of the EC-30C’ .
Dimensions in mm [Inch]
Fig. 4: Side view: dimensions including optional peristaltic pumps
