ZIVAN BATTERY CHARGER DESCRIPTION

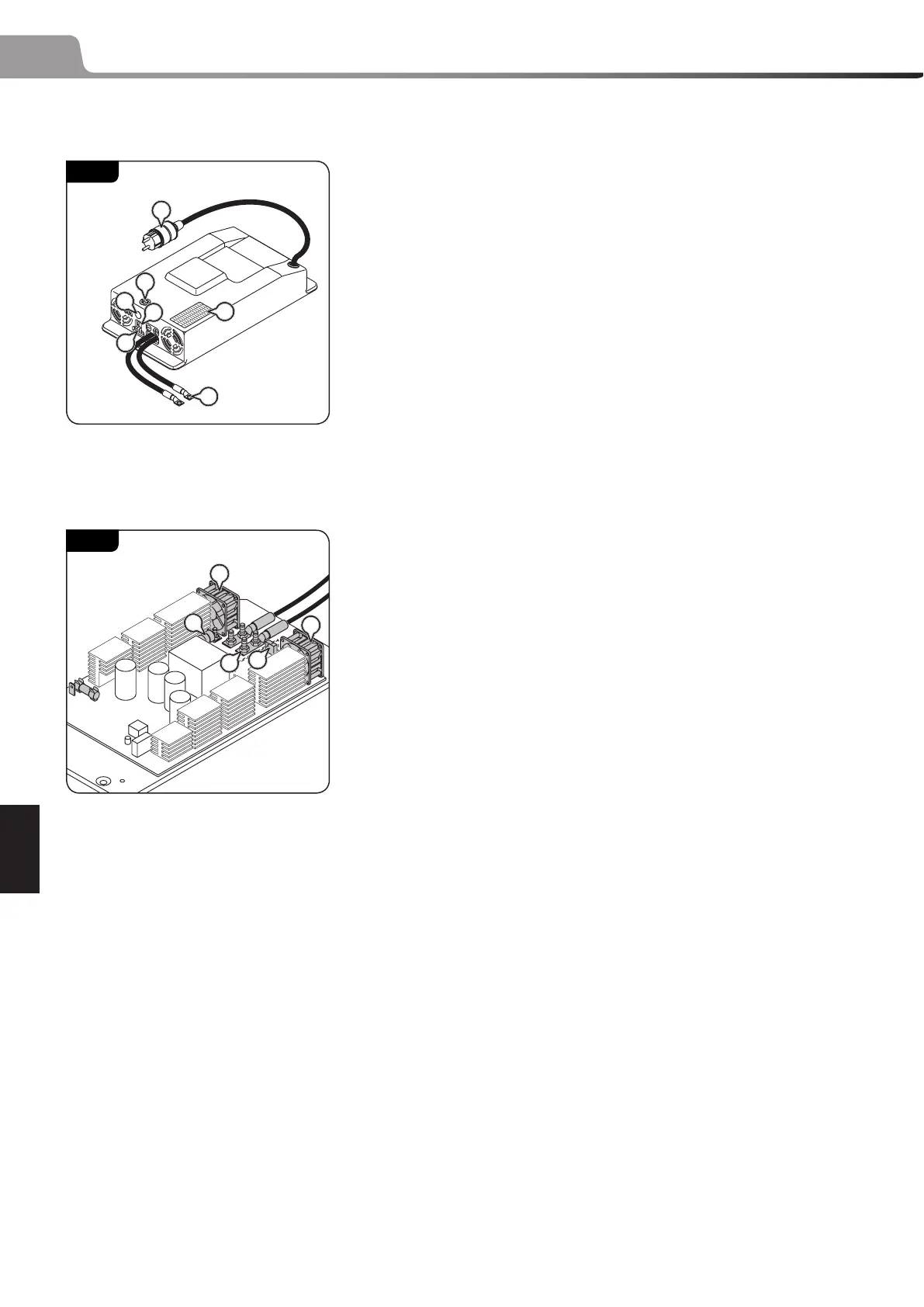

EXTERNAL VIEW
- Mains power supply cable..................................... (1, 080 - 74)
- LED indicator ............................................... (2, 080 - 74)
- Charging cables ...........................................................(3, 080 - 74)
- Auxiliary contacts ........................................... (4, 080 - 74)
- 5-pin plug.................................................... (5, 080 - 74)
- Capacity switch protective plug ......... (6, 080 - 74)
- Sticker: indication of settings (position of capacity switch) made
during rst installation .................... (7, 080 - 74)
NOTE: ignore this sticker when conguring the settings for the
charger (6ZIVAN BATTERY CHARGER CONNECTIONS LOAD CURVES,
5 104)
INTERNAL VIEW
- Input fuse F1 (1, 080 - 75): 20 A (see parts catalog)
- Output fuse F2 (2, 080 - 75): 45 A (see parts catalog)
- Fans .............................................................. (3, 080 - 75)
- Battery capacity switch C .......................... (4, 080 - 75)
- Input terminals ........................................................... (5, 080 - 75)
- Output terminals ........................................................... (6, 080 - 77)
80 - 74
1
7
3
4
6
2
5
80 - 75
3
3
2
6
4
