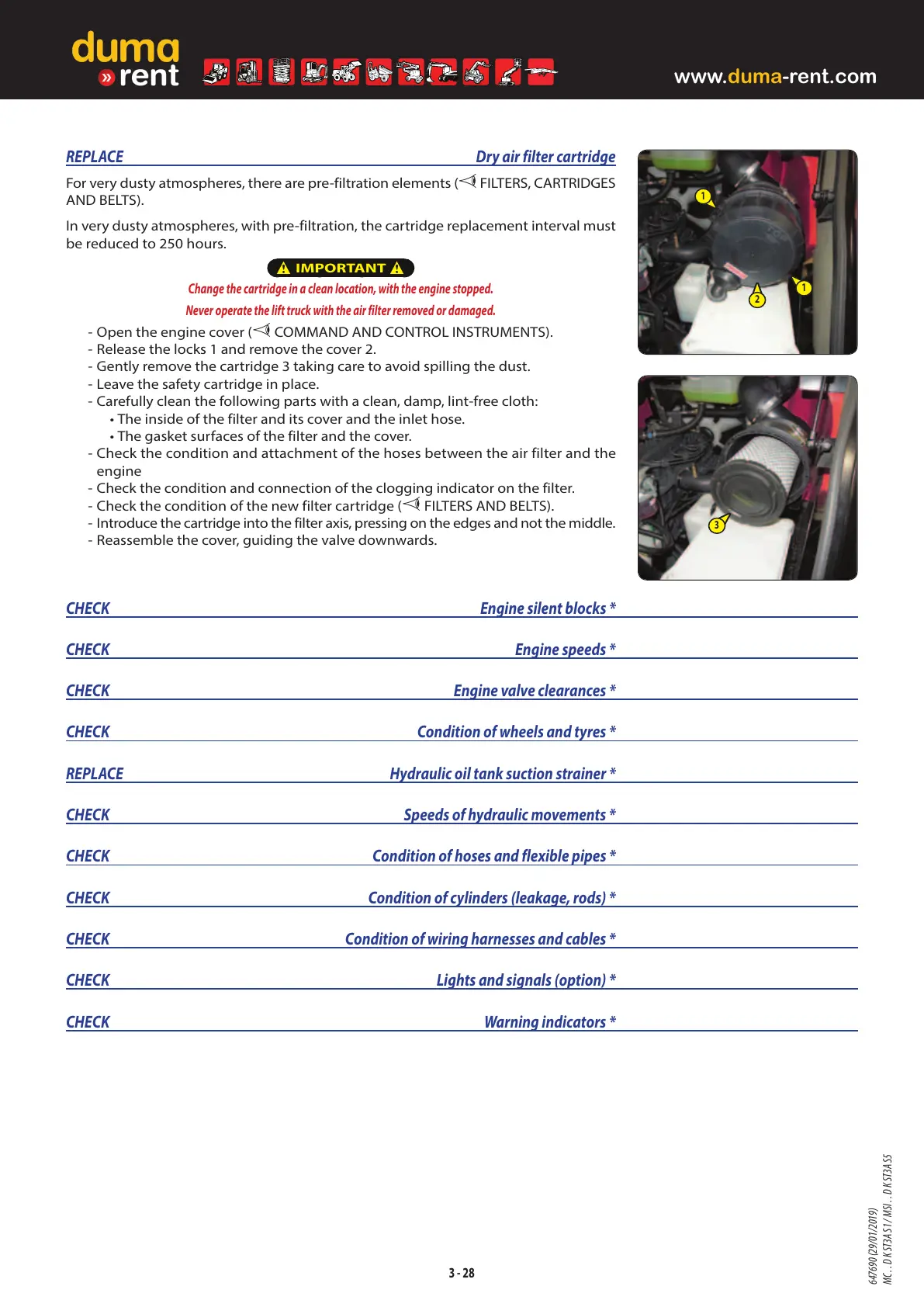

REPLACE Dry air filter cartridge
For very dusty atmospheres, there are pre-filtration elements ( FILTERS, CARTRIDGES
AND BELTS).
In very dusty atmospheres, with pre-filtration, the cartridge replacement interval must
be reduced to 250 hours.
IMPORTANT
Change the cartridge in a clean location, with the engine stopped.
Never operate the lift truck with the air filter removed or damaged.
- Open the engine cover ( COMMAND AND CONTROL INSTRUMENTS).
- Release the locks 1 and remove the cover 2.
- Gently remove the cartridge 3 taking care to avoid spilling the dust.
- Leave the safety cartridge in place.
- Carefully clean the following parts with a clean, damp, lint-free cloth:
• The inside of the filter and its cover and the inlet hose.
• The gasket surfaces of the filter and the cover.
- Check the condition and attachment of the hoses between the air filter and the
engine
- Check the condition and connection of the clogging indicator on the filter.
- Check the condition of the new filter cartridge ( FILTERS AND BELTS).
- Introduce the cartridge into the filter axis, pressing on the edges and not the middle.
- Reassemble the cover, guiding the valve downwards.
CHECK Engine silent blocks *
CHECK Engine speeds *
CHECK Engine valve clearances *
CHECK Condition of wheels and tyres *
REPLACE Hydraulic oil tank suction strainer *
CHECK Speeds of hydraulic movements *
CHECK Condition of hoses and flexible pipes *
CHECK Condition of cylinders (leakage, rods) *
CHECK Condition of wiring harnesses and cables *
CHECK Lights and signals (option) *
CHECK Warning indicators *
3 - 28
3
1
1
2
647690 (29/01/2019)
