CD15 OPERATOR MANUAL MAINTENANCE
6
Inspect All Safety Devices
Daily before beginning operation, check all safety devices for
proper operation. Examples of safety devices include,
backup alarms, horn and beacon lights.
If any is found to be malfunctioning, correct the problem
before placing the crane in service.
Check Controls Operation
Each control should be checked for proper operation after
the above inspections have been completed. Do not place
the crane in service if any control is not functioning properly.
Component/System Checks
Check Fuel Level
Check the fuel supply daily before operation. Turn the
ignition key to the ON position and view the fuel gauge on the
instrument panel. If necessary, fill the tank with
recommended fuel (see Figure 6-11).
Engine fuel is flammable and can cause a fire and/or
explosion. Avoid personal injury or death by keeping sparks,
open flames, and smoking materials away from the crane
and fuel during refueling or fuel system servicing. Know the
location of the fire extinguishers on the job site and how to
use them.
Maintain control of the hose nozzle when filling the fuel tank.
Do not allow fuel to spill. Clean up spilled fuel immediately.
Dispose of clean up materials properly.
DO NOT fill the fuel tank to capacity. Allow room for fuel
expansion.
Tighten the fuel cap securely. If the cap is lost, replace only
with original equipment.
Check the Engine Crankcase Oil Level
1. Level the crane, engage the parking brake and stop the
engine.
2. Open the engine compartment cover.
3. Remove the engine oil dipstick (see Figure 6-8) and
check the oil level. Oil should be visible within the
crosshatched mark area on the dipstick.
4. If the oil is low, add recommended oil to bring the level
up to the crosshatch area of the dipstick. When full,
install the dipstick and close the engine compartment
cover.
Check the Transmission Oil Level
1. Check the oil level when the oil is cold. Level the crane,
engage the parking brake and stop the engine.
2. Open the engine compartment cover. Remove the
dipstick (Figure 6-8) and check the oil level. Oil should
be visible on the dipstick between the minimum and
maximum marks with the oil cold.
3. If oil is low, add recommended oil to bring the level
between the marks. DO NOT OVERFILL. Install the
dipstick. Close the cover.

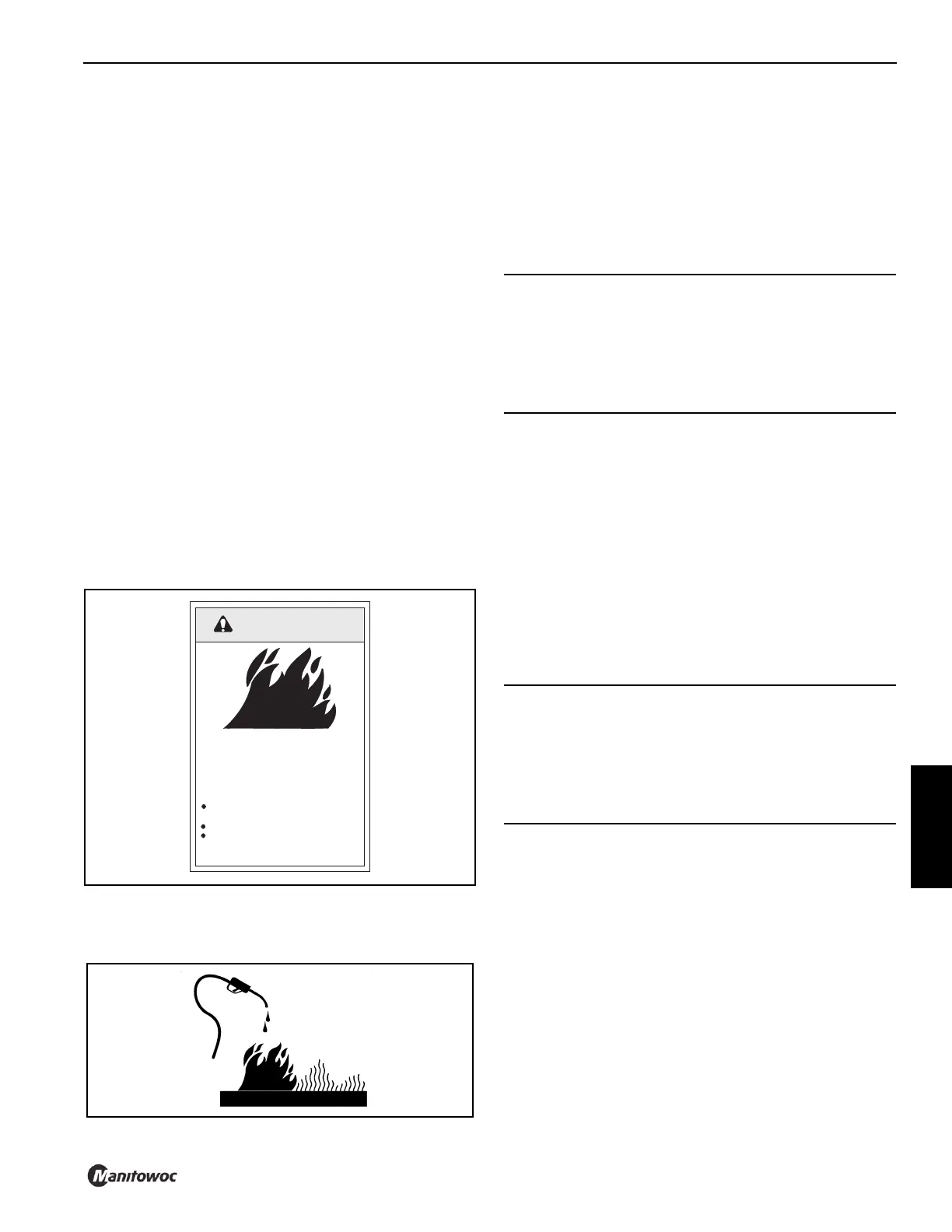

WARNING
FIRE HAZARD
Engine fuel is flammable and can
cause a fire or explosion. Deathcause a fire or explosion. Death
or personal injury could occur.
Do not put fuel in tank with engine
running.
Keep open flames away.
Do not use smoking materials during
refueling or servicing.
w0015
CAUTION
Avoid Crane Damage!
Do not engage the parking brake while the vehicle is
moving. Damage to the crane can occur.
Disengage the parking brake before driving. Damage to
the crane can occur.
CAUTION
Avoid Crane Damage!
Do not engage the parking brake while the vehicle is
moving. Damage to the crane can occur.
Disengage the parking brake before driving. Damage to
the crane can occur.
