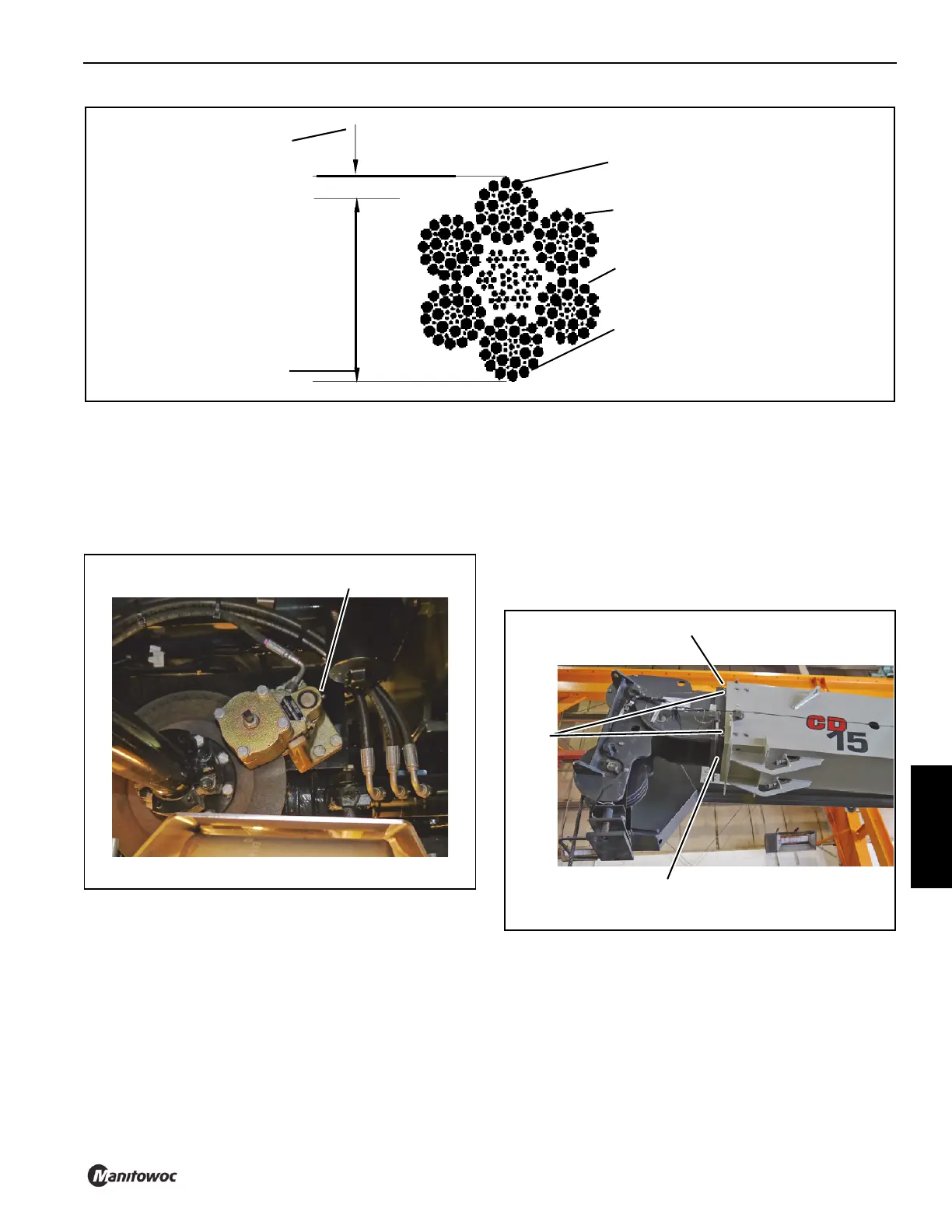

Published 3-30-2018, CTRL 636-05 6-15
CD15 OPERATOR MANUAL MAINTENANCE
Grease Fittings
Lubricate all points indicated under the heading Lubrication
Points on page 6-8.
Lubricate Parking Brake
Apply grease to the fitting on the parking brake (Figure 6-15).
Lubricate the Boom Slides
1. Extend the outriggers. Lower the boom and then extend
it to its maximum out position.
2. Engage the parking brake and stop the engine.
3. Clean the old lubricant from the boom sections.
4. Brush Lithium Based, EP2 grease, or equivalent, to the
sliding surfaces (Figure 6-16) on all boom sections. Only
use a small amount of lubricant for best results.
Evidence of heat damage from any cause.
Kinking, crushing, or distortion of rope structure
6 broken wires in any one lay or 3 broken wires
in one strand in any lay.
Wear greater than 1/3 diameter of outside
individual wires.
Reduction from normal diameter of
9/16” (14 mm) of more than 1/32”
(0.8mm).
More than 1 broken wire at a
dead-end connection
FIGURE 6-14
Wire Rope Inspection
Criteria
8939
Parking Brake Lube Fitting
FIGURE 6-15
8930
Bottom Boom Slides
Top Boom Slides
Side
Boom
Slides
FIGURE 6-16
