Swing-away lattice
3.4 Description of the rigging work
3 - 46 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008

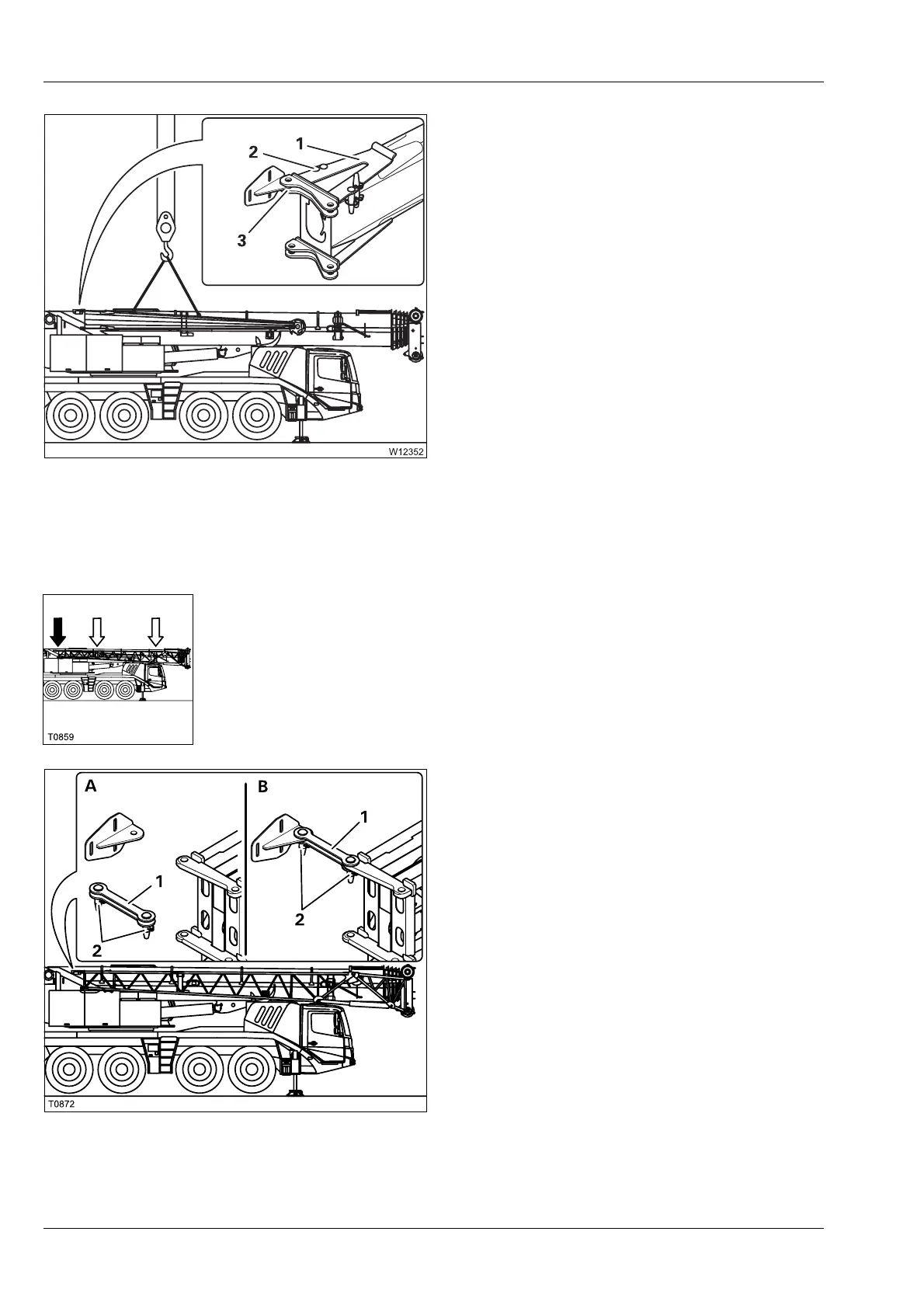

• Pull the pin (2) out of the connecting point (3).
• Insert the pin (2) in the holder (1).
• Secure the pin with the retaining pin.
Connection between section 1 and the main boom
H
This connection is not available at truck cranes supplied with a 17 m (56 ft)
swing-away lattice.
This connection must be established if the 10 m (33 ft) swing-away lattice is
folded to the side during unrigging.
The connection must be undone before the 10 m (33 ft) swing-away lattice
is swung towards the main boom head, if section 2 has been removed.
Establishing the connection
The correct original position is reached once
the connection in the
Front area has been
established;
à p. 3 - 38.
• (A) – Take the pins (2) out of the retaining
strut (1).
• (B) – Fasten the retaining strut (1) to the
main boom with a pin (2).
• Fasten the retaining strut (1) to section 1
with the other pin (2).
• Secure the pins with the retaining pins.
