7.2 Setting the SLI
7 - 2 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008
7.2 Setting the SLI
Both hoists must be switched on for the SLI for two-hook operation.
H
Enter the reeving for both hoists at the beginning. The values are stored and
called up directly when switching hoists. As a result, it is not necessary to
make an entry later on during operation.

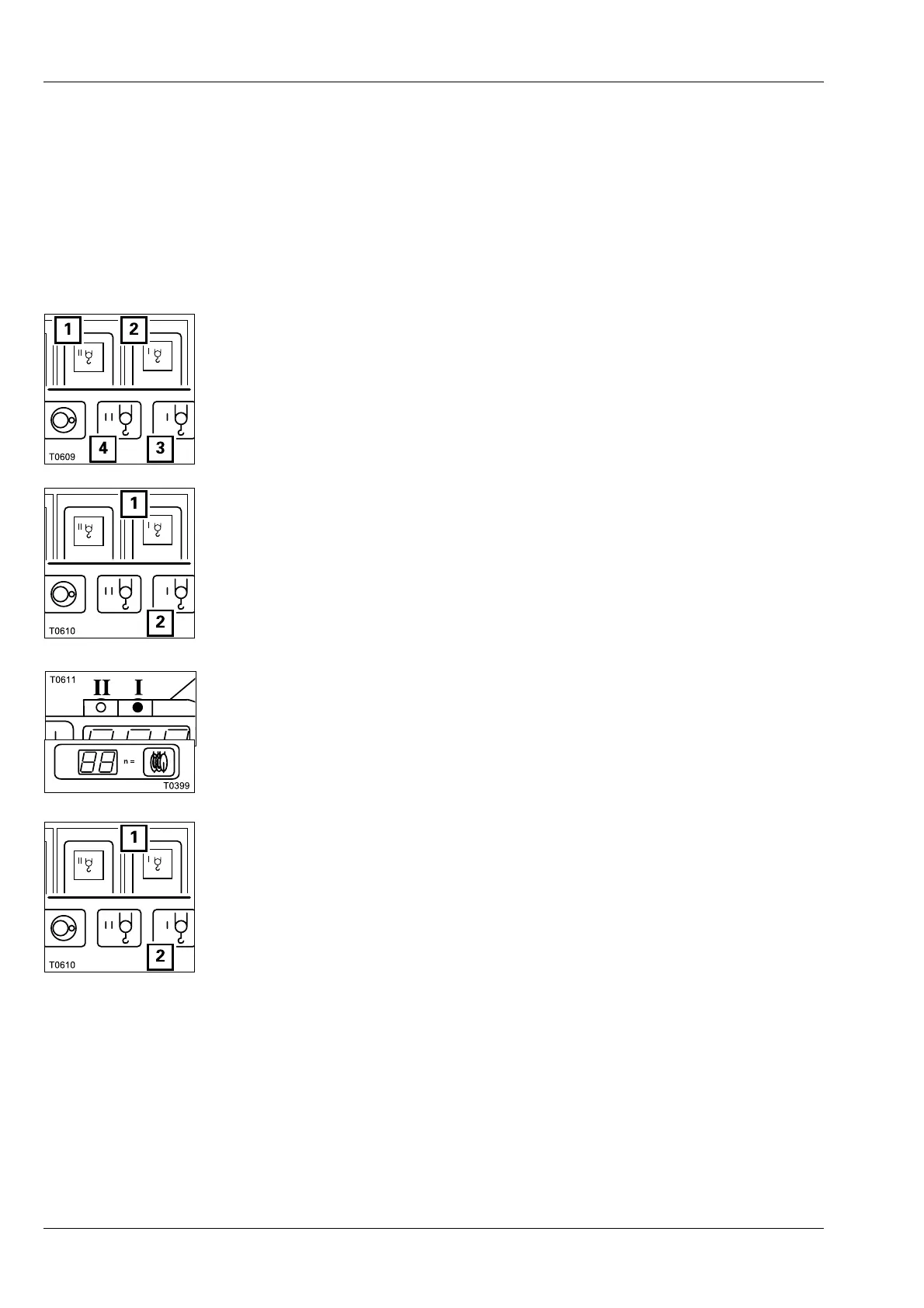

Switching off both hoists
• Press the buttons (1) and (2) one after the other.
– The lights in the buttons (1) and (2) shine weakly.
– The symbol (3) is red if the main hoist is switched off.
– The symbol (4) is red if the auxiliary hoist is switched off.
Switching on the main hoist
• Press the button (1) once.
– The lamp in the button (1) shines brightly.
– The symbol (2) is green if the main hoist is switched on.
Of the
Hoists indicator lamps, lamp I for the main hoist goes on.
• Enter the number of reeved ropes of the main hoist rope on the main
boom on the
Reeving display.
Switching off the main hoist
• Press the button (1) once.
– The lamp in the button (1) shines dimly.
– The symbol (2) is red if the main hoist is switched off.
Now the reeving for the main hoist has been stored and you can switch to
the auxiliary hoist.
