Swing-away lattice
3.3 Rigging work checklists
Lattice extension operating instructions 3 112 441 en 3 - 11
GMK 4100/4100-L/5095
11.01.2008

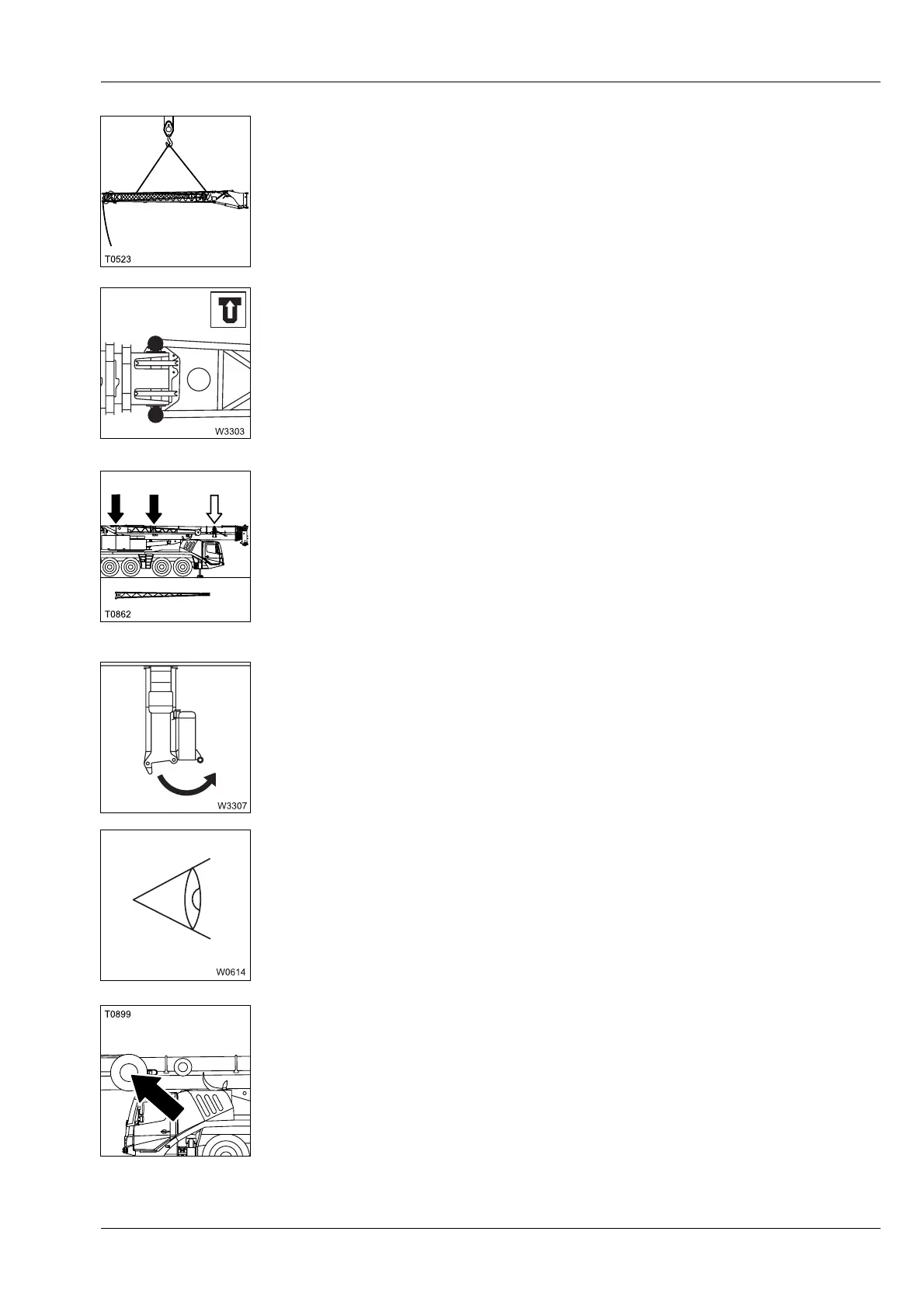

4. Sling the swing-away lattice onto the auxiliary crane and attach the
guide rope to the front of section 1;
à Slinging points, p. 2 - 5.
5. Undo the connection on the right and left;
à Connections on the left and
right-hand side of the main boom head
, p. 3 - 49.
6. If section 2 is still to be removed:
– Sling section 2 onto the auxiliary crane;
à Slinging points, p. 2 - 5.
– Move the connection in the
Middle area into the Undo section 2 / main
boom
position; à p. 3 - 43.
– Undo the connection in the
Rear area; à p. 3 - 45.
– Set down section 2 on the separate vehicle.
7. If necessary, fold in the run-up rail;
à p. 3 - 36.
8. Check the transport condition of the swing-away lattice;
à Transport
condition with removed swing-away lattice
, p. 3 - 29.
9. For the derricking swing-away lattice, insert the locking device on the
hose drum;
à p. 3 - 33.
