Swing-away lattice
3.3 Rigging work checklists
Lattice extension operating instructions 3 112 441 en 3 - 13
GMK 4100/4100-L/5095
11.01.2008

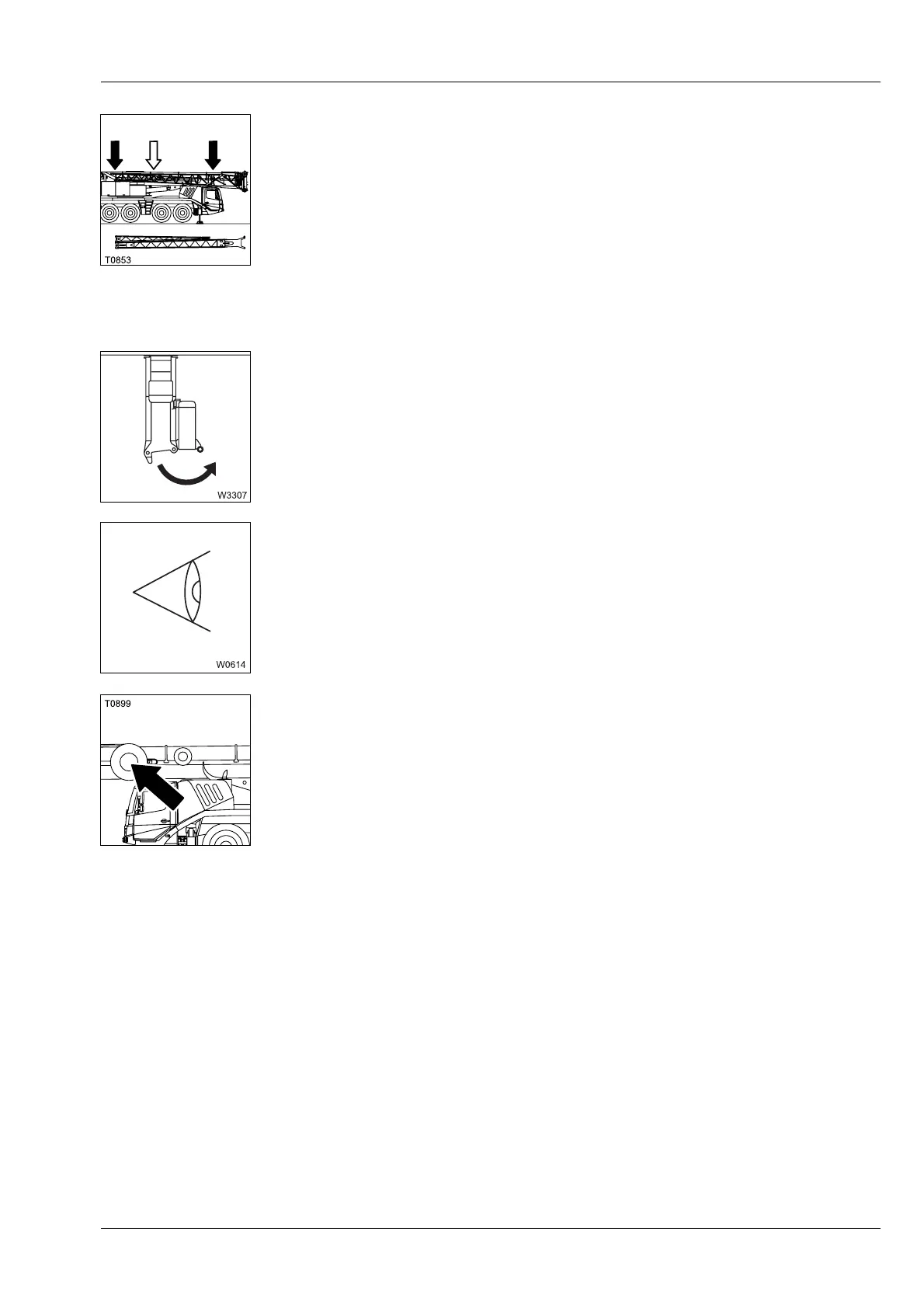

6. If the 17 m (56 ft) swing-away lattice is folded on the side:
– Undo the connection between section 2 and the main boom in the
rear area;
à p. 3 - 45.
– Undo the connection in the
Front area; à p. 3 - 39.
7. Set down the swing-away lattice on the separate vehicle;
à Transport,
p. 2 - 6.
8. If necessary, fold in the run-up rail;
à p. 3 - 36.
9. Check the transport condition of the swing-away lattice;
à Transport
condition with removed swing-away lattice
, p. 3 - 29.
10. For the derricking swing-away lattice, insert the locking device on the
hose drum;
à p. 3 - 33.
