Swing-away lattice
3.3 Rigging work checklists
3 - 20 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008

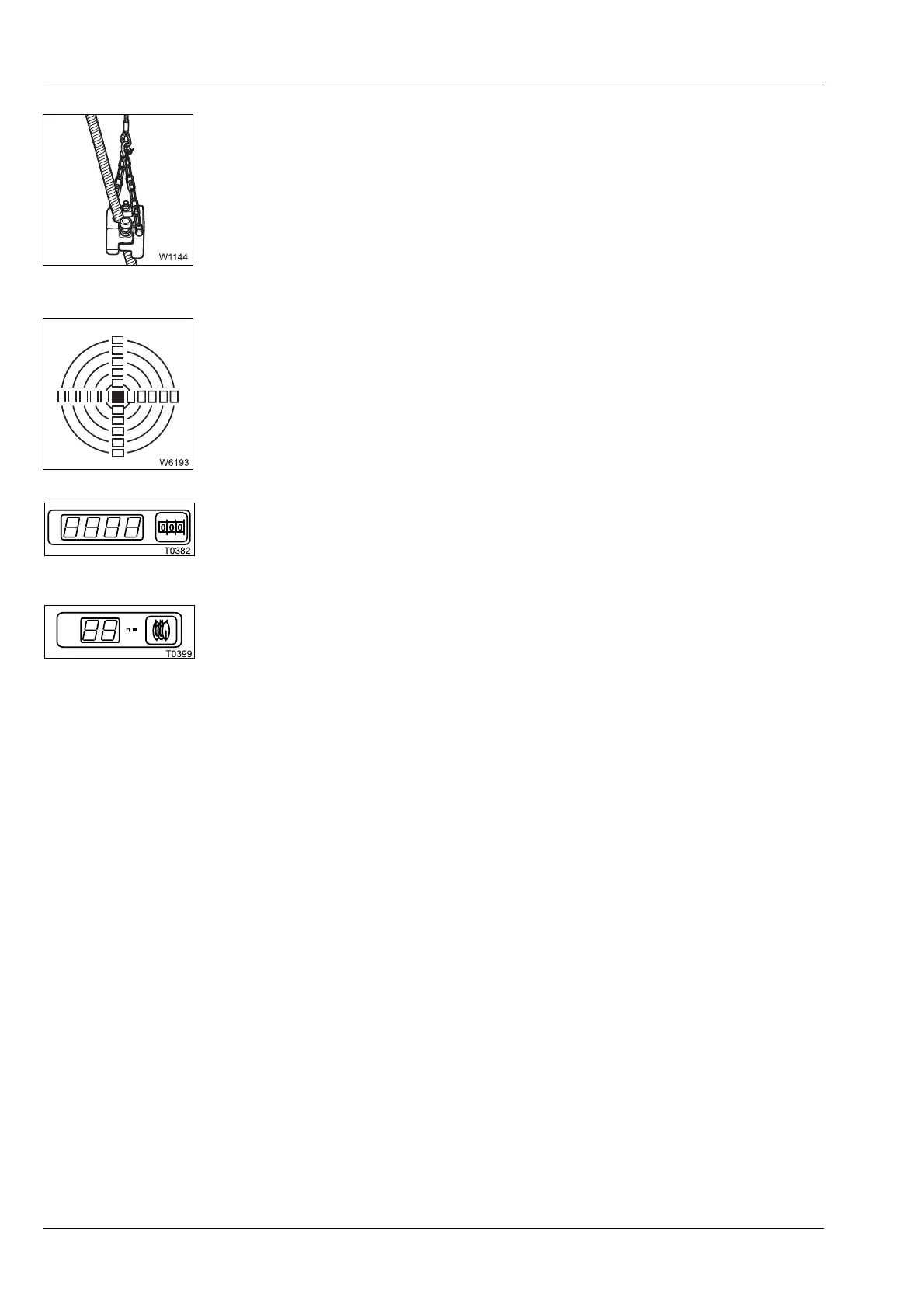

29. Attach the lifting limit switch weight and place it around the hoist rope;
à Operating instructions of the truck crane, Part 2 Superstructure – Rig-
ging work.
30. Check the horizontal alignment of the truck crane and correct it, if nec-
essary.
31. Enter the current rigging mode with the rigged swing-away lattice;
à Setting the SLI, p. 3 - 87.
32. Enter the current reeving;
à Setting the SLI, p. 3 - 87.
Further steps with swing-away lattice:
– Raise the main boom;
à p. 3 - 89.
– Telescope the main boom;
à p. 3 - 90.
