Manitowoc GROVE GMK 5095 User Manual

Swing-away lattice
3.3 Rigging work checklists
Lattice extension operating instructions 3 112 441 en 3 - 19
GMK 4100/4100-L/5095
11.01.2008

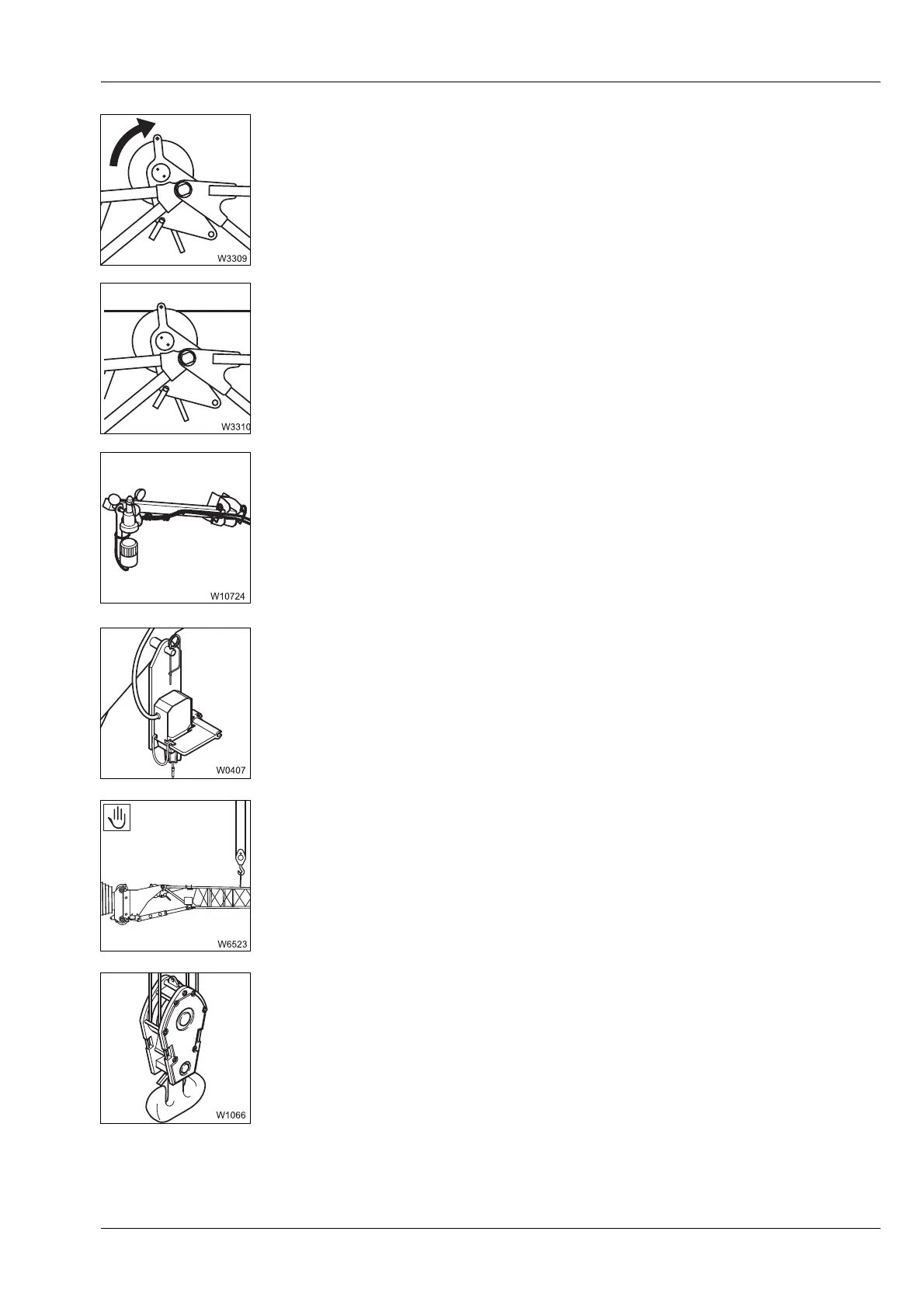

23. Fold out the deflection sheave at the front and rear; à p. 3 - 64.
24. Place the hoist rope on the swing-away lattice;
à p. 3 - 66.
25. Install the anemometer and establish an electrical connection for the air
traffic control light if necessary;
à Installing / removing the anemometer, p. 3 - 71,
à Air traffic control light – electrical connection, p. 3 - 73.
26. Install the lifting limit switch;
à Installing / removing the lifting limit
switch
, p. 3 - 68.
27. With inclinable swing-away lattice, adjust the angle, if necessary;
à Setting the angle – with an auxiliary crane, p. 3 - 79.
à Setting the angle – without auxiliary crane, p. 3 - 80.
28. Reeve the hoist rope on the hook block;
à Possible reeving methods at
the swing-away lattice
, p. 3 - 67.
