Swing-away lattice
3.3 Rigging work checklists
3 - 18 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008

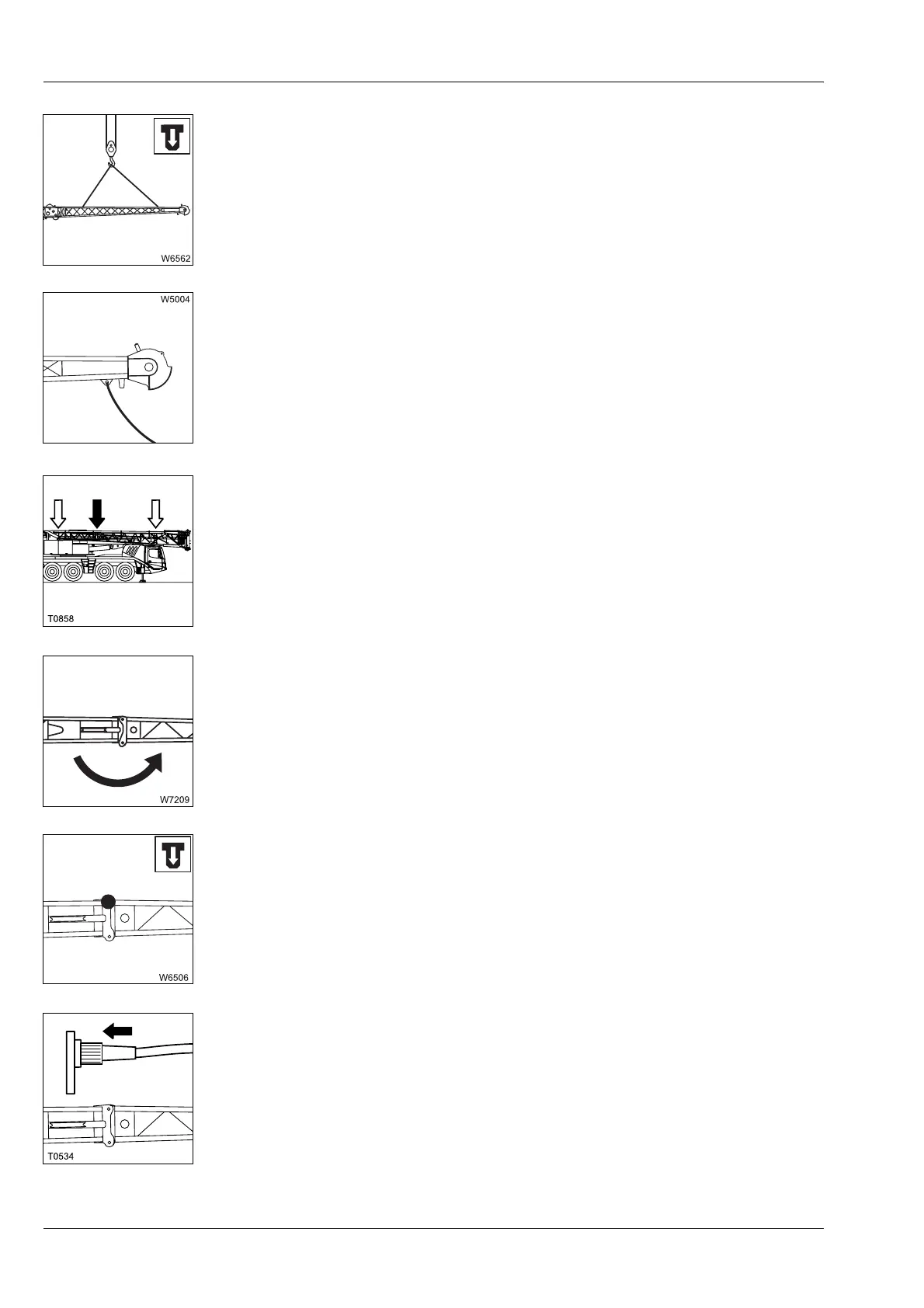

17. If section 2 is transported on a separate vehicle, install section 2 before
section 1:
– Sling section 2;
Slinging points, S. 2 - 5.
– Lift section 2 in front of section 1 and pin it there;
à p. 3 - 59.
After installing section 2, continue with point 23.
18. If section 2 is folded onto section 1, fasten the guide rope to the head of
section 2.
19. Move the connection in the
Middle area into the On section 1 position;
à p. 3 - 43.
20. Swing section 2 in front of section 1;
à When rigging – section 2,
p. 3 - 57.
21. Establish the connection on the left between section 2 and section 1;
à Establishing / undoing connections at the swing-away lattice, p. 3 - 59.
22. Establish the electrical connection;
à p. 3 - 63.
