Model: LC5296-XP-AT/LC5296-XP/LC5296-XP-I
Doc. Ref. no.:- m61D/om/101
Issue no. 17
User’s Manual Page 10 of 56
3. PHYSICAL SPECIFICATIONS & MOUNTING DETAILS
3.1 External Dimensions
Unit: mm
Mounting method: Wall Mounting
Weight:For IIA,IIB& IIC Enclosure:Approx. 3 Kg.
For IIA & IIB Enclosure: Approx. 2.6 Kg.
Type of Protections: Flameproof (Explosion Proof) EX-d
Area Classification: Hazardous Location of Zone 1 & 2
Gas Groups: IIA, IIB&IIC
IP Protection: IP 66
Apparatus Standard: IS 2148-2004 & IS-13346-2004
Material: Aluminum Alloy LM-6.
Finish: Anti corrosive epoxy light grey shade- 631 of IS:5
Hardware: High tensile zinc passivated / stainless steel (ss-304)
Mountings: Wall mountings with the help of 4 NOS bolts of size M8
Cable entry size/no: ¾” ET – 5 NOS
Plug Details: 3 Blind Plug & 2 Cable gland ¾”ET

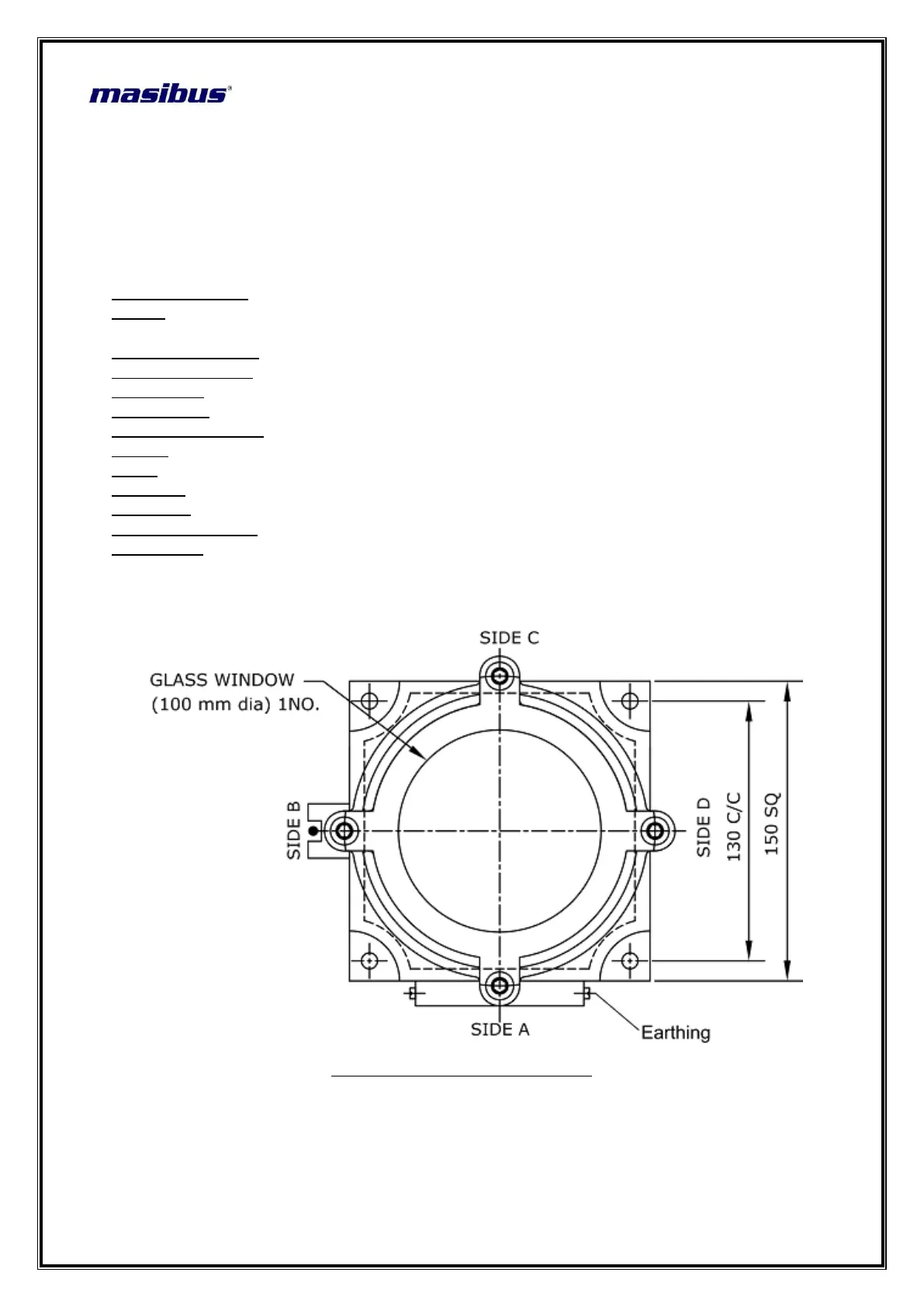

1. Mechanical Details for IIA & IIB Enclosure
TOP FRONTVIEW OF DEVICE
