Masibus LC5296-XP User Manual

Model: LC5296-XP-AT/LC5296-XP/LC5296-XP-I
Doc. Ref. no.:- m61D/om/101
Issue no. 17
User’s Manual Page 16 of 56

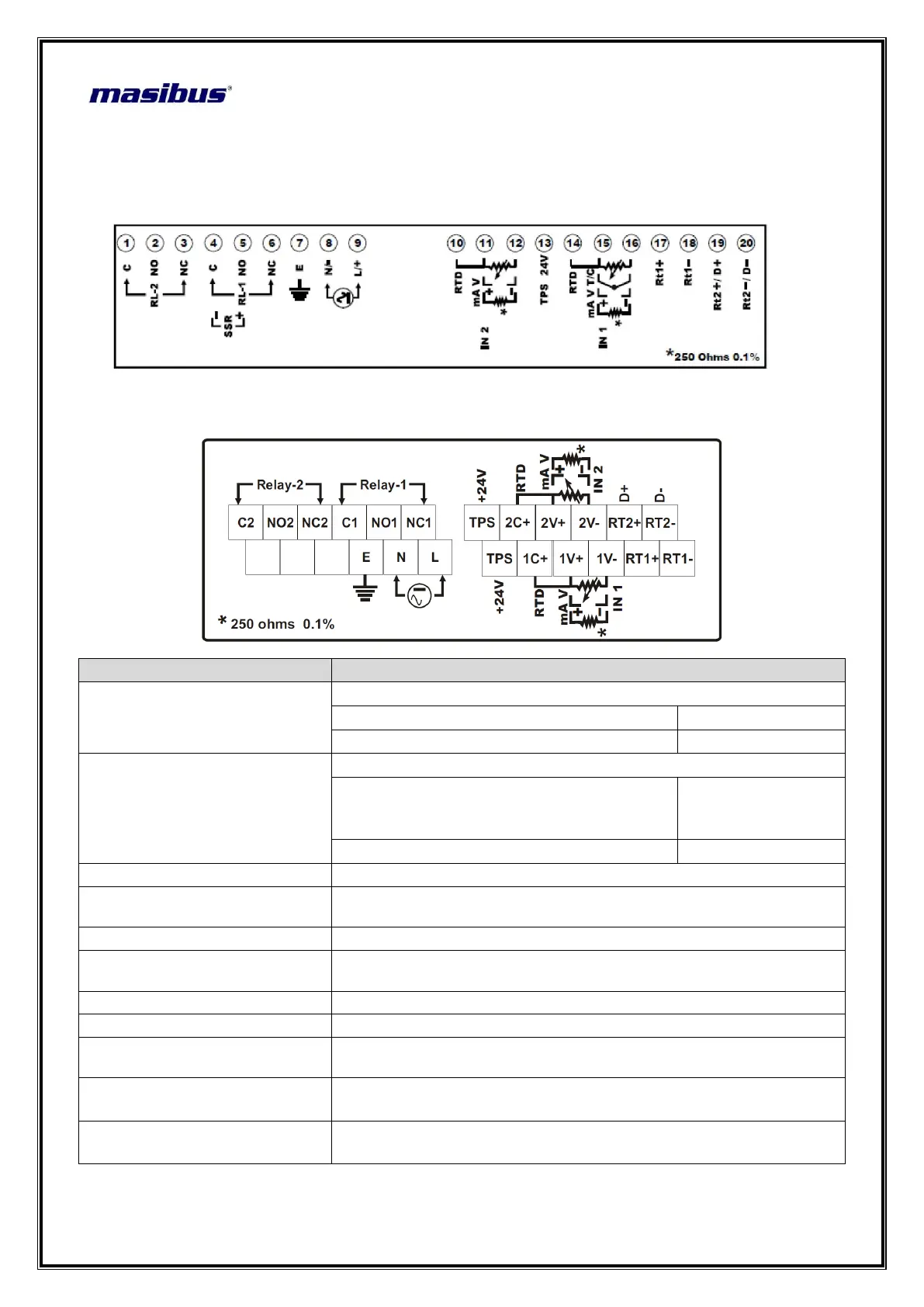

4. TERMINAL CONNECTIONS
4.1 Single compartment enclosure
4.2 Dual compartment enclosure
Terminal No.
Description
1 (C2)
2 (NO2)
3 (NC2)
 For Relay-2 potential free Contacts (Use 230V -2A load)
 Alarm-2 o/p.
LC5296-XP-AT
 ON-OFF control
LC5296-XP
4 (C1)
5 (NO1)
6 (NC1)
 For Relay-1 potential free Contacts (Use 230V -2A load)
 PID / On-Off Control o/p.
 Alarm-1 o/p, if output type is Linear.
 Terminal 4,5:- SSR Pulse o/p.
LC5296-XP-AT
 ON-OFF control
LC5296-XP
7 (Earth)
Earth Connection
8 (N/-)
9 (L/+)
Power Supply Input
10 (C+)
For RTD Input Only (Input-2 - Not available)(Three wire Compensation)
11 (V+)
12 (V-)
For Thermocouple, RTD & Linear Input(Input-2 - Not available)
13 (TPS+)
24VDC Loop power supply
14 (C+)
For RTD Input Only (Input - 1)(Three wire Compensation).
15 (TC+/ V+)
16 (TC- / V-)
For Thermocouple, RTD & Linear Input(Input- 1)
17 (Linear Output+/RTR1+)
18 (Linear Output-/RTR1-)
 For Retransmission-1 output
 Linear type Control Output
19 (D+/ RTR2+)
20 (D- / RTR2-)
 For Retransmission-2 output
 Modbus-RTU Communication Output
