Masibus LC5296-XP User Manual

Model: LC5296-XP-AT/LC5296-XP/LC5296-XP-I
Doc. Ref. no.:- m61D/om/101
Issue no. 17
User’s Manual Page 14 of 56

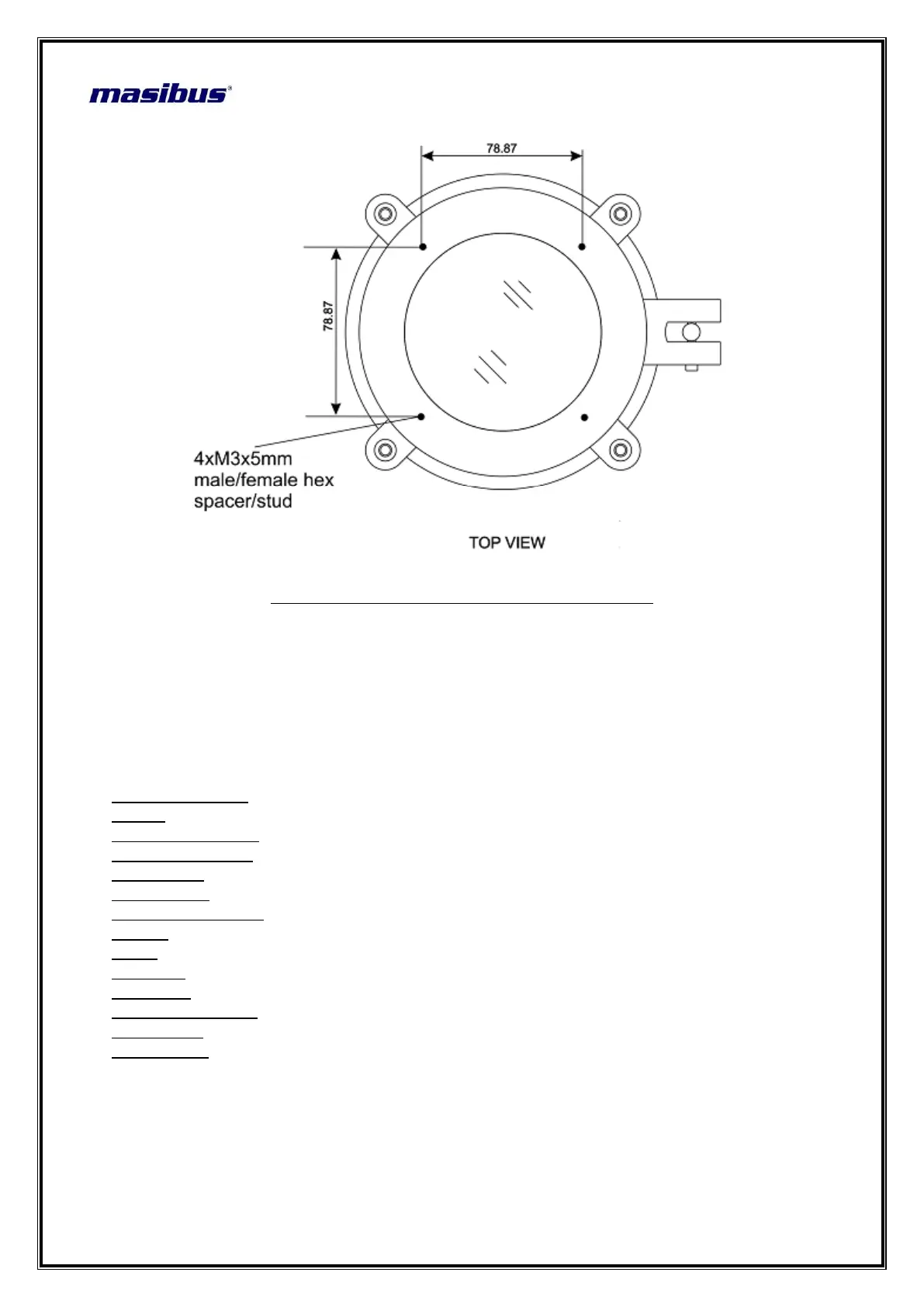

TOP VIEW FOR DISPLAY CARD ASSEMBLY
3.2 External Dimensions for dual compartment enclosure
Unit: mm
Mounting method: Wall Mounting
Weight: Approx. 6Kg.
Type of Protections: Flameproof (Explosion Proof) EX-d
Area Classification: Hazardous Location of Zone 1 & 2
Gas Groups: IIA, IIB
IP Protection: IP 65 As per IS / IEC 60529-2001
Apparatus Standard: IS/IEC 60079-1:2007
Material: Aluminum Alloy LM-6.
Finish: Anti corrosive epoxy light grey shade- 631 of IS:5
Hardware: High tensile zinc passivated / stainless steel (ss-304)
Mountings: Wall mountings with the help of 4 NOS bolts of size M8
Cable entry size/no: ¾” ET – 5 NOS
Plug Details: 3 Blind Plug & 2 Cable gland ¾”ET
Components: Glass window dia. 100 mm. 6mm Thickness -1 no.
