Model: LC5296-XP-AT/LC5296-XP/LC5296-XP-I
Doc. Ref. no.:- m61D/om/101
Issue no. 17
User’s Manual Page 56 of 56

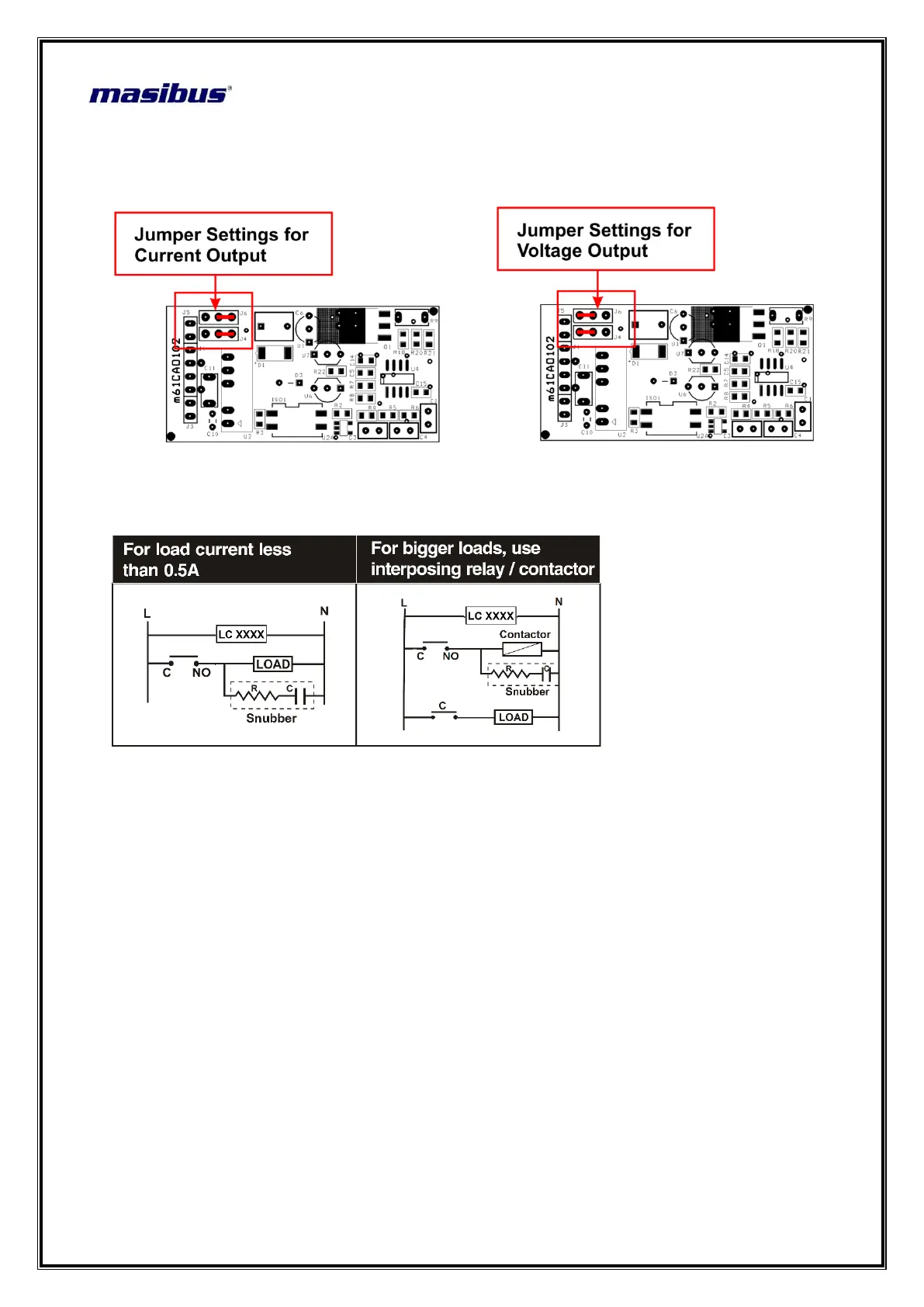

Jumper Setting for Retransmission card: m61Cao102
12.6 Load connection
Electrical precautions during use
Electrical noise generated by switching of inductive loads can create momentary
disruption, erratic display, latch up, data loss or permanent damage to the
instrument. Use of snubber circuits across loads as shown above, is recommended.
