Masimo Rad-8 User Manual

Rad-8 Signal Extraction Pulse Oximeter Operator’s Manual 2-5
2

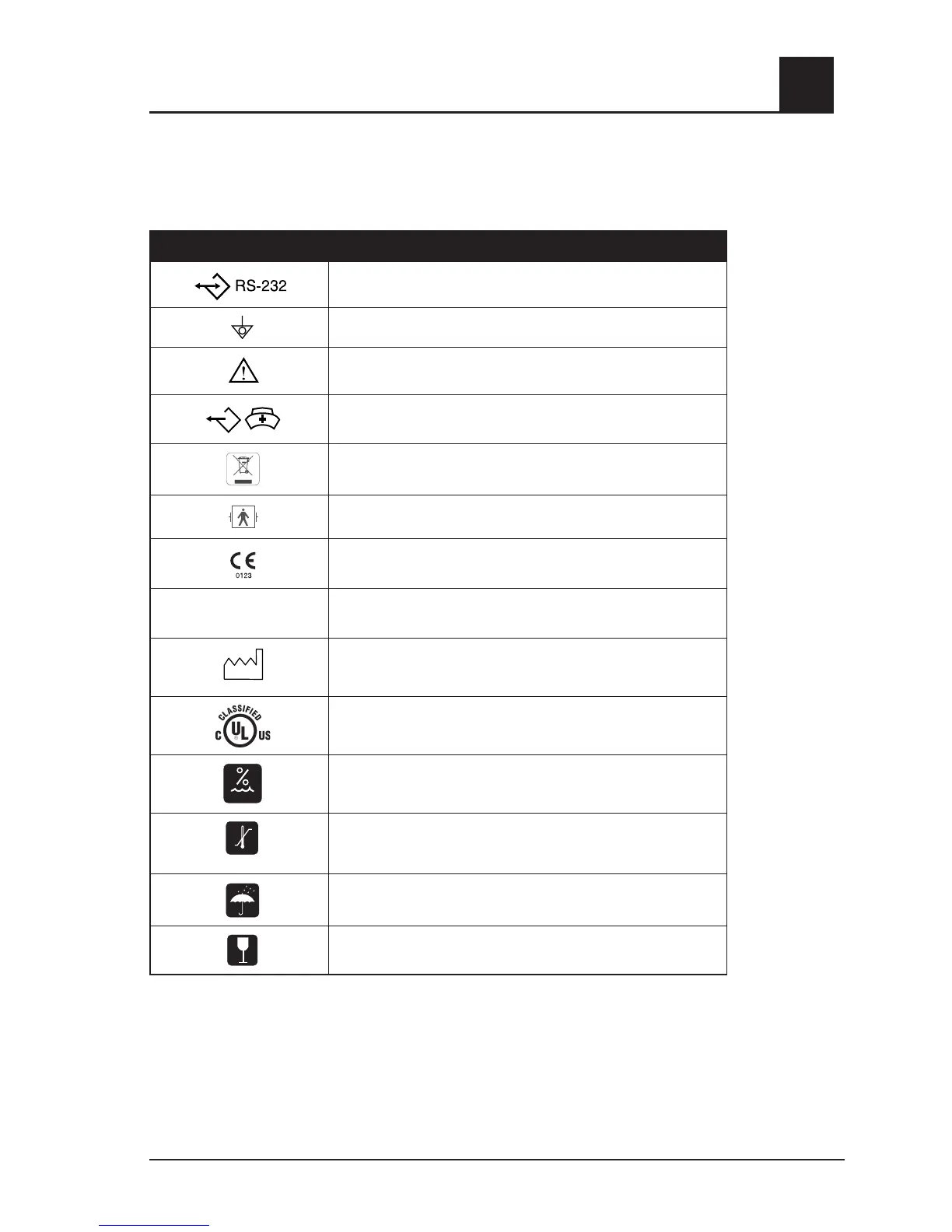

SYMBOLS
The following symbols are found on the pulse oximeter or packaging and are defined
below:
SYMBOLS DEFINITION
RS-232
Equipotential Ground Terminal
Caution, consult accompanying documents
Nurse Call Interface
WEEE compliant
Defibrillation Proof (see front panel)
Mark of Conformity to European Medical Device Directive
93/42/EEC
R
x
Only
Federal law restricts this device to sale by or on the order
of a physician (USA audiences only)
Year of manufacture
Underwriter's Laboratories Inc. certification
5%-95% RH
Storage humidity range: 5% to 95%
-40 C
+70 C
+1060 hPa - +500 hPa
7
95 mmHg - 375 mmHg
Storage temperature range: +70˚C to -40˚C
Storage altitude range: +1600hPa to +500hPa
Keep dry
Fragile/breakable, handle with care
system description

Masimo Rad-8 Specifications

General

Display	LED
Pulse Rate Range	25-240 bpm
Pulse Rate Accuracy	±3 bpm
Trend Time	72 hours
SpO2 Range	0-100%
SpO2 Accuracy	± 2 digits (70-100% SpO2)
Power Supply	AC adapter or rechargeable battery
Perfusion Index (PI) Range	0.02% - 20%
PVI Range	0-100
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Relative Humidity	10-95% non-condensing
Altitude	Up to 15, 000 ft (4, 572 m)
