Masimo Rad-8 User Manual

2-4 Rad-8 Signal Extraction Pulse Oximeter Operator’s Manual
2
system description
Front Panel Controls/Indicators continued
CONTROL / INDICATOR
DESCRIPTION
13
Battery Charge
Level Indicator
Provides a visual representation of battery charge status.
When unplugged, bars illuminate to indicate battery charge.
A low battery status is indicated by a low audible beep
and the first battery bar to the left flashing green.
14
Speaker
Provides audible indication of alarm conditions, pulse
tone and feedback for key-presses.
15
Patient Cable
Connector
Connects to a Masimo Pulse Oximeter sensor or Masimo
Pulse Oximeter Patient Cable with a sensor.

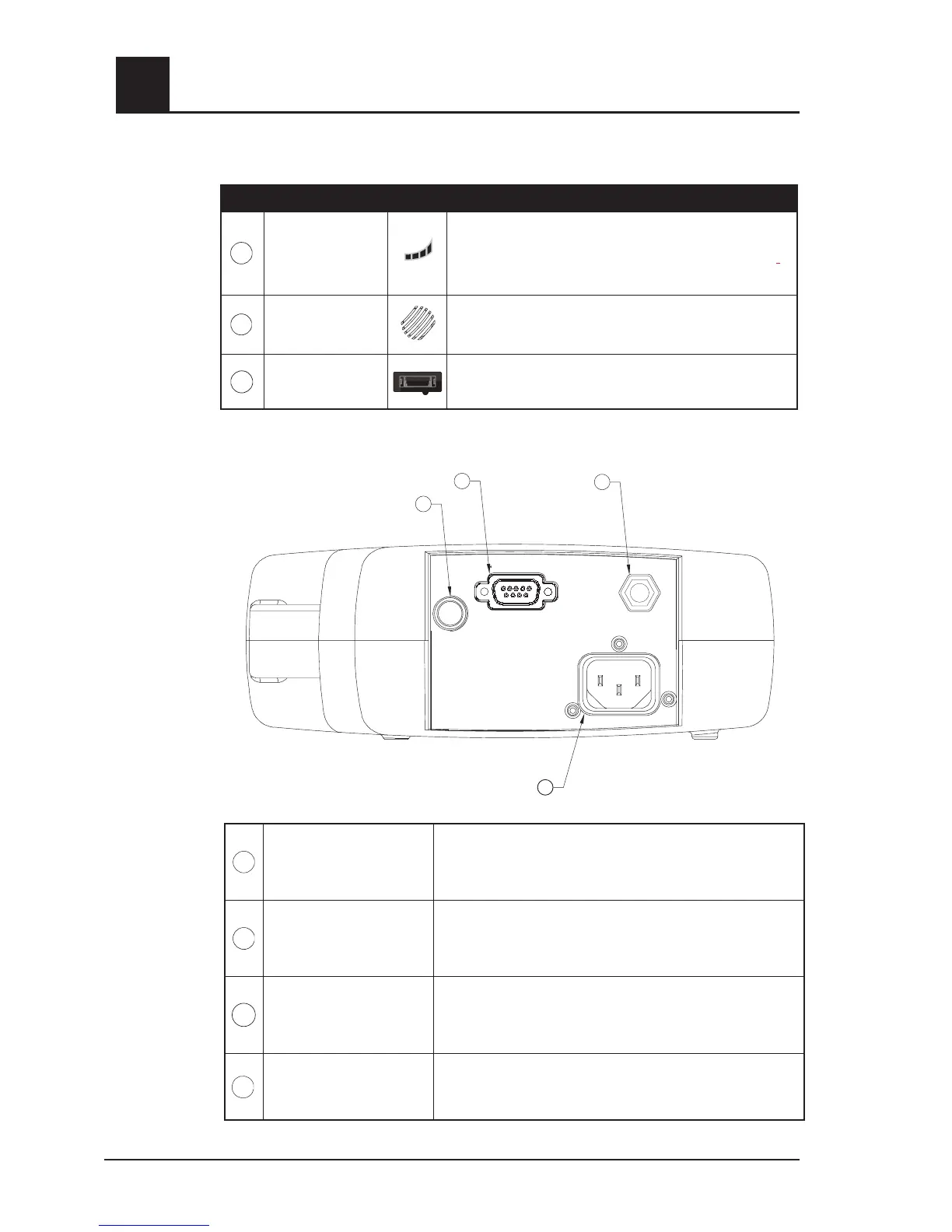

RAD-8 REAR PANEL
1
2
3
4
1
NURSE CALL
CONNECTOR
Use the 1/4” round Connector to interface with a nurse call
system. This is a mono output and should be utilized with a
mono cable. All external device connections to the Nurse
Call Connector must be IEC-60950 compliant.
2
SERIAL OUTPUT
CONNECTOR
Use the Serial Output Connector to connect a serial device,
including a serial printer, to the Rad-8. See Section 7, Serial
Interface Specifications. All external device connections to
the Serial Output Connector must be IEC-60950 compliant.
3
POWER ENTRY
MODULE
The power entry module contains the input connector for
AC power. The AC input provides power to the system from
the AC line. Always connect the pulse oximeter to the main
power for continuous operation and/or battery recharging.
4
EQUIPOTENTIAL
GROUND CONNECTOR
Use the Equipotential Ground Connector for grounding.

Masimo Rad-8 Specifications

General

Display	LED
Pulse Rate Range	25-240 bpm
Pulse Rate Accuracy	±3 bpm
Trend Time	72 hours
SpO2 Range	0-100%
SpO2 Accuracy	± 2 digits (70-100% SpO2)
Power Supply	AC adapter or rechargeable battery
Perfusion Index (PI) Range	0.02% - 20%
PVI Range	0-100
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Relative Humidity	10-95% non-condensing
Altitude	Up to 15, 000 ft (4, 572 m)
