3-47 Masterflex REGLO Digital Pump Drive with Advanced Connectivity
Section 4: Service & Maintenance
Masterflex
Mounting a Ceramic Piston Pump
General preparation and required equipment:
• Conrm you have the correct replacement pump head
• Remove the pump head from its packaging and inspect for any obvious signs of damage
• Phillips screwdriver size 0
1. Attach the coupling:
a. Place the coupling onto the pump-head shaft and push it on as far as it will go. NOTE: e Allen
screw must be centered on the at of the pump-head shaft.
b. Tighten the coupling (2) with the 2.5 mm size Allen key (D).

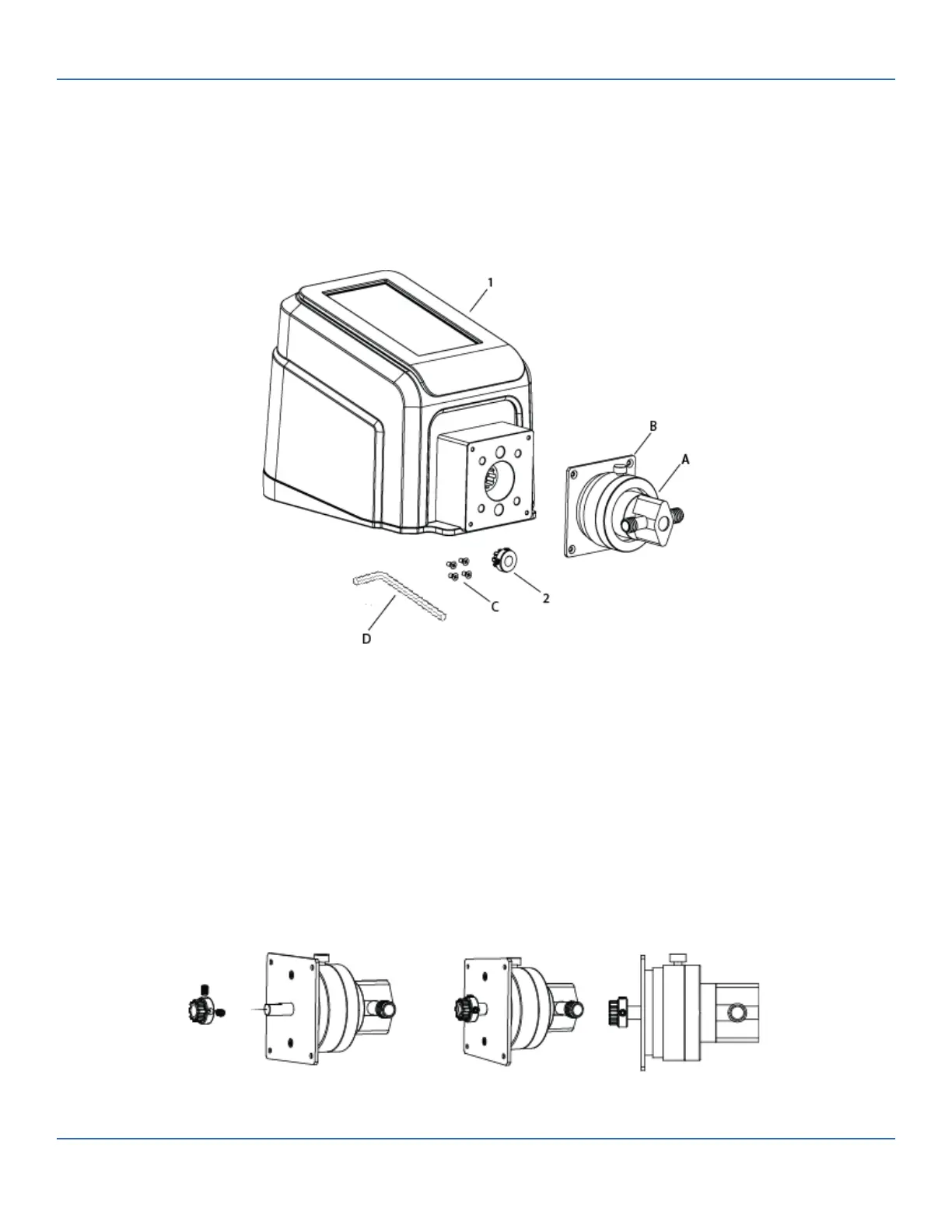

Pump Drive
1. REGLO Pump Drive
2. Coupling
Pump Head Parts
A. Pump Head (RH00, RH0, RH1)
B. Mounting Plate
C. Phillips Flat Head Machine Screws (4 pieces)
D. Allen Key 2.5 mm (3/32")
To Next Page
