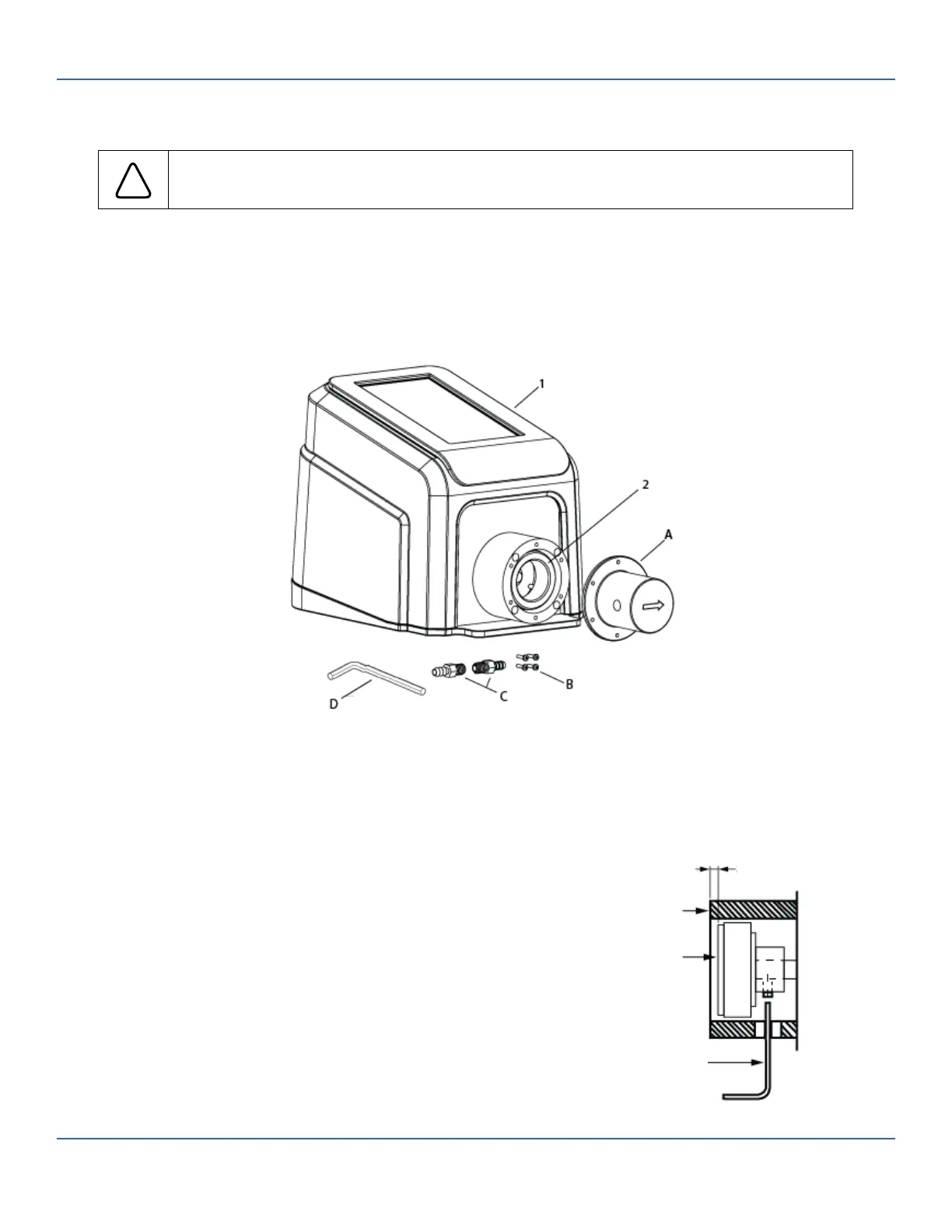

Mounting a Gear Pump
!
CAUTION: Before mounting a new pump head ensure that the magnet is securely tted to
the drive.
General preparation and required equipment:
• Conrm you have the correct replacement pump head
• Remove the pump head from its packaging and inspect for any obvious signs of damage
• Phillips screwdriver size 0
NOTE:
• Ensure there is a gap of approximately 3 mm between the
magnet and the brim of the xing case.
• During operation the back of the coupling magnet must
not touch the housing of the pump drive.
Pump Drive
1. REGLO Pump Drive
2. Coupling Magnet
Pump Head Parts
A. Pump Head
B. Phillips Flat Head Machine Screws (4 pieces)
C. Barb Tubing Adaptor (2 pieces)
D. Allen Key 2.5 mm (3/32")
Allen Key 2.5 mm
(3/32")
3 mm
Case
Coupling
Magnet
To Next Page
