114 CONTENTS

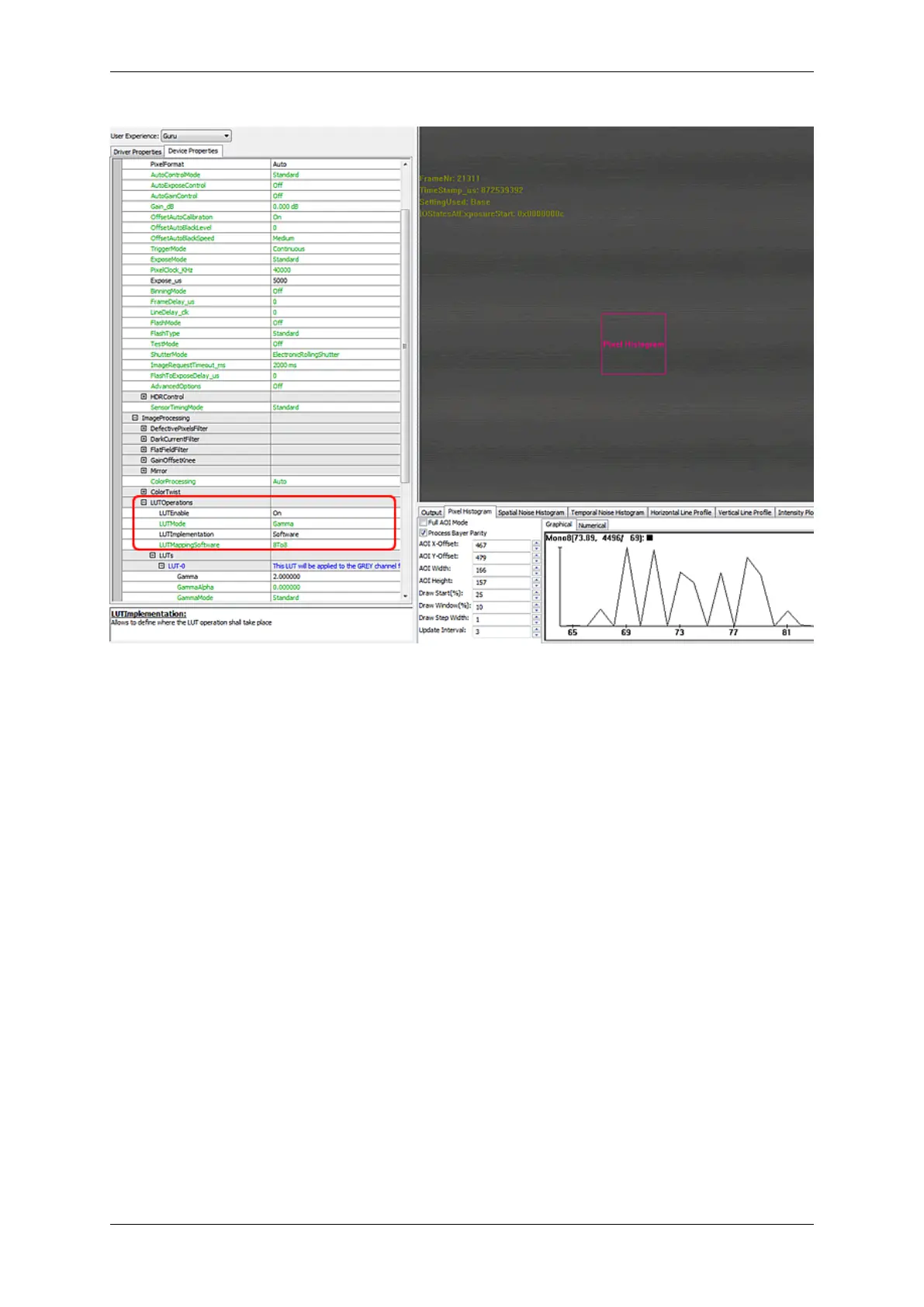

Figure 44: 8to8 software LUT leads to gaps in the histogram using gamma functions (screenshot:
mvBlueFOX-MLC)
If you set "LUTImplementation" to "Hardware" in "Setting -> ImageProcessing -> LUTOperations", the hardware
Look-Up-Table (LUT) will work with 10 bit data inside the camera and converts the data to 8 bit for output ("LUT←-
MappingHardware = 10To8"). Now, there will be no gaps in the histogram:
