12.2 How to use the HRTC 125

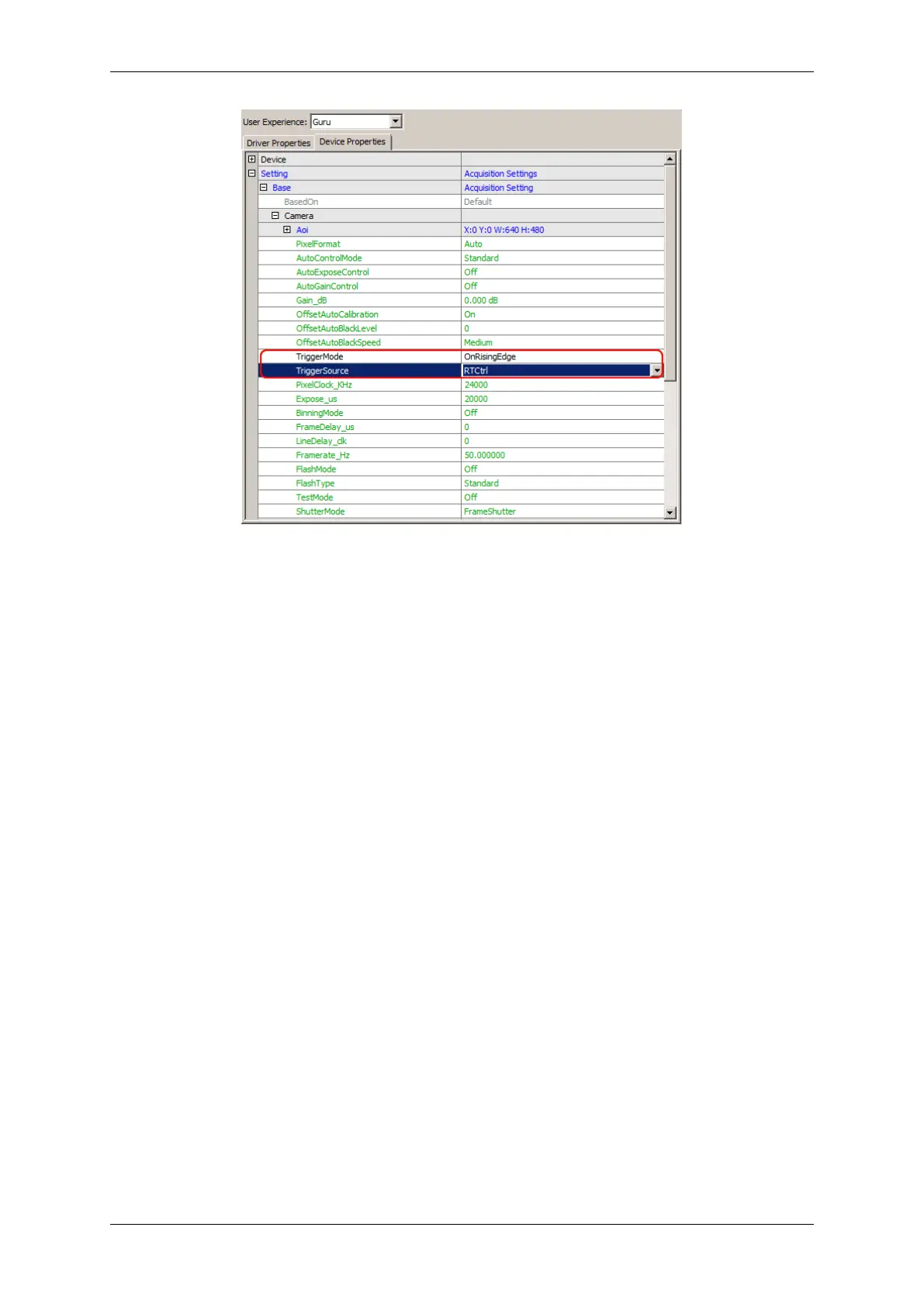

Figure 1: wxPropView - Setting up the HRTC usage
Following trigger modes can be used with HRTC:
• OnLowLevel
• OnHighLevel
• OnFallingEdge
• OnRisingEdge
• OnHighExpose
Further details about the mode are described in the API documentation:
See also
TCameraTriggerMode and TCameraTriggerSource in
• "Enumerations (C developers)"
• "CameraSettingsBlueFOX (C++ developers)"
In the Use cases (p. 139) chapter there are the following HRTC sample:
• "Using single camera" :
– Achieve a defined image frequency (HRTC) (p. 180)
– Delay the external trigger signal (HRTC) (p. 181)
– Creating double acquisitions (HRTC) (p. 183)
– Take two images after one external trigger (HRTC) (p. 183)
– Take two images with different expose times after an external trigger (HRTC) (p. 184)
• "Using multiple cameras" :
– Delay the expose start of the following camera (HRTC) (p. 188)
