176 CONTENTS

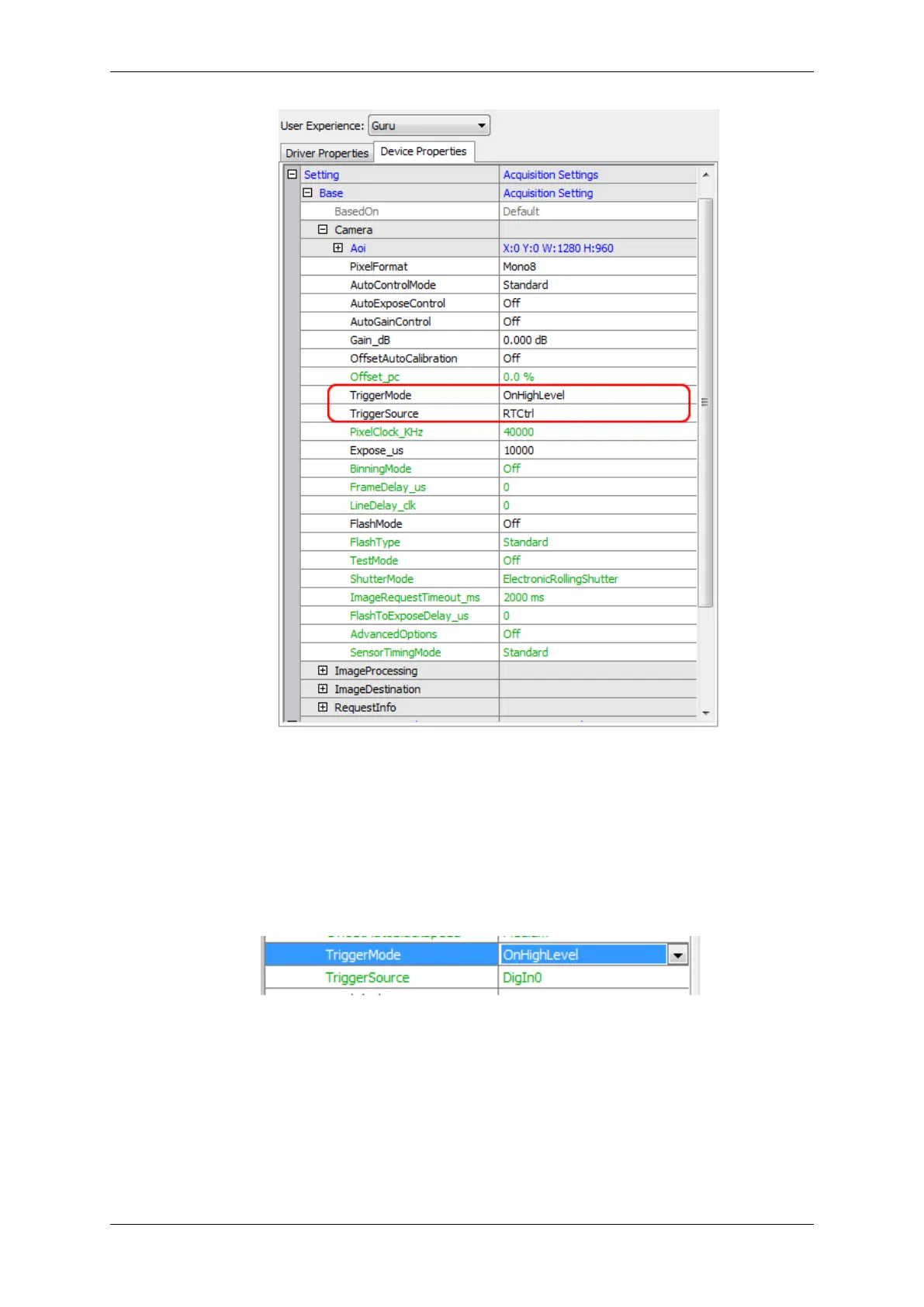

Figure 3: wxPropView - HRTC is the trigger source for the master camera
3. Then, set the slave with wxPropView (p. 77) :
Figure 4: wxPropView - Slave camera with TriggerMode "OnHighLevel" at DigIn 0
19.8.1.1.1 Connection using -UOW versions (opto-isolated inputs and outputs)
The connection of the mvBlueFOX cameras should be like this:
MATRIX VISION GmbH
